Benelli TNT125 Service Manual

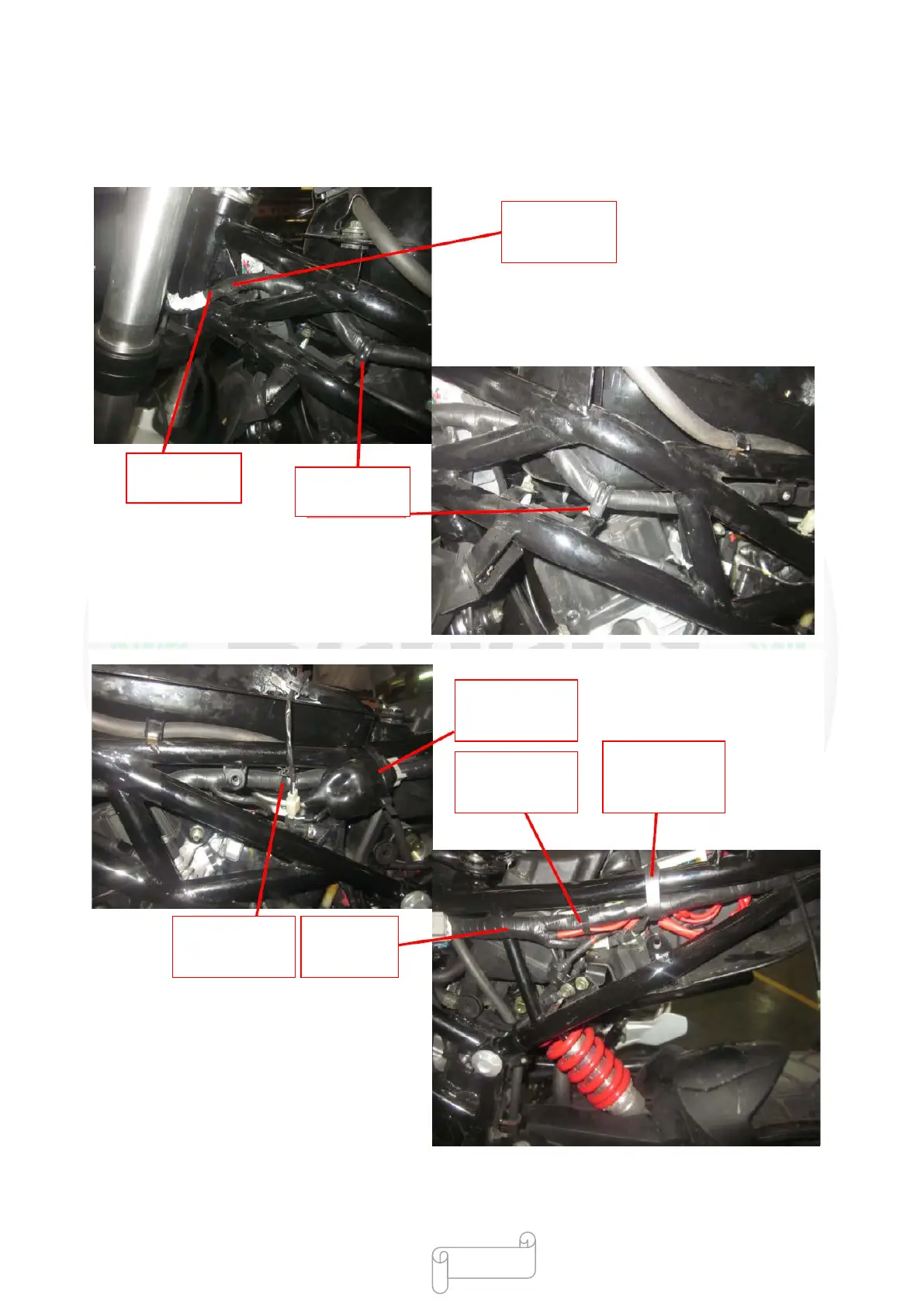

Winding Method of Cable, Wire and Hose
Main Cable
Make main cable pass
through the clamp and
go into
the inside of
frame from left hole
Make main cable pass
through the clamp at
the left of head pipe
Clamp the main cable
using a iron clip
Tie the main cable and
power output connector
at the frame using a
fastener
Tie the main cable and
main cabl r
elay branch
using a fastener
Tie the main cable and
main cable relay branch
at the frame using a
rubber fastener
Tie the main cable at
the frame using the
fastener with a retaining
bracket
Make main cable
go into the outside
of frame from here
- 467 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
