Benelli TNT125 Service Manual

Left Front Pedal

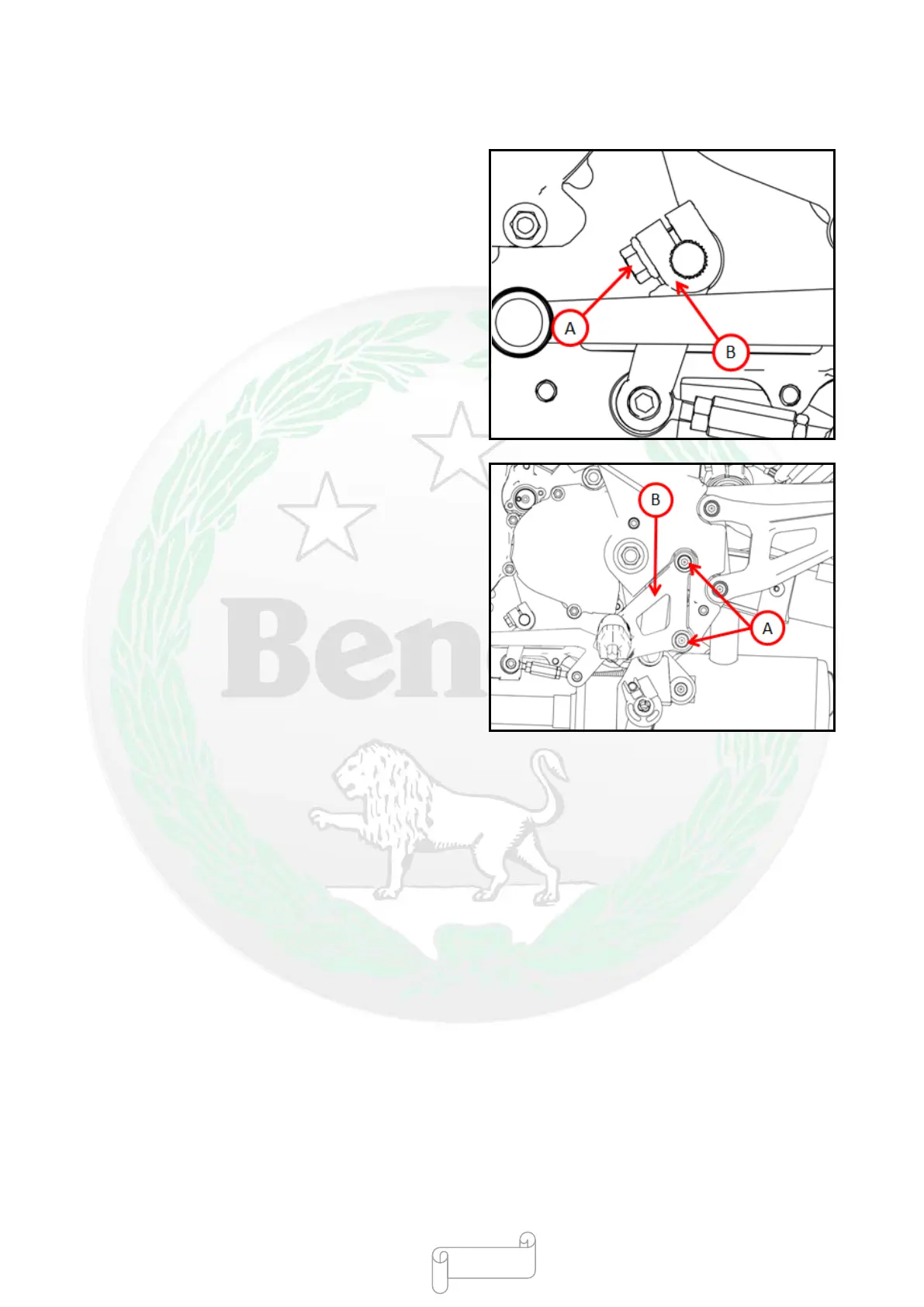

Disassembling Left Front Pedal
●Disassemble:
Screw [A]
Remove shift shaft rocker [B]
●Disassemble:
Screw [A]
Left front pedal bracket [B]
●Disassemble
Left front pedal bracket [A]
Left front pedal [B]
Front pedal spring [C]
Steel ball [D]
Split retainer [E]
Pedal installing plate [F]
Pedal installing bushing [G]
Pedal mounting pin [H]
Screw [J]
Shift component [K]
Mounting bolt [L] of shift pedal component
Shift shaft rocker M]
Shift adjusting rod [N]
Nut [P]
- 399 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
