Benelli TNT125 Service Manual

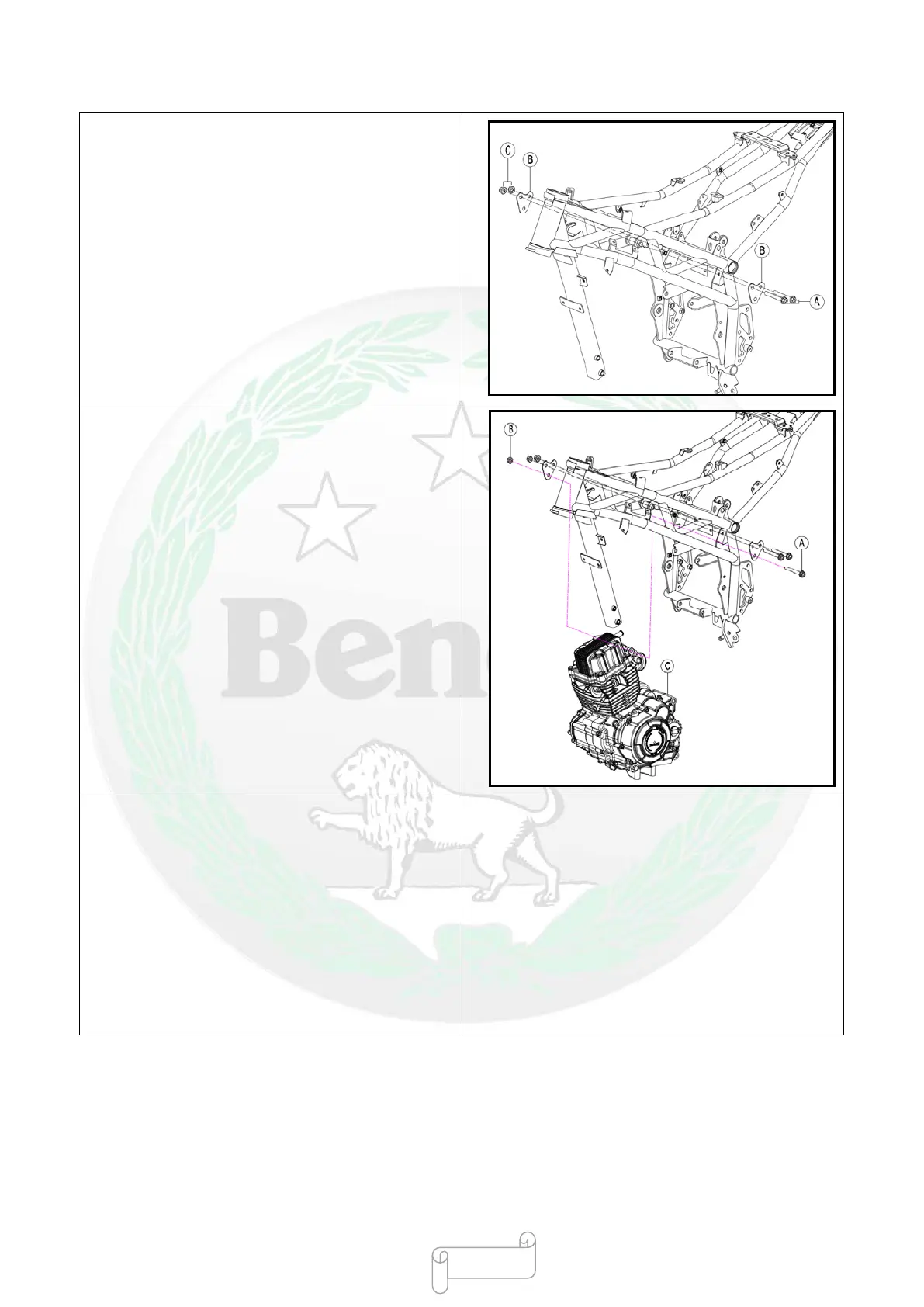

Installing Engine
●Support the engine with a suitable bracket.
●Install:
Mounting bolt at upper hanging plate of engine [A]
Upper hanging plate of engine [B]
Nut [C]
Note
Do not tighten the nut [C].
●Lift engine [C]
●Install:
Uppe mounting bolt of engine [A]
Nut [B]
Engine [C]
Note
Do not tighten the nut [B].
●Install
Rear mounting bolt of engine [A]
Rear mounting nut of engine [B]
Front mounting bolt of engine [C]
Front mounting nut of engine [D]
Mounting bolt at front hanging plate of engine [E]
Mounting nut at front hanging plate of engine [F]
Left front hanging plate of engine [G]
Right front hanging plate of engine [H]
- 415 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
