Benelli TNT125 Service Manual

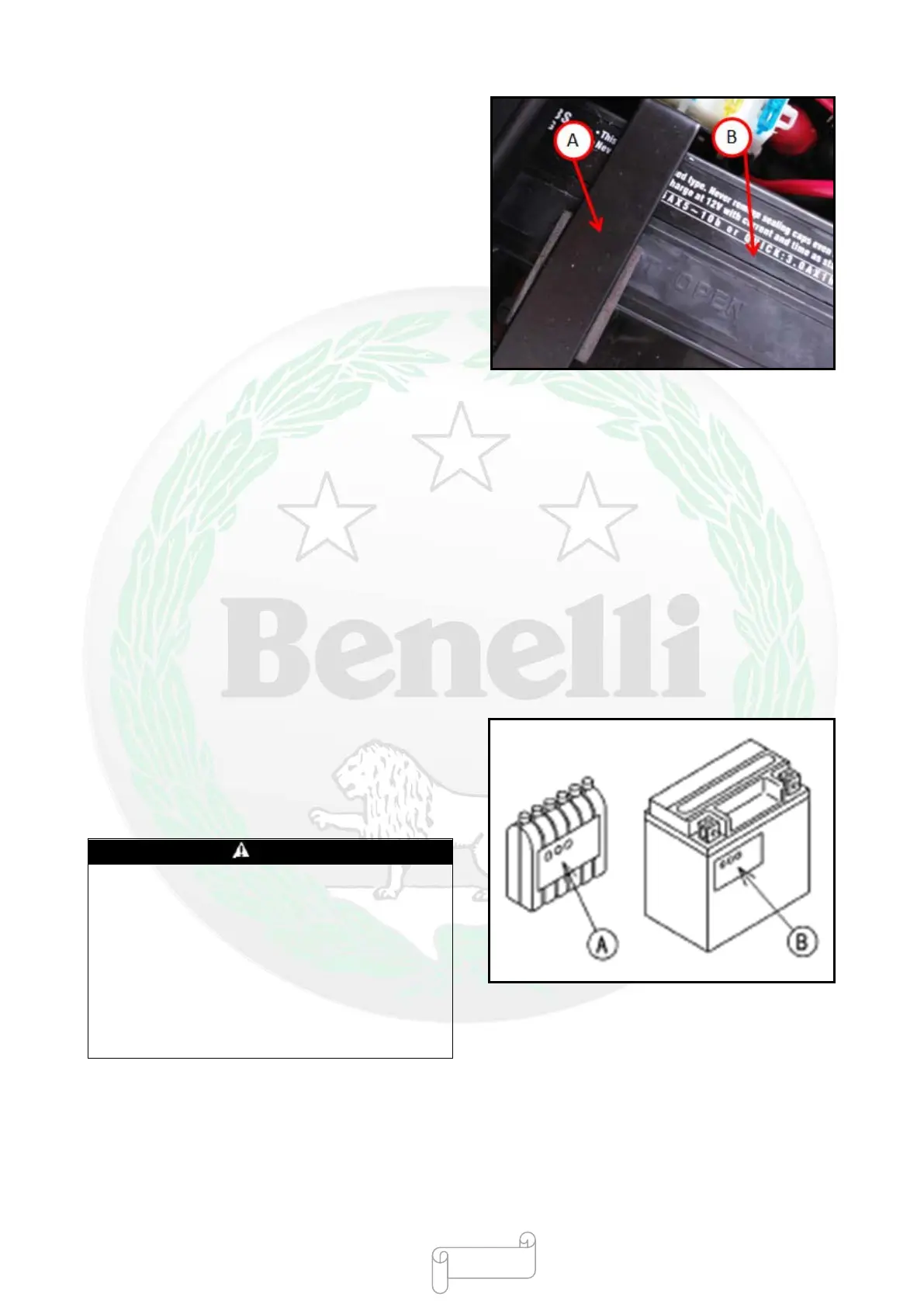

●Remove the storage battery bracket [A]
●
Remove the battery [B] from the battery fixing
bracket
Battery Installation
●Install the battery into the bracket
●Connect the negative (-) cable to the battery
●Apply a thin layer of grease on the terminal to prevent
corrosion
●Connect the position (+) cable to the battery
●Cover the (+) terminal with a red cover [A]
●Install the battery bracket on the battery
●Connect the connector
●Connect the negative electrode (-) cable to the frame
●Install:
Upper cover of air filter
Seat cushion
Battery Activation
●Filling Electrolyte
○Make sure that the model [A] marked on the
electrolyte bottle matches with the model [B] of the
battery. These models must be the same.
Storage battery model: YTX7L-BS
Warning
Make sure to use the electrolyte of the model
same as that marked on the storage battery,
because the volume and density of used
electrolyte are different if the storage battery
models are different
. This is to prevent that the
storage battery life is shortened and the storage
battery performance is reduced due to filling too
much electrolyte.
- 427 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
