Benelli TNT125 Service Manual

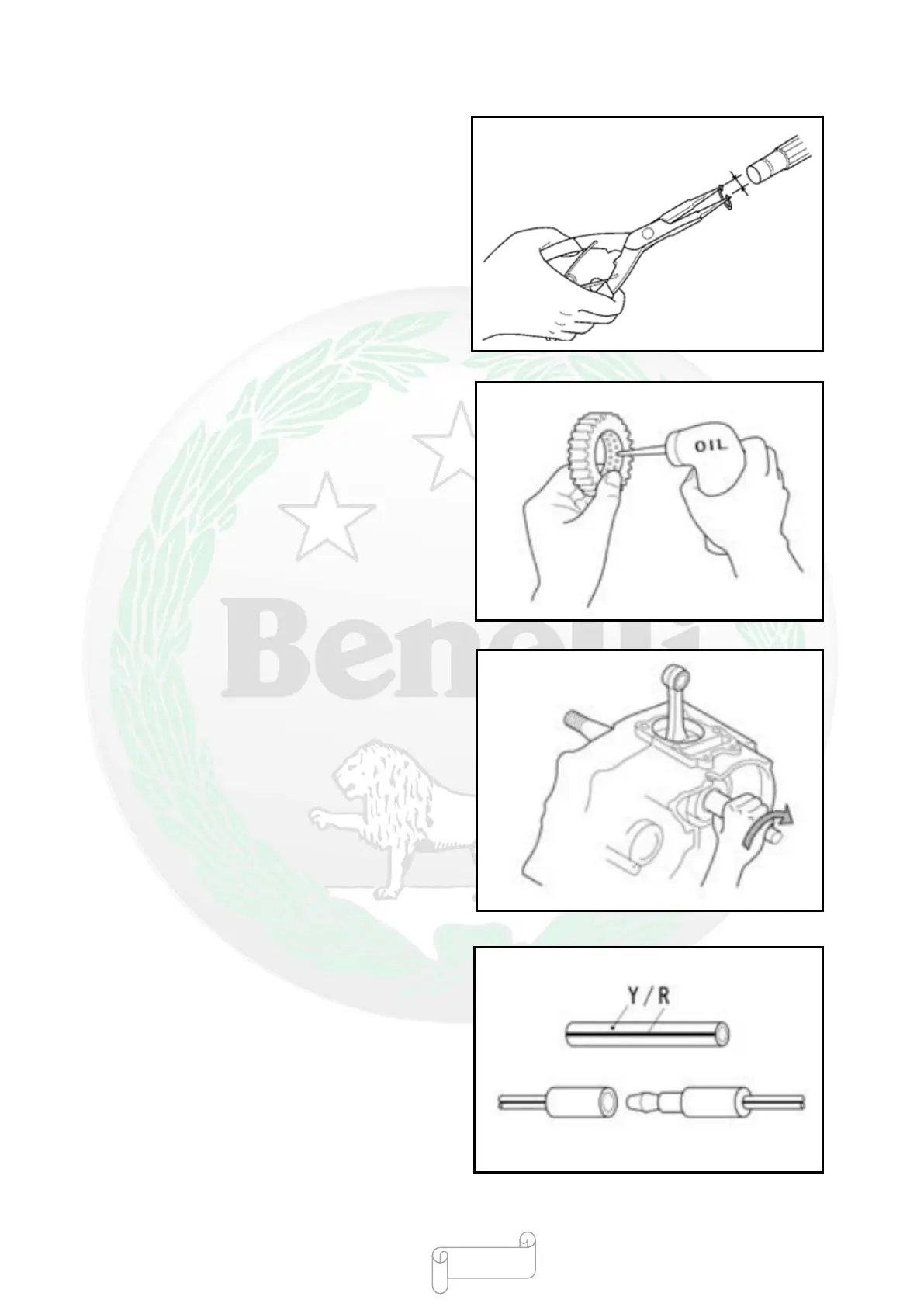

Circlip and Cotter Pin
Replace the removed circlip or cotter pin with a
new one. In order to prevent deformation, the opening
of circlip or cotter pin cannot be too large during
installation.
Lubrication
In order to minimize the abrasion during
running-
in, the lubricant must be applied to the
rotating parts or sliding parts. The appropriate amount
of lubricant or grease shall be injected in accordance
with the specifications, and this Manual will give the
various lubrication points.
Rotation Direction of Engine
When the crankshaft is rotated by hands, the
misjudgement of relevant clearance adjustment will be
caused if the rotation direction is wrong. So please
rotate the crankshaft in the positive direction
(clockwise direction from the output).
Wire
Dual-color wire: the first is the base color, then
the color of stripe. Unless noted otherwise, only the
wires with the same color can be connected.
- 27 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
