Electrical System
Checking Light and Switch
Step 1
●Open the electric door lock.

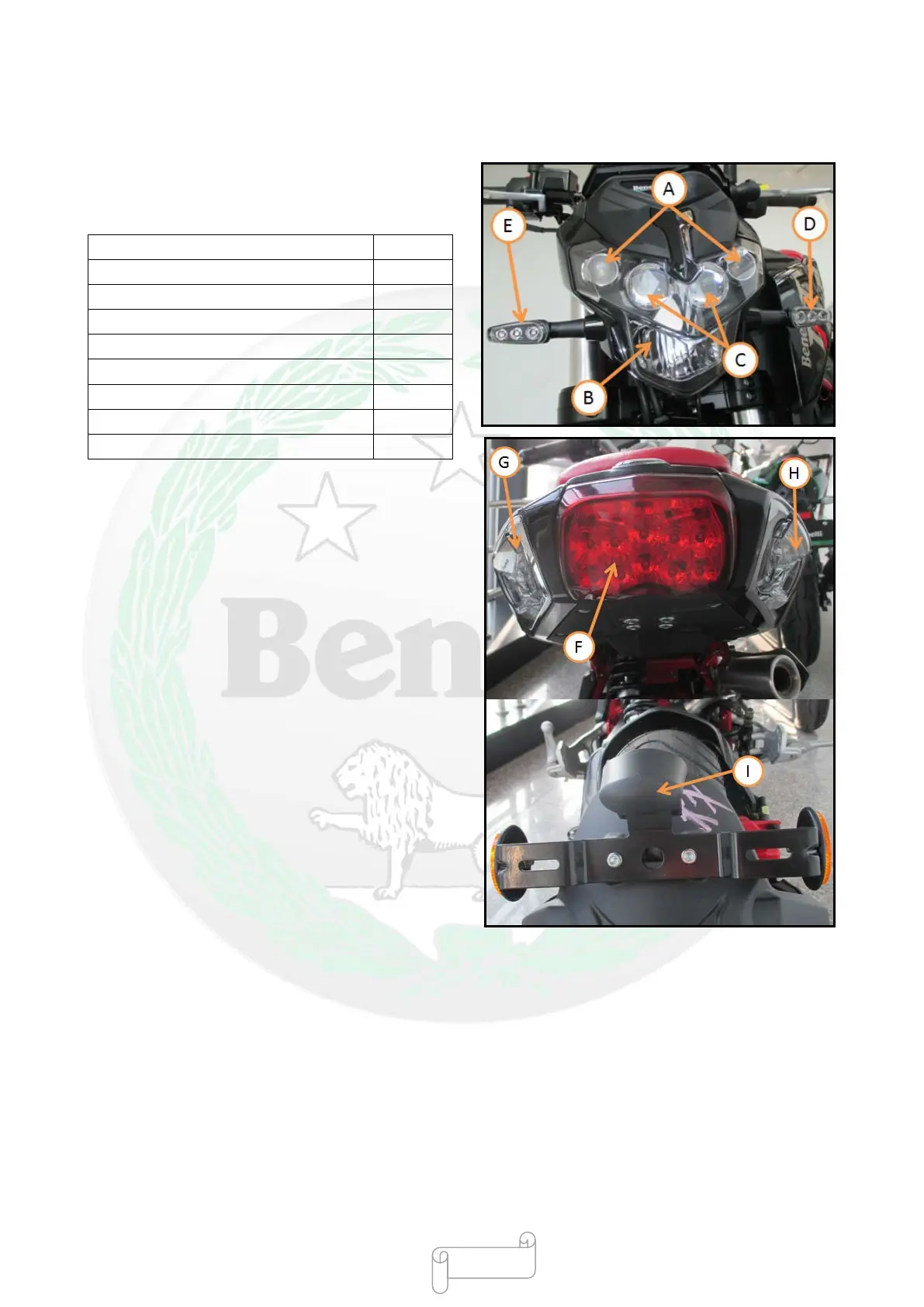

●All motorcycle lights will be on according to the order
shown in the table below.
Position light (LED) [A]
On
High beam light (LED) [B] On
Low beam light (LED) [C] On
Front left turn signal light (LED) [D] On
Front right turn signal light (LED) [E] On
Taillight (LED) [F] On
Rear left turn signal light (LED) [D]
On
Rear right turn signal light (LED) [E]
On
License plate light [I] On
- 82 -
