Gearshift Mechanism

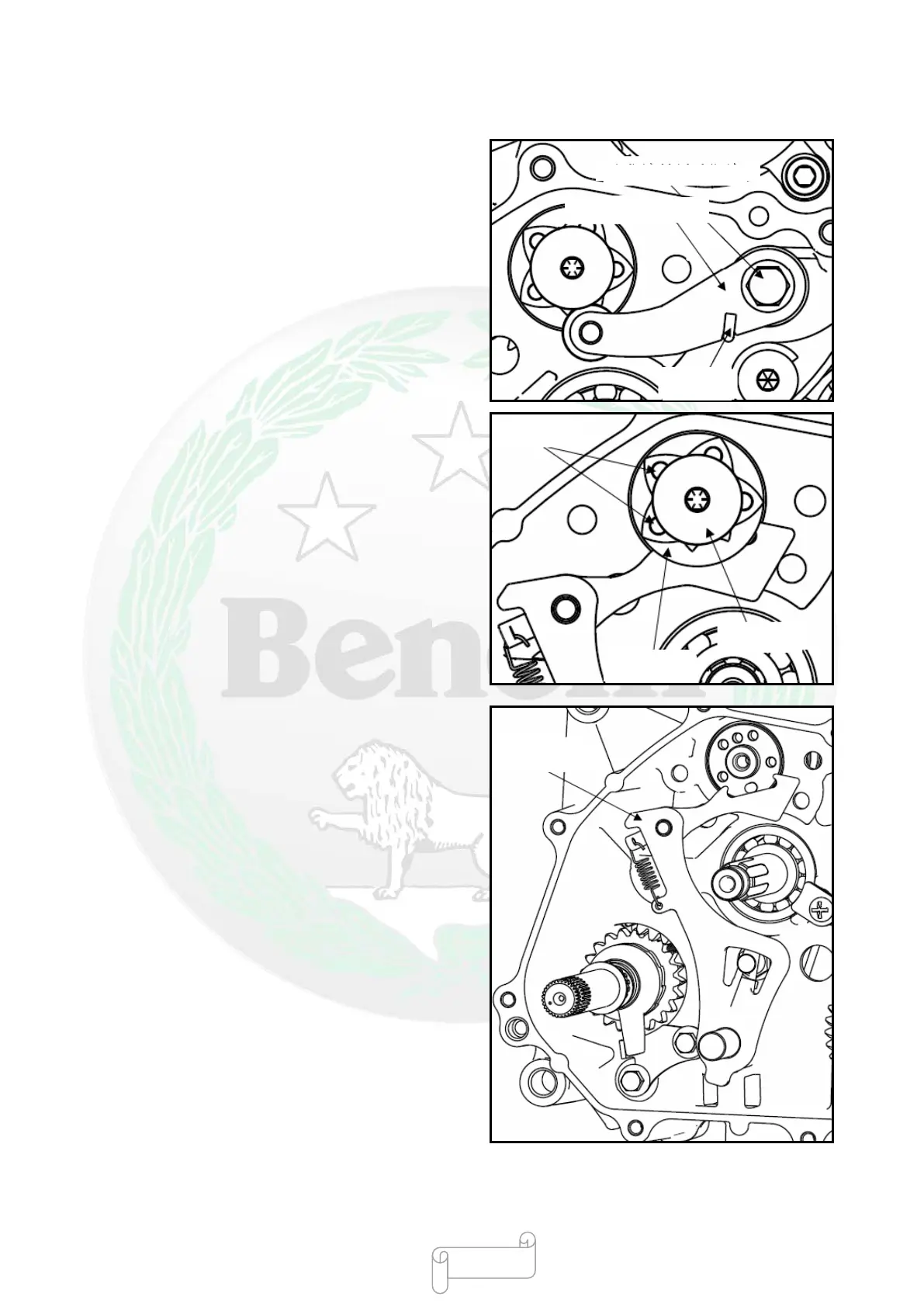

Disassembling gearshift mechanism

●Disassemble the following parts in order:

○ Positioning roller rocker bolt

○ Positioning roller rocker

○ Rocker spring

●Disassemble

○Star wheel bolt

○Gearshift start wheel

○Gearshift pin I

●Pull out the gearshift arm component

Positioning roller rocker bolt

Positioning roller rocker

Rocker

spring

Gearshift pin I

Star wheel bolt

Gearshift start

wheel

Gearshift arm

- 260 -
