Benelli TNT125 Service Manual

Starter Motor
*Note
Before the starter motor
is disassembled,
turn “OFF”
the main switch, remove the bond
strap of battery, and then turn on the power to
see whether the motor runs to confirm safety.
*Note
Do not pat the starter motor shaft or body,
otherwise the motor body may be damaged

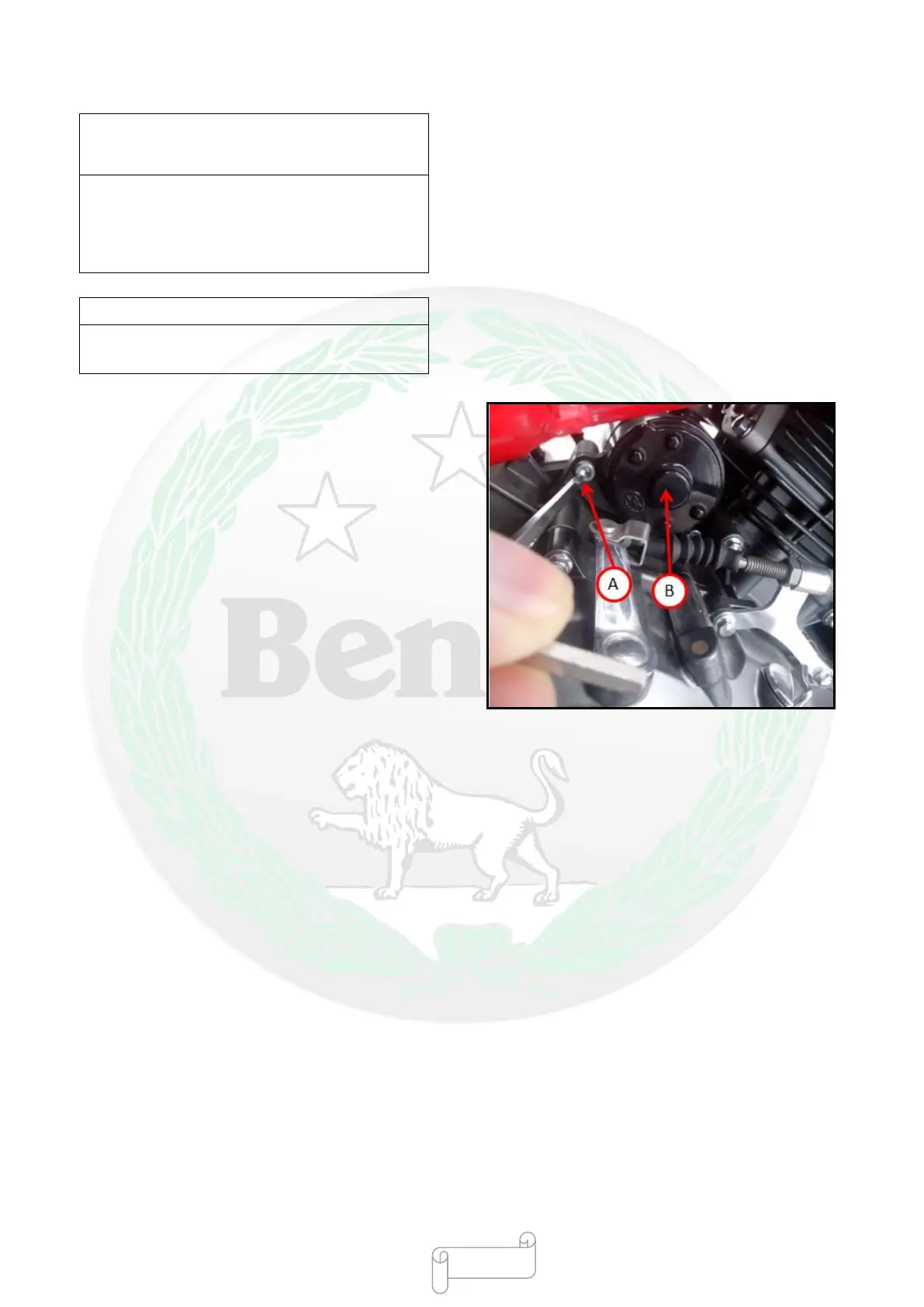

Disassembling Starter Motor
●Disassemble the starter motor cable terminal nut
●Disassemble the starter motor assembling bolt [A]
●Pull out the starter motor [B] from the left side
Checking Starter Motor
●Start the engine according to the following conditions
Condition:
Gear → neutral
Clutch handle → release
Side stand → down
●Turn on the ignition switch and press the start button
○If other start-up system circuits are normal, the starter
motor does not start
○Remove the starter motor and directly connect it to
the positive and negative electrodes of storage battery;
if it can run normally, it is the engine
○Matching problem: if it does not run, the starter motor
is broken.
- 445 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
