Benelli TNT125 Service Manual

Disassembling Rear Master Cylinder

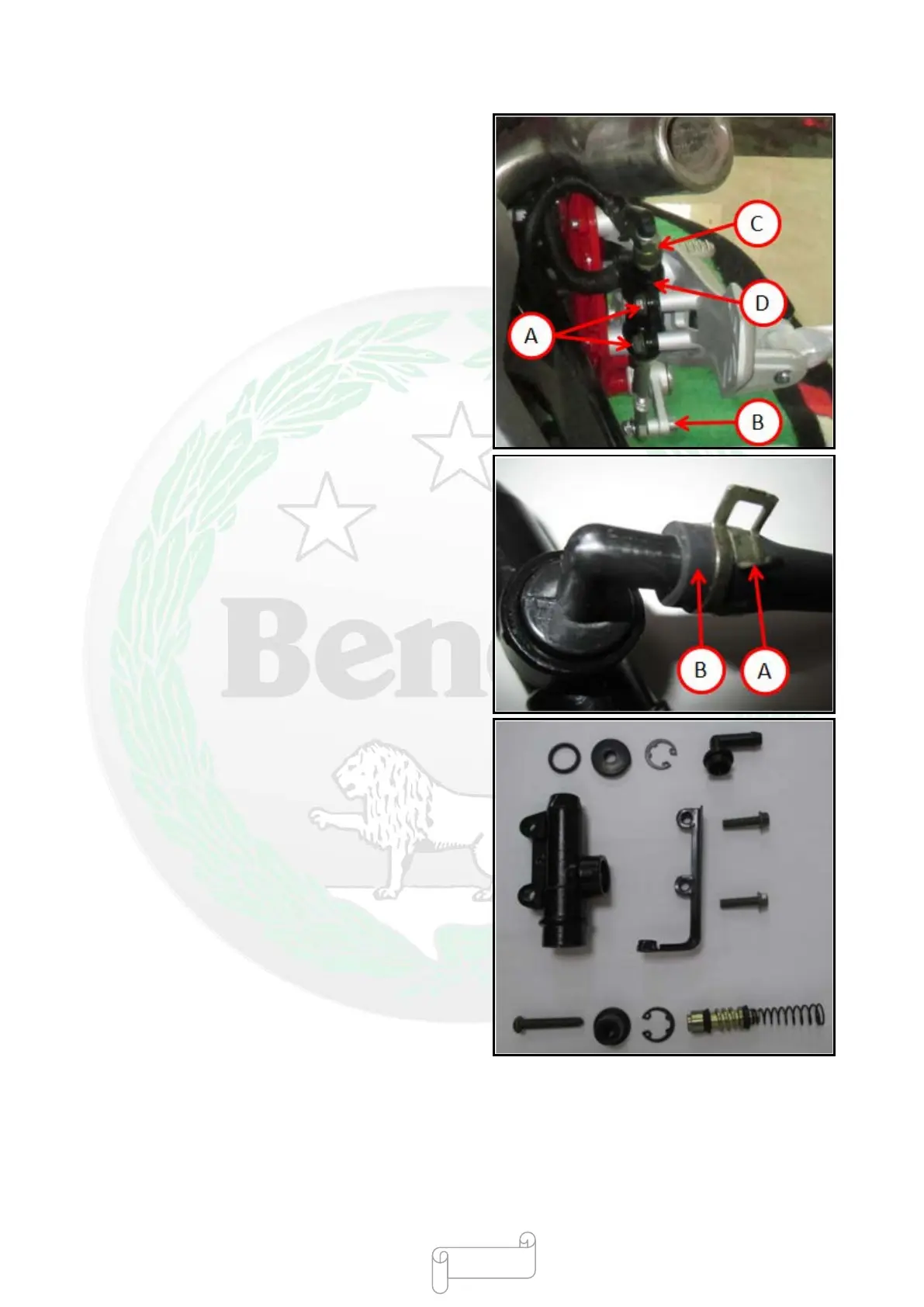

●Disassemble:
R
ear master cylinder tightening bolts [A]
Bolt [B]
Rear brake lamp switch sensor [C],
Rear master cylinder [D]
•Slide out the clamp [A].
•Pull out the lower end of the oil reservoir hose [B] and
drain the brake fluid into a container.
●Disasseble rear master pump
Installing Rear Master Cylinder
•Replace the gaskets on both sides of the hose joint with new ones.
•Install
:
T
he operations should be conducted in reverse order of disassembly.
•Locking torque:
- 331 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
