Benelli TNT125 - Brake Discs; Disassembling Brake Discs; Installing Brake Disc; Checking the Wear of Brake Disc

Brake Discs

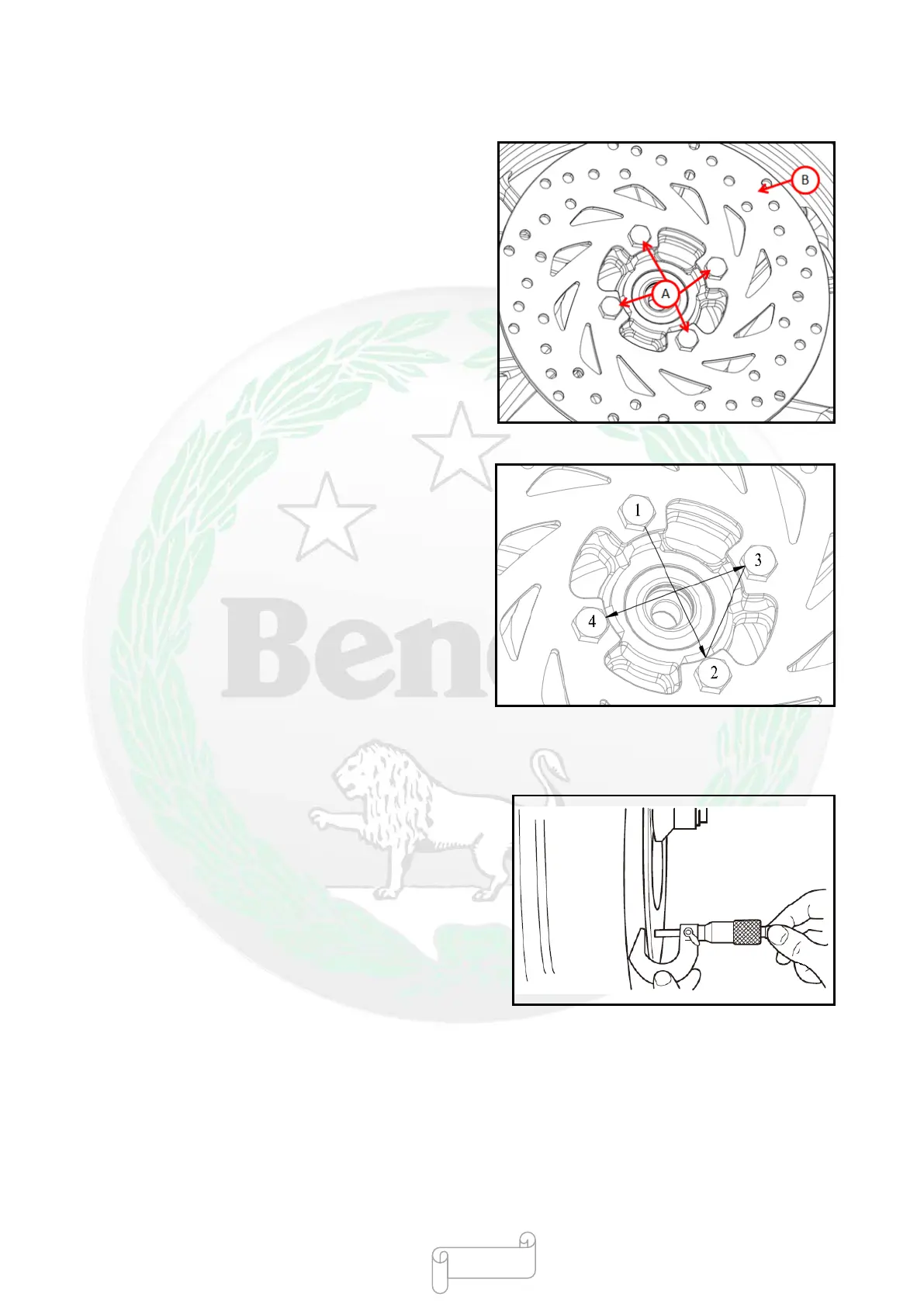

Disassembling Brake Discs
●
Disassemble the wheels (see “Wheels /
Tires”—“Removing Front Wheels / Rear Wheels”).
●Disassemble mounting bolts and remove the brake disc.
Installing Brake Disc
●Install the brake disc onto the wheels with the marked
s
ide facing out.
●Apply thread tightening glue to the threads of front brake
disc and rear brake disc mounting bolts.
●Tighten the bolts
onto the brake disc step by step in a
crossed pattern.
●Locking torque:
Locking Torque of Brake Disc Mounting bolt: 22 N•m
Checking the Wear of Brake Disc
●Measure the thickness of the brake disc in the most
severe wear of each brake disc.
★If the brake disc wear exceeds the lower USE limit,
please replace!
Thickness of brake disc
Standards:
Front brake disc 3.9
∼
4.1 mm
Rear brake disc 3.8
∼
4.0 mm
Lower use limit:
Front brake disc 3.0 mm
Rear brake disc 3.0 mm
If the brake disc wear exceeds the lower USE limit,
please replace
