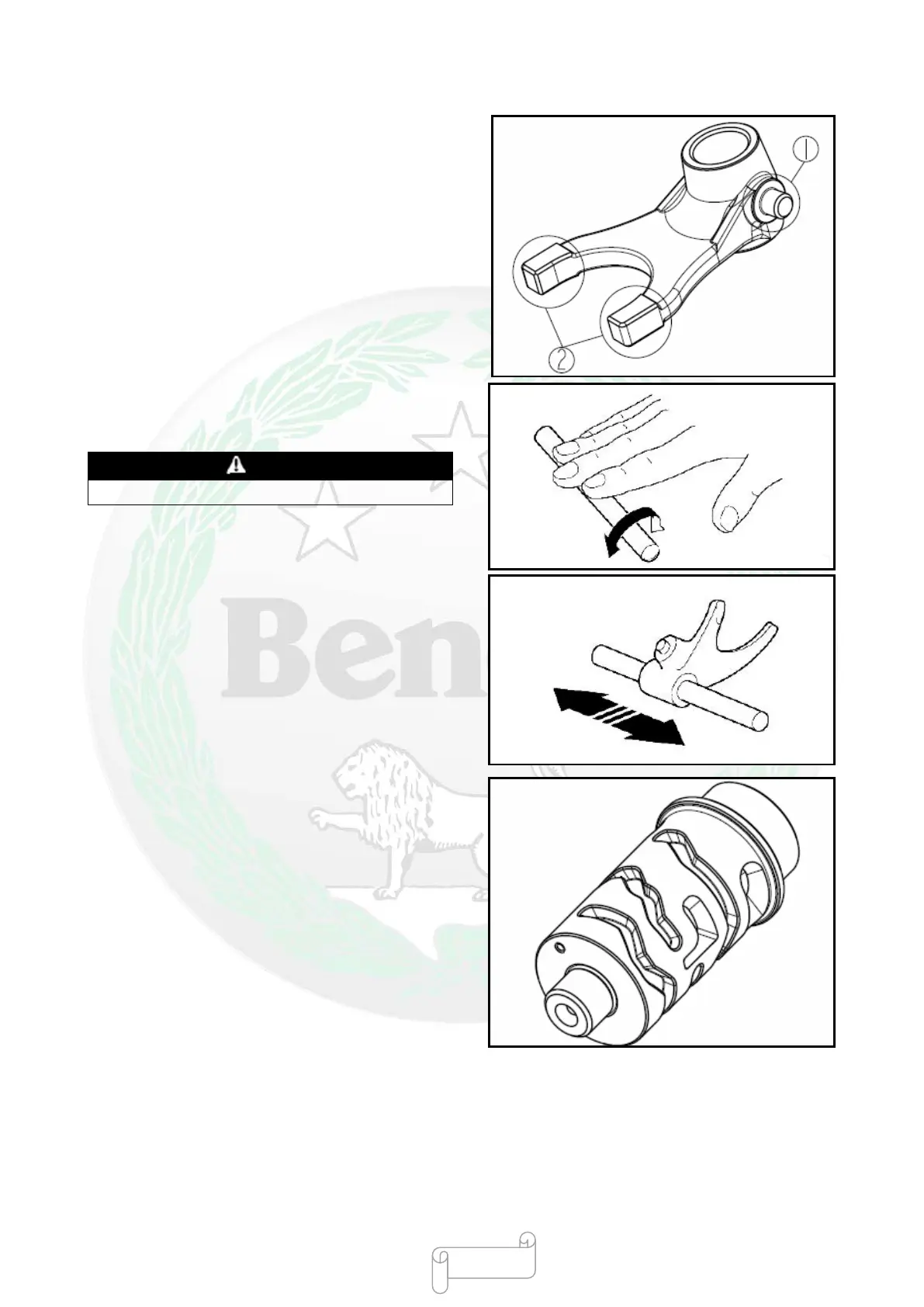

Check
●Check the shift fork (applicable to all shift forks)
○Shift fork head
Sh
ift fork claw
B
ending, damage, wear → Replace shift fork
Check shift fork shaft
○Put the shift fork at a plane and roll it back and forth
Bending → Replace
Warning
Do not try to straighten the bent shift fork shaft
Check the sliding of shift fork (along the shift fork
shaft)
The shift fork cannot slide flexibly Replace the
complete set of shift fork and shift fork shaft
●Check the shift drum
Travel slot of shift drum
Damage, scratches and wear Replace shift drum
component
Shift drum shaft section
Bending, wear → Replace shift drum component
- 266 -
