Benelli TNT125 Service Manual

Check

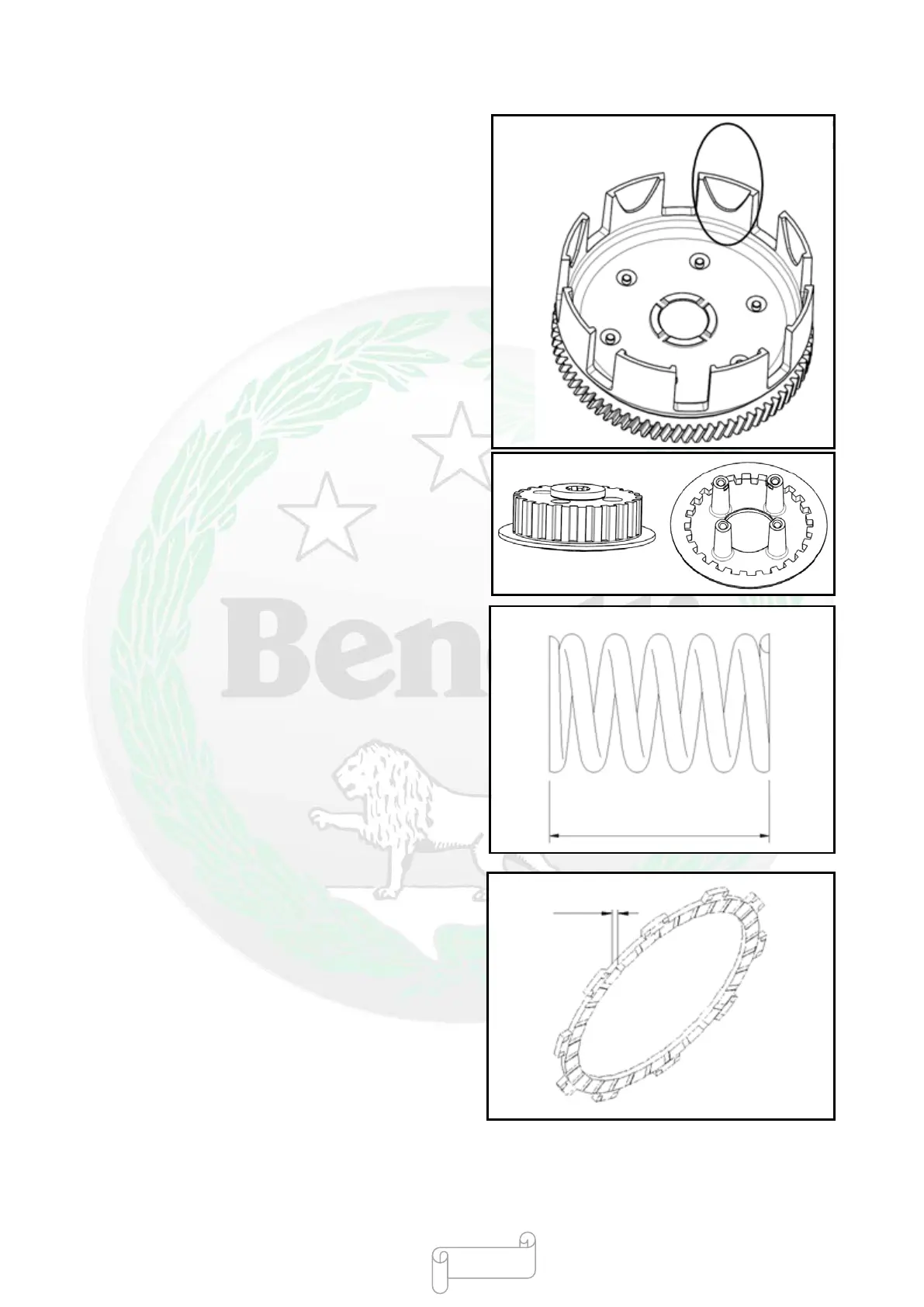

●Check the outer groove of clutch for any burrs or
broken marks.
★If necessary, finish it using a file, and replace it if the
amount of finishing is too large.
● Check the tooth forms of clutch central pivot plate
and retainer for damage.
★ If there is damage, replaced it.
● Measure the free length of pressure spring.
○Allowable limit: Replace it if its length is less than
34.2mm.
● Measure the thickness of friction plate with a vernier
calipers.
○ Allowable limit: Replace it if its thickness is less than
2.6mm.
Free length
Thickness
- 250 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
