Benelli TNT125 Service Manual

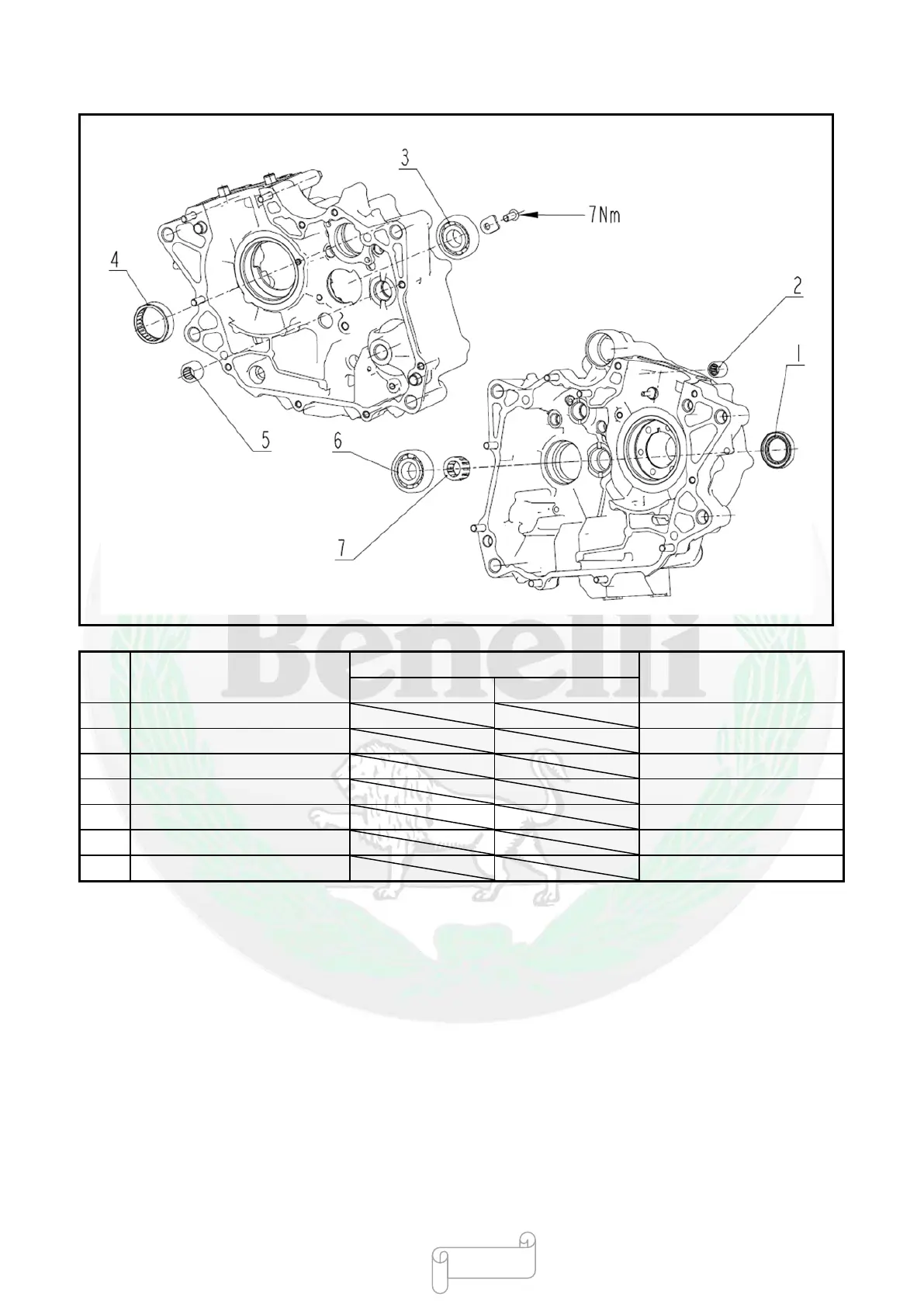

Dismounting and Mounting Diagram of Crankcase Bearing
No. Chinese name and specifications
Torque
Remark
N·m kgf·m
1
Oil seal
Apply oil
2
Needle bearing HK1010 Apply lubricating grease
3
Rolling bearing 6203 Apply oil
4
Needle bearing
Apply lubricating grease
5
Needle bearing HK1212B Apply lubricating grease
6
Rolling bearing 6203
Apply oil
7
Needle bearing
Apply lubricating grease
Torque value
Retainer screw 7N•m Apply locking agent
Note
1. The bearing disassembled cannot be reused and
should be replaced with a new one;
2. Bearings and oil seals should be disassembled by
using special tools, to prevent damaging the
crankcase body;
3. When installing new bearing and oil seal, apply oil
or lubricating grease with the specifications shown
in the figure.
- 235 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
