Fuel Tank Guard and Fairing
Disassembling Fuel Tank Guard
●Disassem
ble the seat cushion (see “Seat
Cushion”—“Disassembling Seat Cushion”)
●Disassemble the fuel tank (see “Fuel
Tank”—“Disassembling Fuel Tank”)

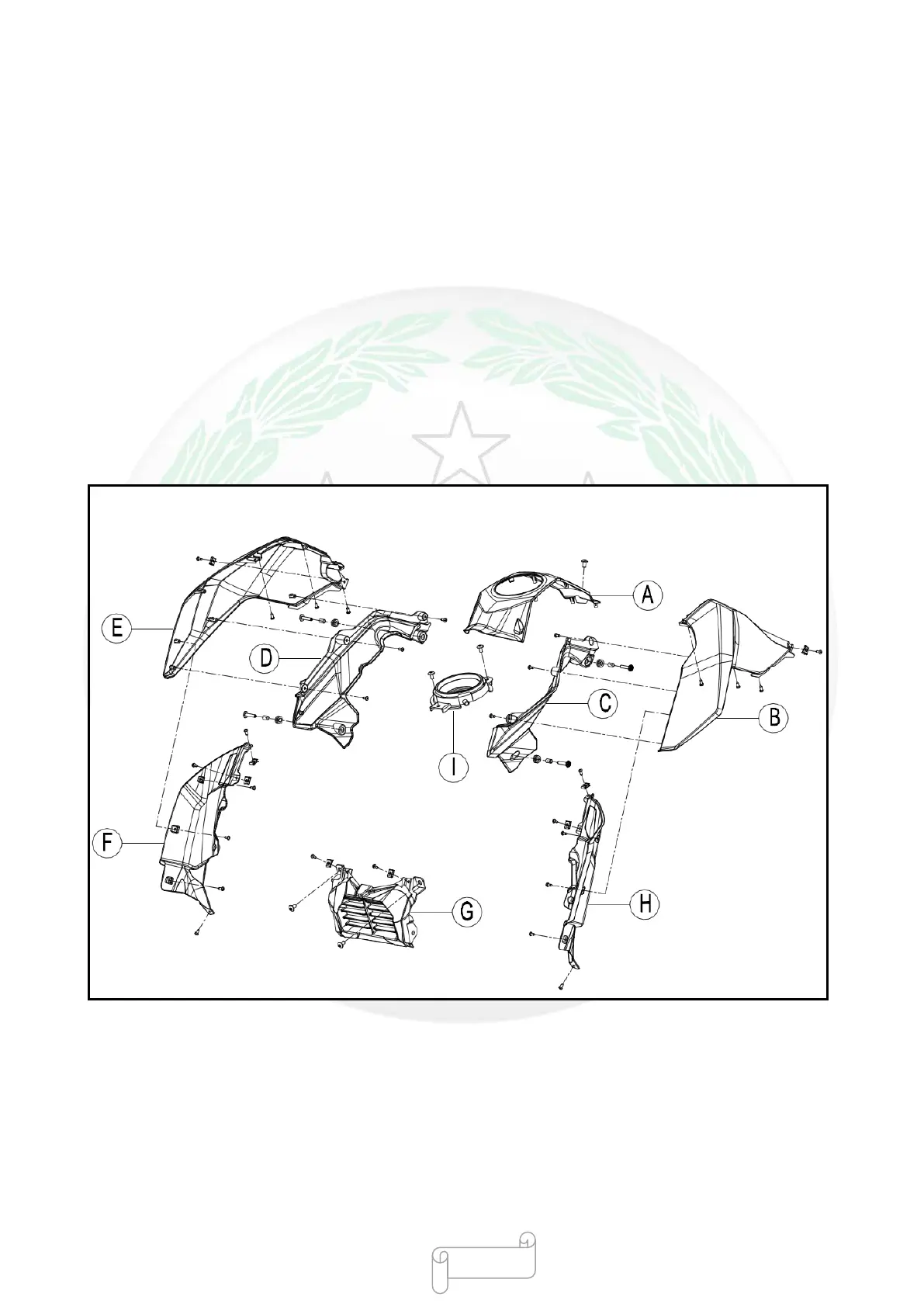

●Disassemble
Middle guard of fuel tank [A]
Left front guard of fuel tank [B]
Left guard of fuel tank [C]
Right guard of fuel tank [D]
Right left guard of fuel tank [E]
Connecting plate of left guard of fuel tank [F]
Front decorative cover [G]
Connecting plate of right guard of fuel tank [H]
Mounting plate of fuel tank lock [I]
Installing Fuel Tank Guard
●Install it in reverse order of disassembly.
- 396 -
