Benelli TNT125 Service Manual

Steering Lever
Disassembling Steering Lever and Steering Lever Bearing
●Disassemble:
Handlebar (see “Disassembling Handlebar”),
Fairing (see “Frame”—“Disassembling Fairing”),
Front wheel (see “Wheel/Tire”—“Disassembling Front
Wheel”),
Front fender (see “Frame”—
“Disassembling Front
Fender”),
Front shock absorber (see “Suspension
System”—“Disassembling Front Shock Absorber”),
●Disassemble:

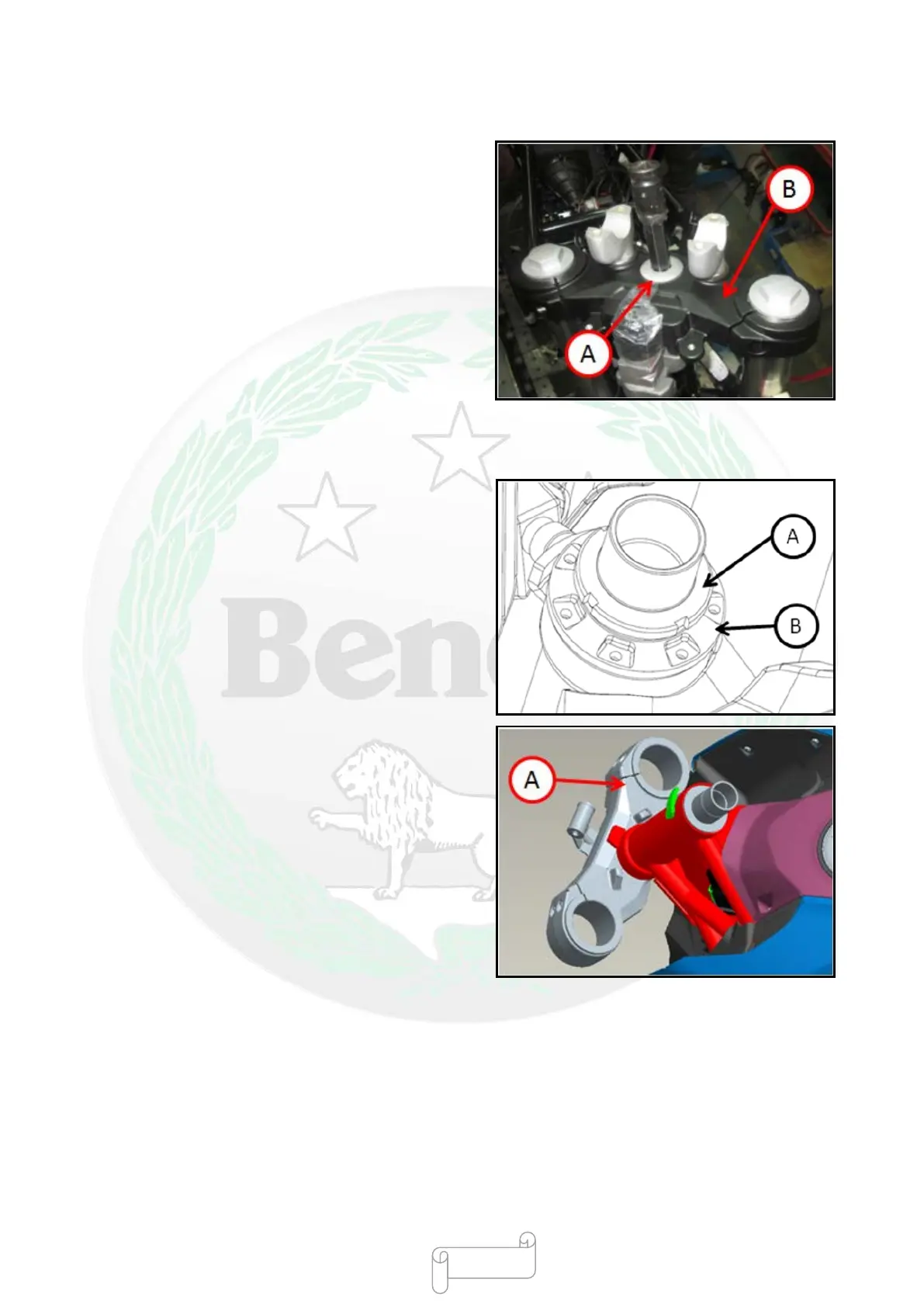

Upper bracket lock nut [A]
Upper bracket [B],
●Remove the steering lever lock nut [A].
Special Tool—
Steering Lever Nut Wrench
(Four-claw):
●Remove the steering lever nut [B].
Special Tool—Stee
ring Lever Nut Wrench
(Seven-claw):
●Disassemble:
Steering lever [A],
Ball bearing inner ring and ball bearing at the upper
side
- 360 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
