Benelli TNT125 Service Manual

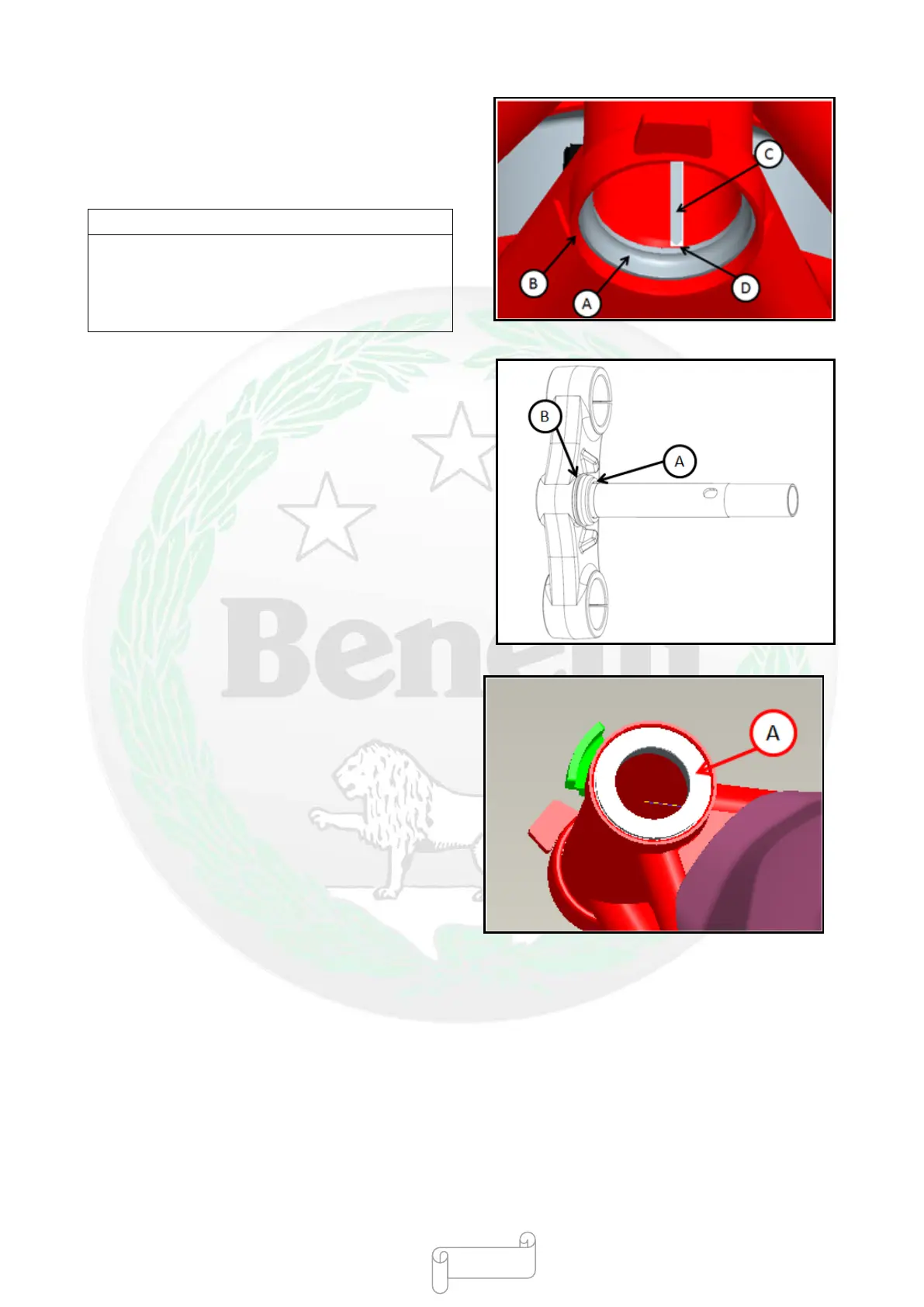

●To remove the ball bearing outer ring [A] which is
pressed into the head pipe, insert a rod [C] into the
inner cavity [D] of head pipe [B], and then knock both
sides of ball bearing alternately to remove the outer
ring.
Remark
○If any one of bearings on the upper and lower sides
of steering lever is damaged, it is recommended to
rep
lace both bearings at the upper and lower sides
(including the bearing outer ring) with new ones.
●Remove the lower ball bearing inner ring (and oil seal
of inner ring) [A] pressed on the steering lever at the
[B] position with a chisel (it can be purchased).
Installing Steering Lever and Steering Lever Bearing
●Replace the bearing outer ring with a new one.
●Install the steering lever and steering lever bearing in
the head pipe simultaneously.
Special Tool—Special Tool for Head
Pipe Outer
Ring Installation [A]:
Complete Set of Tools for Bearing Assembly:
●Apply the grease to the outer ring.
- 361 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
