●Replace the bearing inner ring and oil seal with new
ones.
●Apply grease to oil seals.

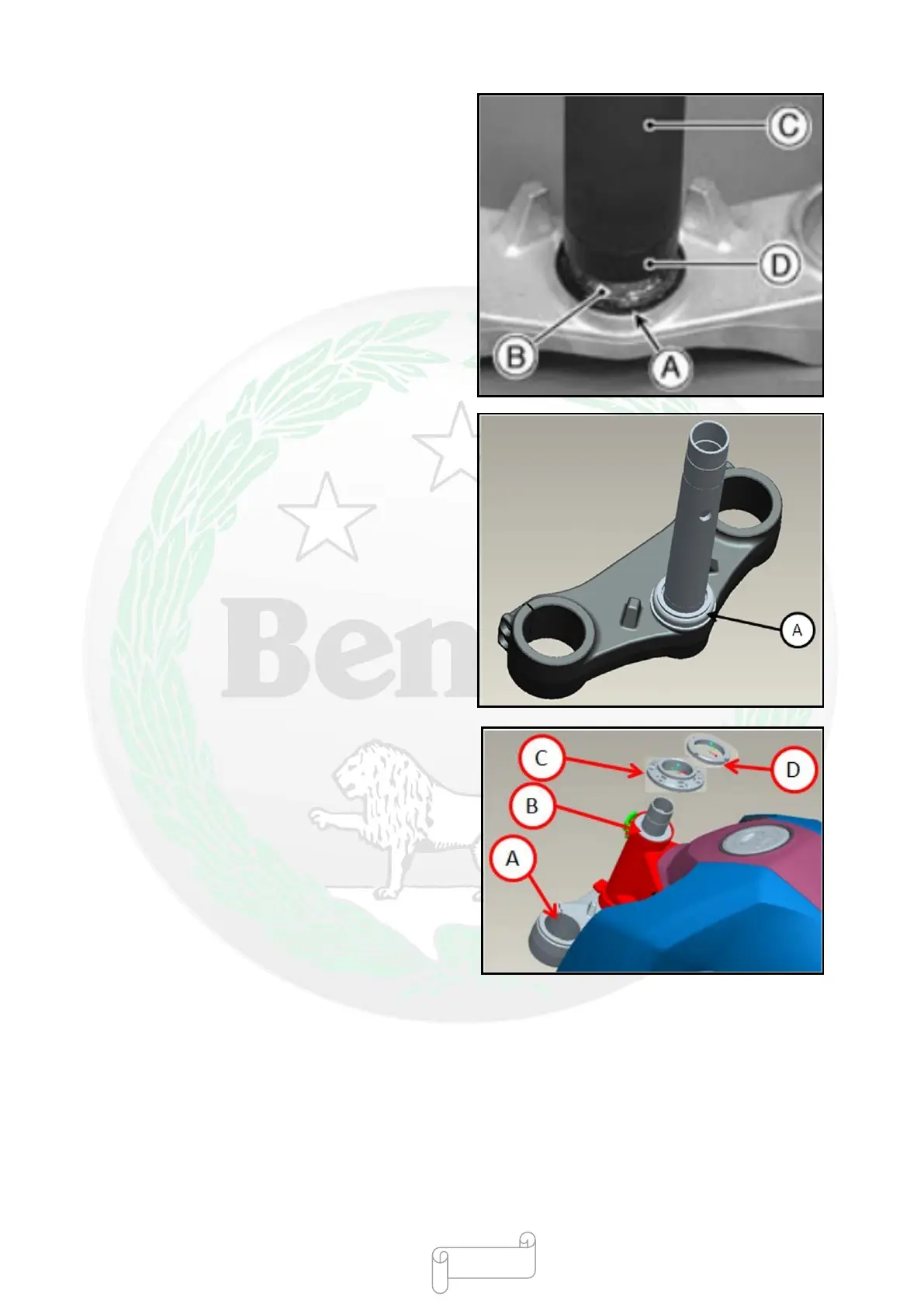

●Cover the steering lever with oil seal [A], then install
the ball bearing inner ring [B] at the lower side and
apply grease to the steering lever.
Special Tool
Special Tool for Steering Pipe
Bearing Installation [D]:
Install the ball bearing [A] at the lower side on the
steering lever.
●Apply grease to the following parts:
Inner and outer rings,
Ball bearings at the lower and upper sides
○The ball bearing at the lower side is the same as that
at the upper side.
●Insert the steering lever [A] into the head pipe and
then install the ball bearing [B].
Installing:
Steering lever nut [C]
Locking nut [D]
- 362 -
