Benelli TNT125 Service Manual

Suspension System
Checking Front Fork/Rear Shock Absorber

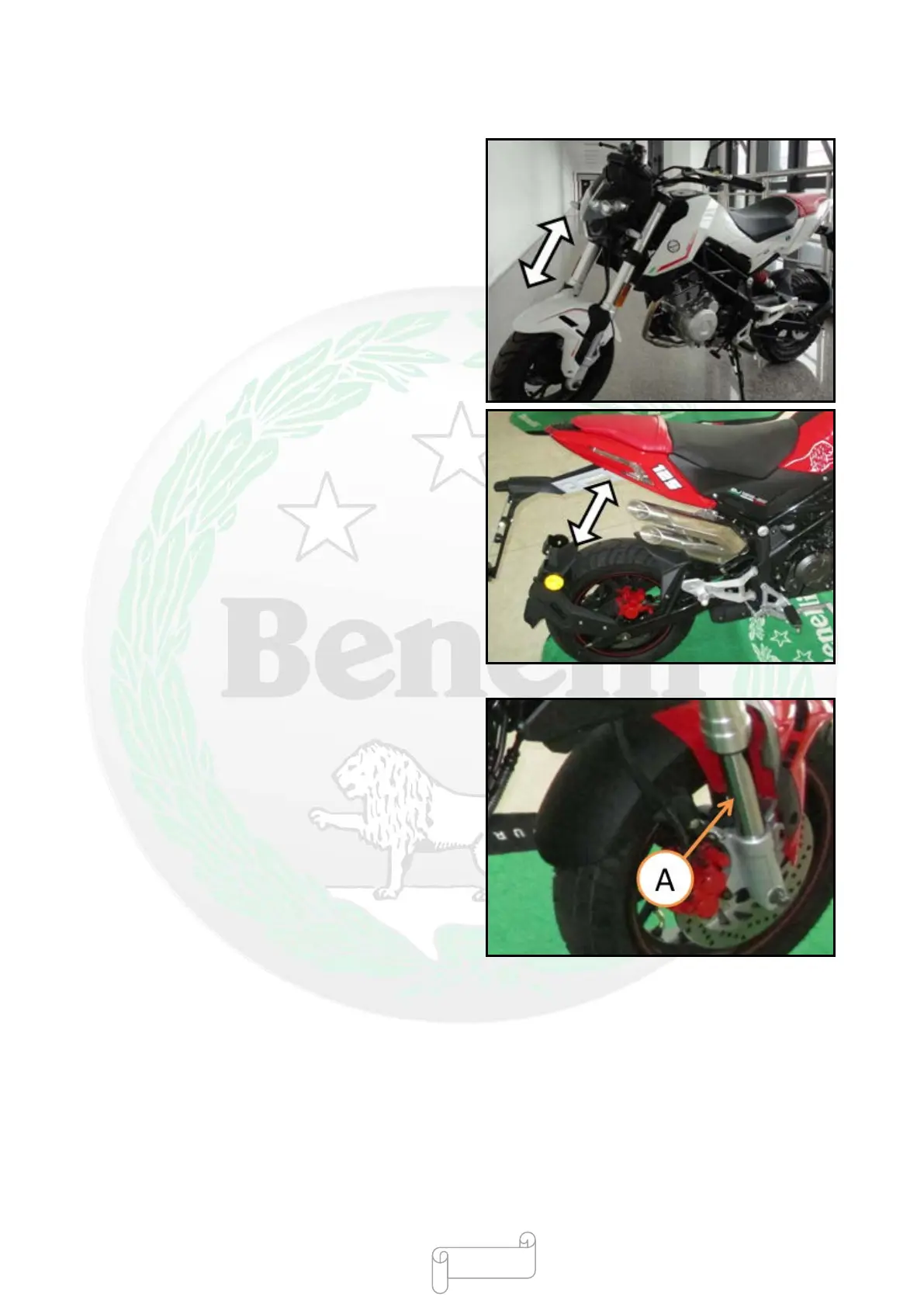

●Shake the front fork up and down for four or five
times to check whether the travel of shock absorber is
smooth.
★If the front fork cannot be moved smoothly or there
is noise, check the oil level or fork clamp of front fork
shock absorber oil (see “Replacing Front Fork Shock
Absorber Oil” in “Suspension System” chapter).
●Shake the seat cushion up and down for four or five
times to check whether the travel of shock absorber is
smooth.
★
If the travel of shock absorber is not smooth or there
is noise, check for the shock absorber oil leakage (see
“Checking for Rear Shock Absorber Oil Leakage”).
Check for Oil Leakage of Front Fork Shock Absorber
●Visually c
heck for the front fork shock absorber [A]
oil leakage.
★
If necessary, replace or maintain any part with
defects.
- 77 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
