Benelli TNT125 Service Manual

Front Shock Absorber
Disassembling Front Shock Absorber
●Disassemble:
Mi
ddle Fairings (see “Frame”—“Disassembling Middle Fairings”)
Front wheel (see “Wheel/Tire”—“Disassembling Front Wheel”),
Front fender (see “Frame”—“Disassembling Front Fender”)

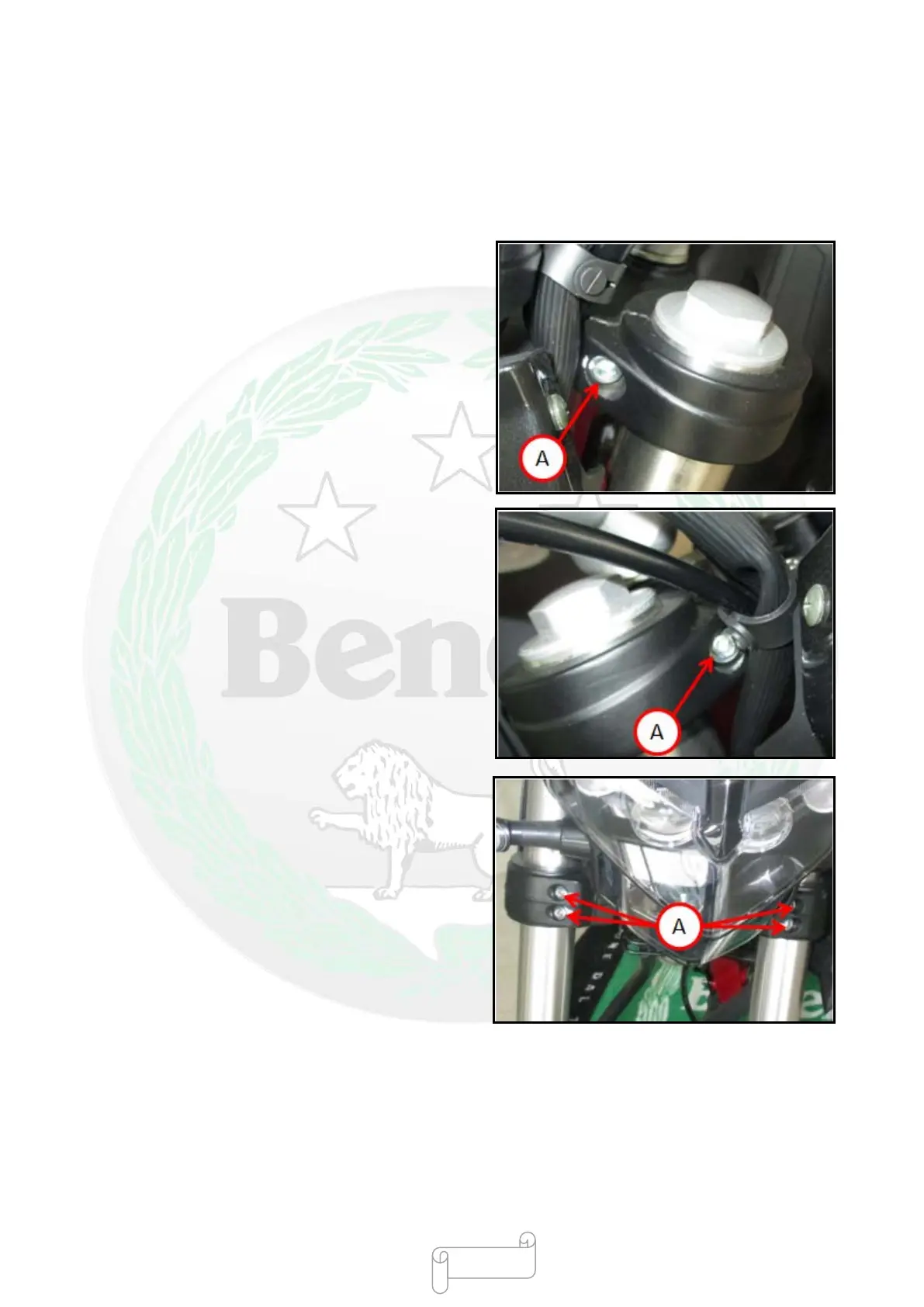

●Disassemble the clamping bolt at the upper bracket of
front shock absorber [A]
●Disassemble the clamping bolt at the lower bracket of
front shock absorber [A]
●Turn the front shock absorber installing seat down to
remove it.
- 343 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
