Wheel / Tire

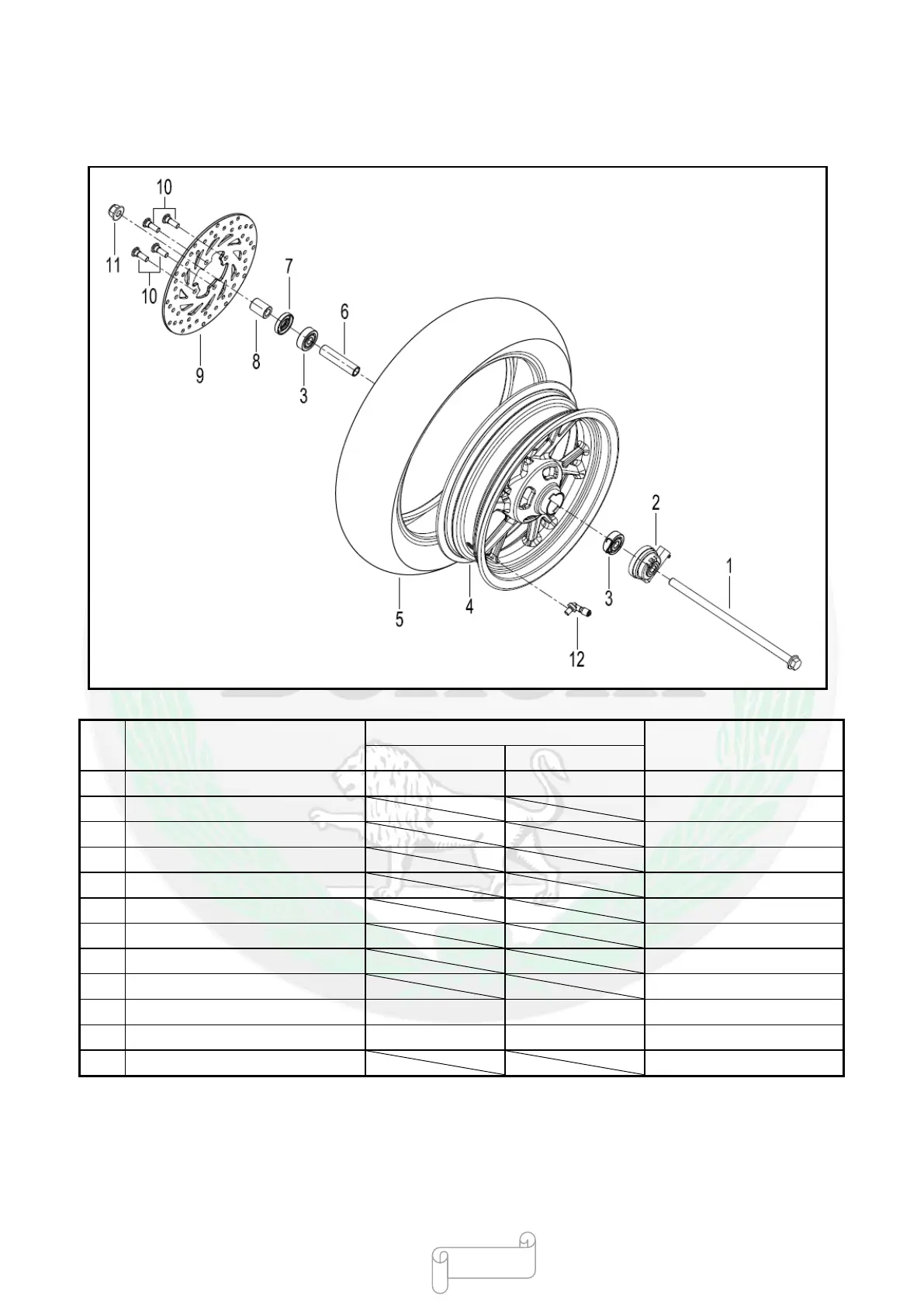

Exploded View of Front Wheel / Tire
No. Chinese name and specifications
Torque
Remark
N·m kgf·m
1 Engine mounting shaft
80 8.0 Si
2 Gear housing component
Si
3
Rolling bearing 6301-2RS
Si
4
Front rim
5
Vacuum tire 120/70-12
6
Intermediate sleeve of front wheel Si
7 Oil seal component
R
8 Right shaft sleeve of front wheel
Si
9
Front brake disc
10 Hydraulic brake pad mounting bolt
22
2.2
L
11 Self-locking nut M12×1.25
80 8.0
12
Valve
R
L: apply thread fastening glue.
R: replace parts.
Si: apply silicone grease.
