Seat Cushion
Disassembling Seat Cushion

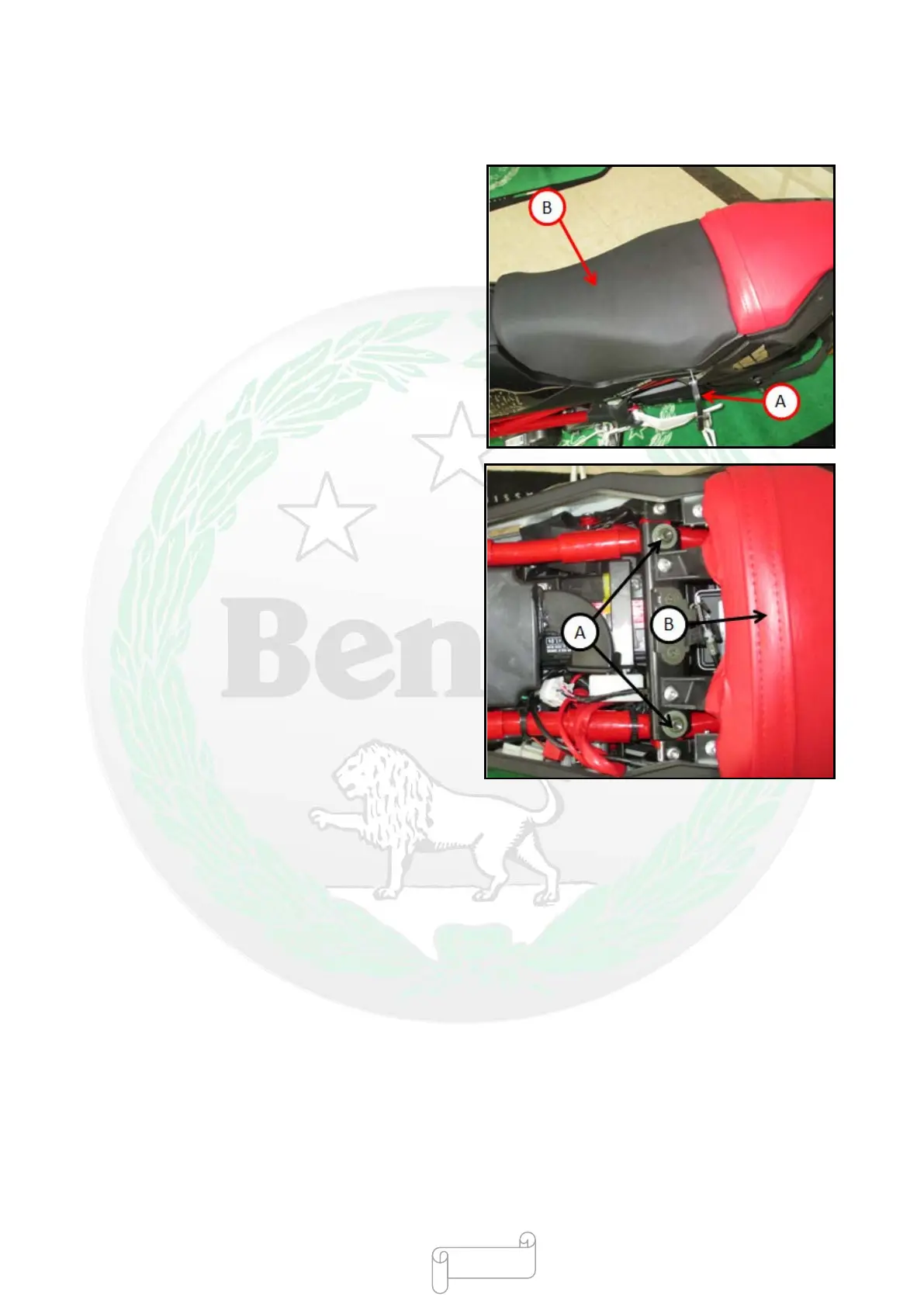

●Insert the ignition switch key [A] into the seat cushion
lock, turn the key counterclockwise, open the seat
cushion [B] and lift up to remove the front seat cushion.
●Disassemble:
Screw [A]
Front seat cushion [B]
Installing Seat Cushion
●Install it in reverse order of disassembly.
●Press down the rear part of seat cushion until the
click sound is generated by the seat cushion lock.
- 388 -
