Benelli TNT125 Service Manual

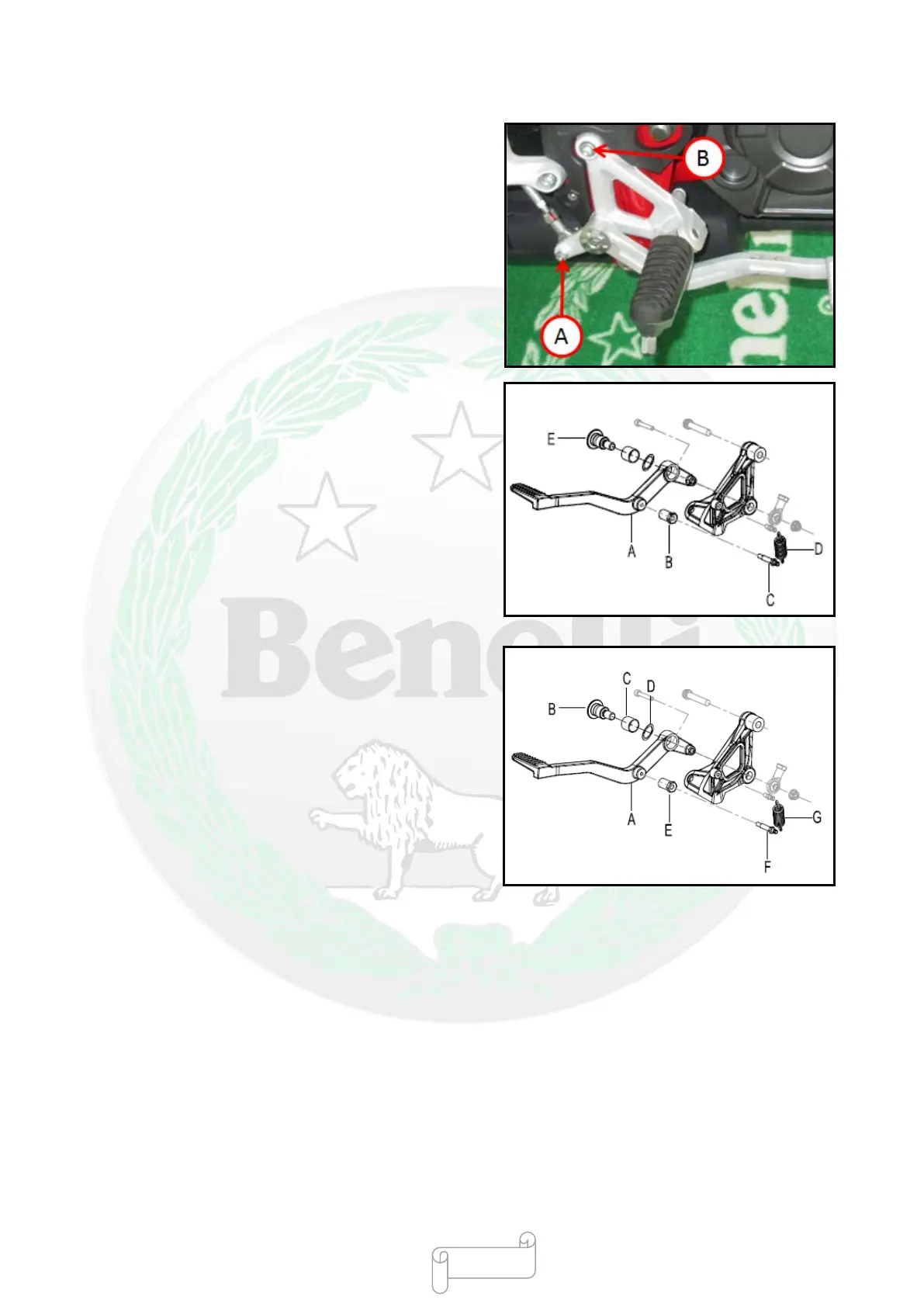

Removing the Brake Pedal
●Disassemble:
Right Front Pedal Bracket Bolt [B]
Section Locking Screw [A]
●Disassemble:
Brake pedal return spring [D]
Eccentric push rod [B],
Lower spring pin [C],
•Disassemble the rear brake pedal installing screw [E],
and remove the brake pedal [A].
Installing the Brake Pedal
●Install:
Self-lubricating sleeve [C].
Eccentric push rod [E],
Lower spring pin [F],
Locking Torque of Lower Spring Pin: 3N•m
●
Apply grease to the rear brake pedal installing screw
[B]
●Install:
Brake pedal [A],
Gasket [D],
Rear brake pedal installing screw [B]
Locking Torque of Brake Pedal Bolt: 22 N•m
●Attach the lower end of the brake pedal return spring
[D] to the lower spring pin.
●Attach the upper end of the brake pedal return spring
[D
] to the hook of the pedal.
- 319 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
