Benelli TNT125 Service Manual

Installing Front Shock Absorber

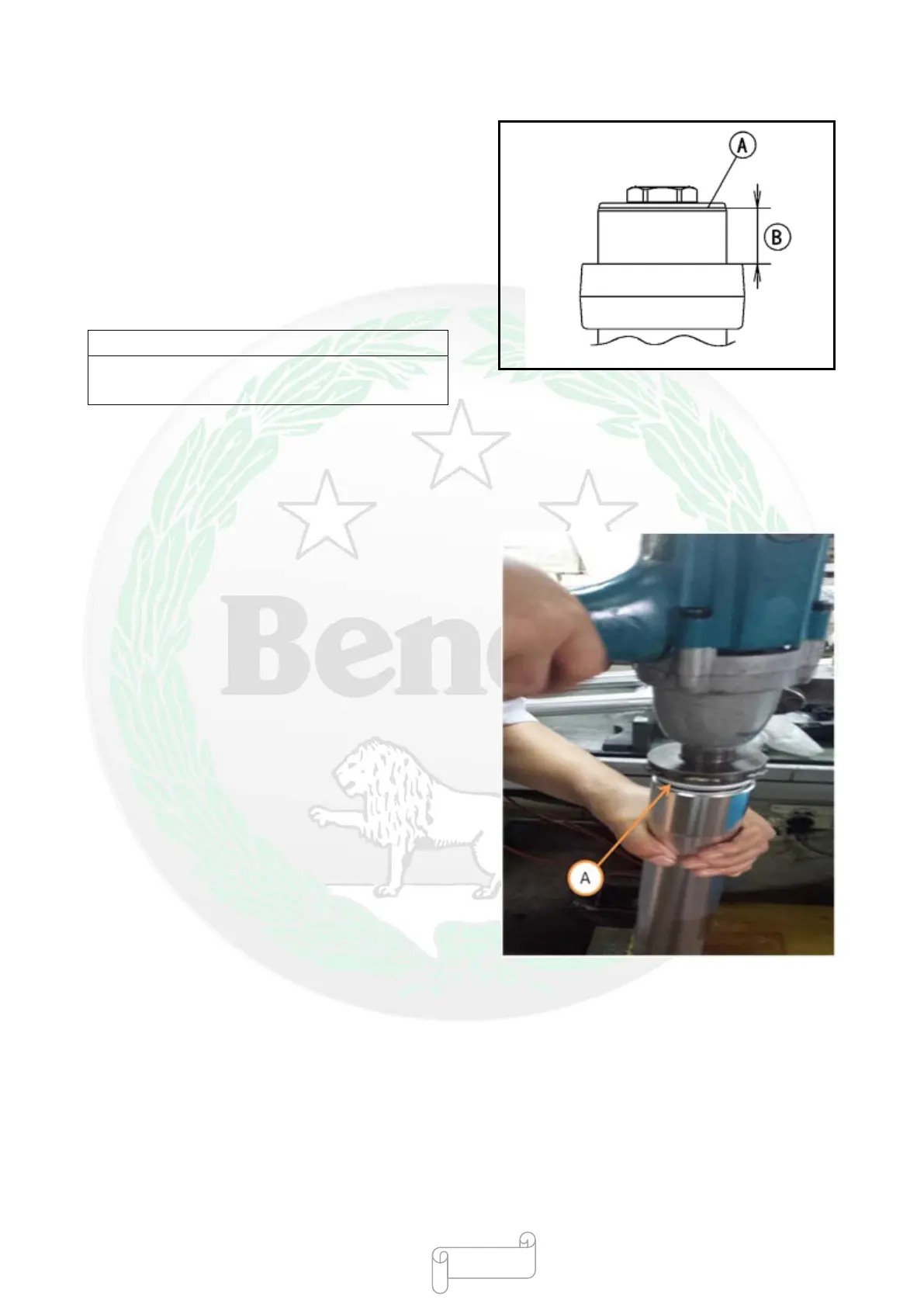

●Keep the direction and position of top of outer pipe
[A] as shown in the figure on the right before
installing the front shock absorber.
1mm [B]
●Locking torque:
Clamping bolt of front shock absorber (at the lower
side): 22 N·m
Clamping bolt of front shock absorber (at the
upper side): 22 N·m
Remark
○Lock two clamping bolts twice alternately to
ensure that the locking torque is even.
●Install it in reverse order of disassembly (see the corresponding chapters).
Replacing Front Shock Absorber Oil
●Remove the front shock absorber (see
“Disassembling Front Shock Absorber”).
●Clamp the lower end of inner pipe with a vise.
●Remove the head cover [A] from the outer pipe.
- 344 -
