Frame
Disassembling Frame
Disassemble:
Seat cushion (see “Seat Cushion”“Disassembling
Seat Cushion”)
Fuel tank (see “Fuel Tank”
“Disassembling Fuel
Tank”)
Guard (see “Guard”—“Disassembling Guard”)
Tail cover (see “Tail Cover”
“Disassembling Tail
Cover”)
Rear fender (see “Rear Fender” “Disassembling
Rear Fender”)
Rear wheel (see “Rear Wheel” “Disassembling Rear
Wheel”)
Front wheel (see “Front Wheel” “Disassembling
Front Wheel”)
Front fork (see “Disassembling Front Fork”)
Muffler (see “Disassembling Muffler”)
Rear swing arm (see “Rear Swing
Arm”Disassembling Rear Swing Arm”)
Engine (see “Disassembling Engine”)
Side stand (see “Seat Cushion”“Disassembling
Guard”)
Front and rear left pedals (see “Disassembling Front
Left Pedal” and “Disassembling Rear Left Pedal”)
Front and rear right pedals (see “Disassembling Front
Right Pedal” and “Disassembling Rear Right Pedal”)
●Disassemble the cables and other electric parts.
Installing Frame
Install it in reverse order of disassembly (see the
corresponding chapters).

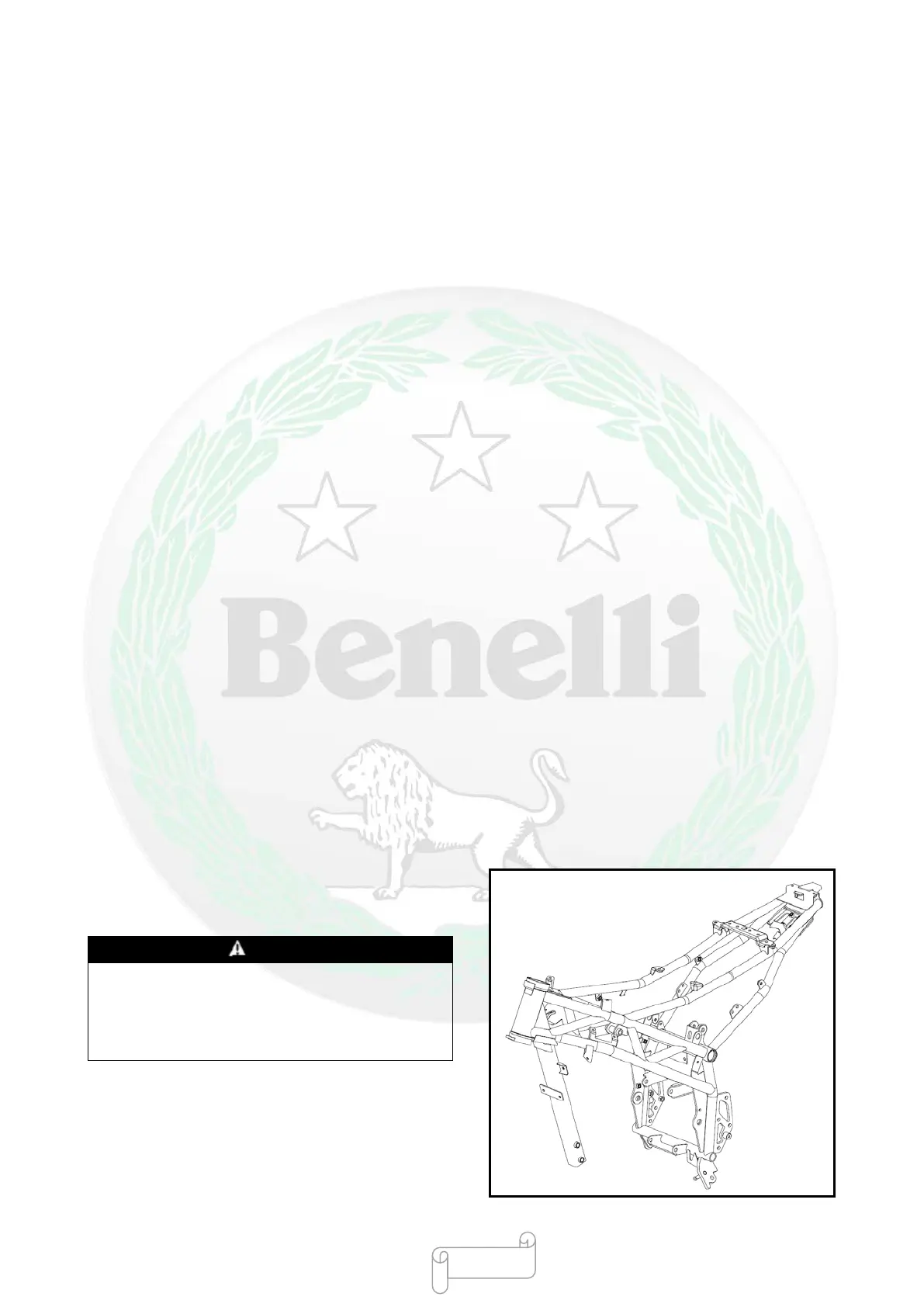

Checking Frame
●Visually check whether there is crack, depression,
bending or deformation on the frame [A].
If the frame is damaged, please replace it!
Warning
The maintained frame will go wrong in the using
process, which may cause accidents, so please
replace the frame if the crack, depression,
bending or deformation occurs on it!
- 397 -
