●Take off the cowling, headlight and instrument
combination.

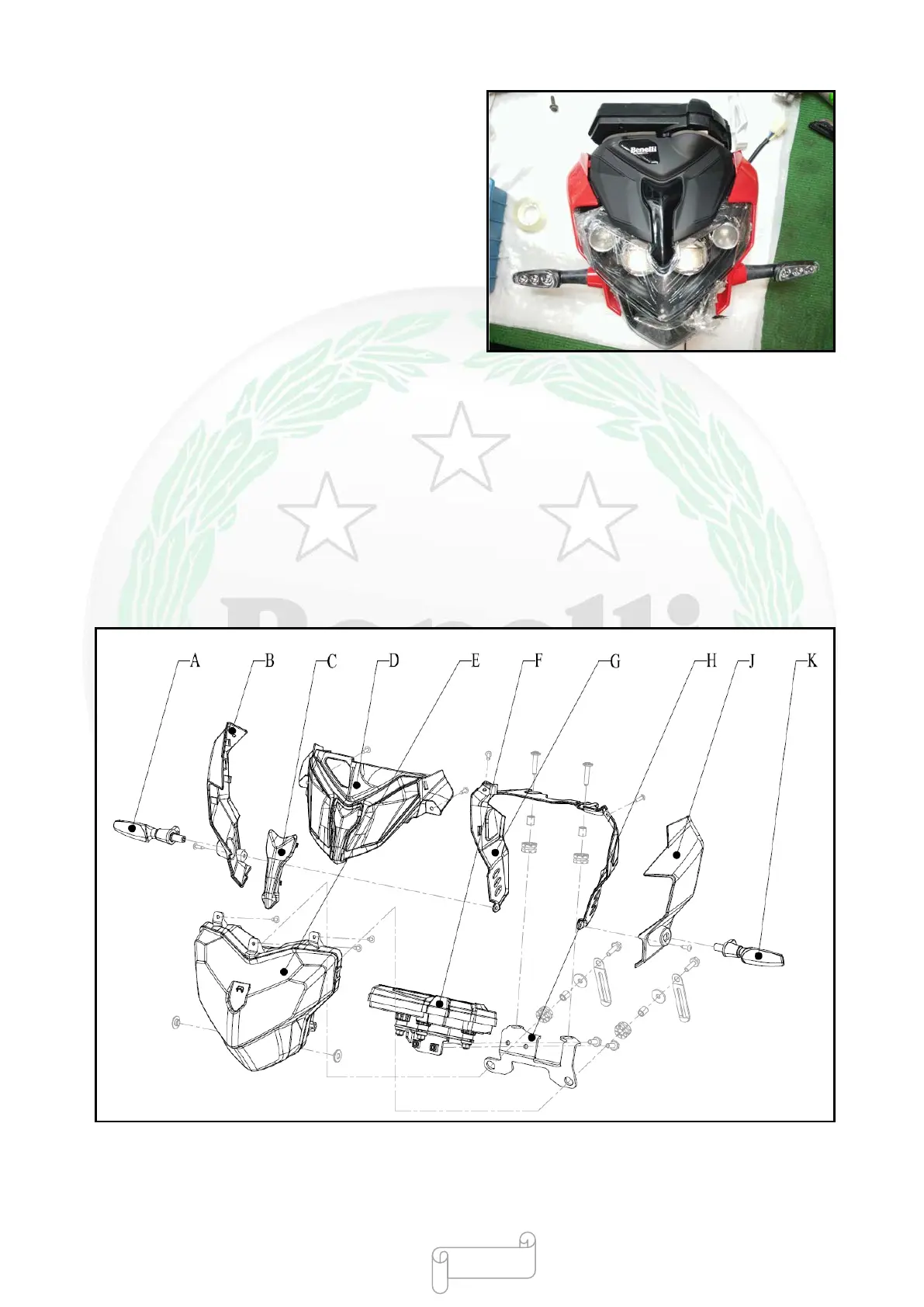

Disassemble:
Front right turn signal light [A]
Mounting plate of right cowling [B]
Cowling cover[C]
Cowling [D]
Headlight[E]
Instrument [F]
Inner protective cover of cowling [G]
Upper mounting plate of headlight [H]
Mounting plate of left cowling [J]
Front left turn signal light [K]
Installing Cowling
Install it in reverse order of disassembly.
Mounting bolt of upper bracket of headlight: 10 N·m
