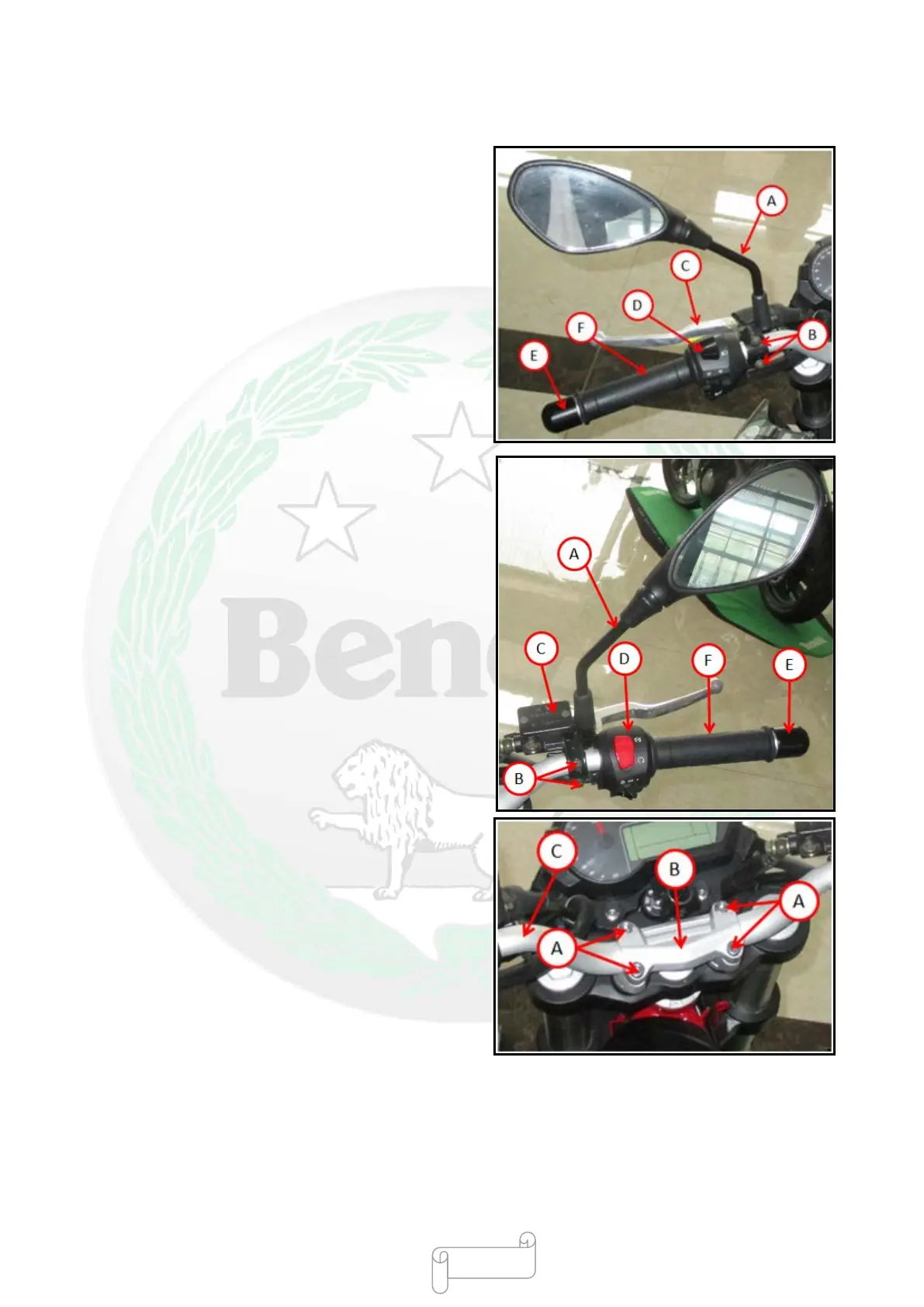

Handlebar
Disassembling Handlebar
Disassemble:
Left rearview mirror [A]
Clutch handle lock bolt [B]
Clutch handle [C]
Left combination switch [D]
Handle counterbalance [E]
Left handle grip [F]
Disassemble:
Right rearview mirror [A]
Lock bolt of master cylinder of front hydraulic brake
[B]
Master cylinder of front hydraulic brake [C]
Right combination switch [D]
Handle counterbalance [E]
Throttle handle [F]
●Remove the bolt [A] of handlebar installing seat.
●Remove all the handlebar installing seats [B] and
handlebars [C].
