Brake

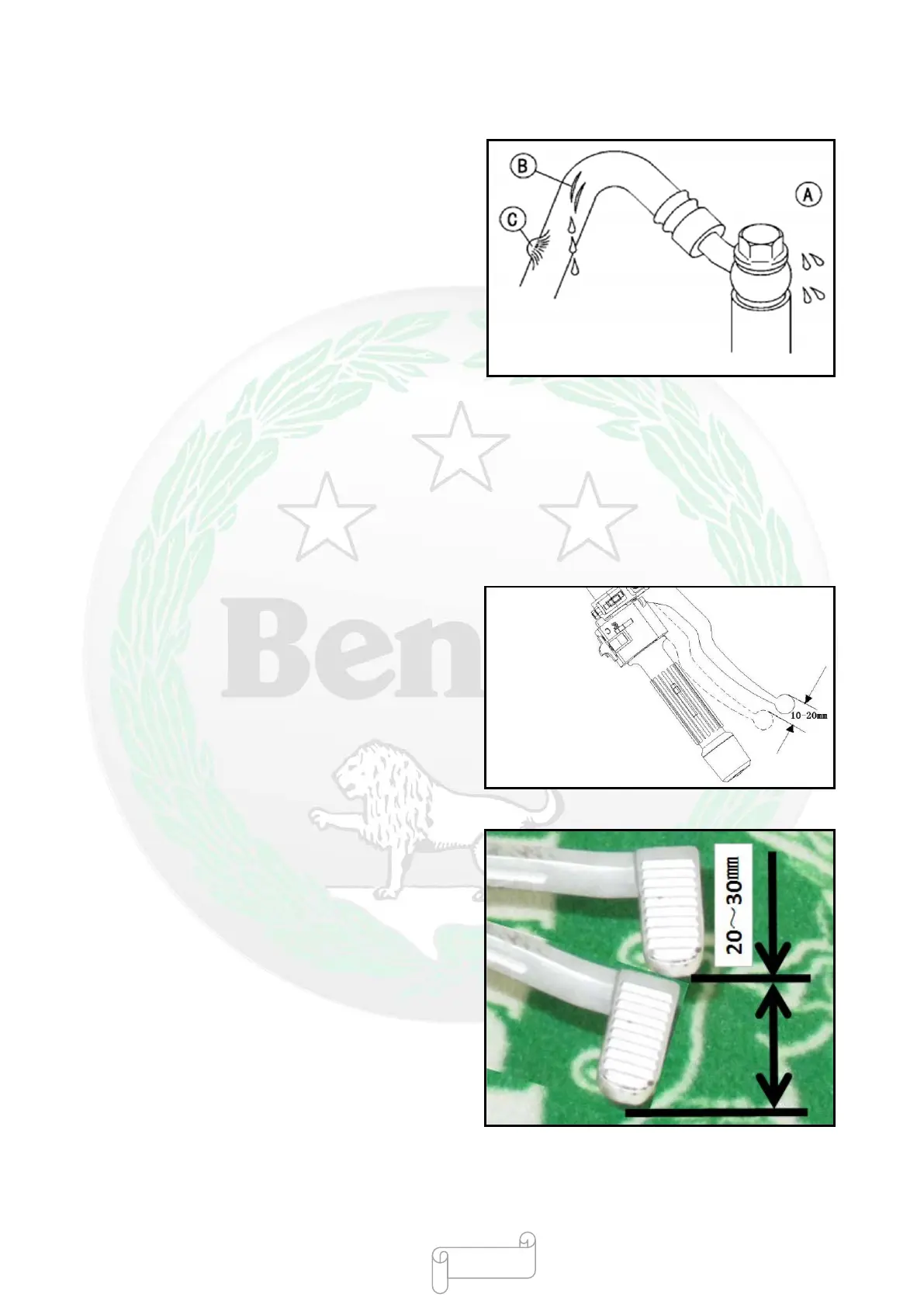

Check Whether Brake Hose and Brake Pipe are Damaged and Their Installation States
●Check whether the brake hose, brake pipe and
accessories are corroded and whether there are cracks
or leaks.
○If the brake hose and brake pipe are not properly
maintained, the high pressure inside the brake pipe will
cause the leakage of brake fluid [A] or rupture of brake
hose and brake fo
rming pipe. When checking the
rubber hose, the pipe needs to be bent and twisted.
★If it is found that there is any crack [B], expansion
[C] or leakage on the brake hose or brake forming pipe,
it must be replaced.
●Tighten all the hollow bolts of brake hose.
Tightening torque of hollow bolt of brake hose: 30
N·m
Tightening torque of connecting nut of brake hose:
18 N·m
●Check the winding method of brake hose.
★If the winding methods of brake hose and brake pipe
are incorrect, arrange the brake hose and bra
ke pipe
according to the section in the “Accessory” chapter:
“Winding Method of Cable, Wire and Hose”.
Free Travel of Front Brake
●
Measure the free travel at the top end of front brake
handle
Free travel of front brake handle.
Free travel: 10-20mm
Free Travel of Rear Brake
●Measure the free travel of brake pedal.
Free travel: 20-30mm.
- 72 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
