Benelli TNT125 Service Manual

Clutch
Disassembling Clutch
●Fix the clutch central pivot using a dedicated clutch
central pivot universal fixer, and loosen the clutch lock
nut.
● Remove the clutch lock nut and butterfly washer.
●Loosen the clutch spring mounting bolts and remove
the clutch spring cover plate and clutch spring.
●Remove the central pivot of clutch.
●Remove the clutch friction plate and clu
tch metal
plate.
●Remove the clutch central pivot retainer and washer.

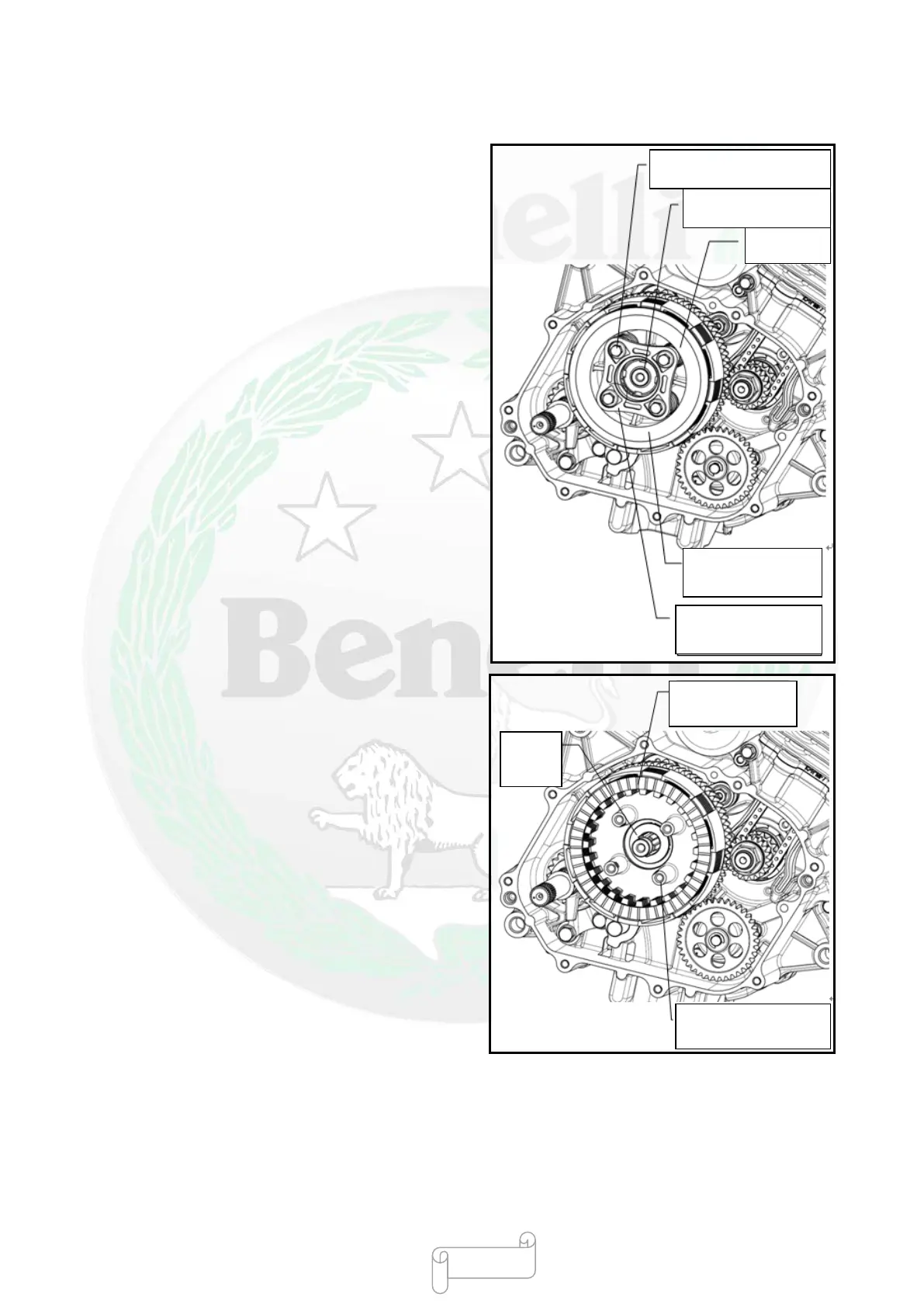

Clutch spring mounting
bolt
Clutch lock nut
Clutch
Clutch central pivot
plate
Clutch spring cover
plate
Washer
Clutch friction
plate
Clutch central pivot
retainer
- 248 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
