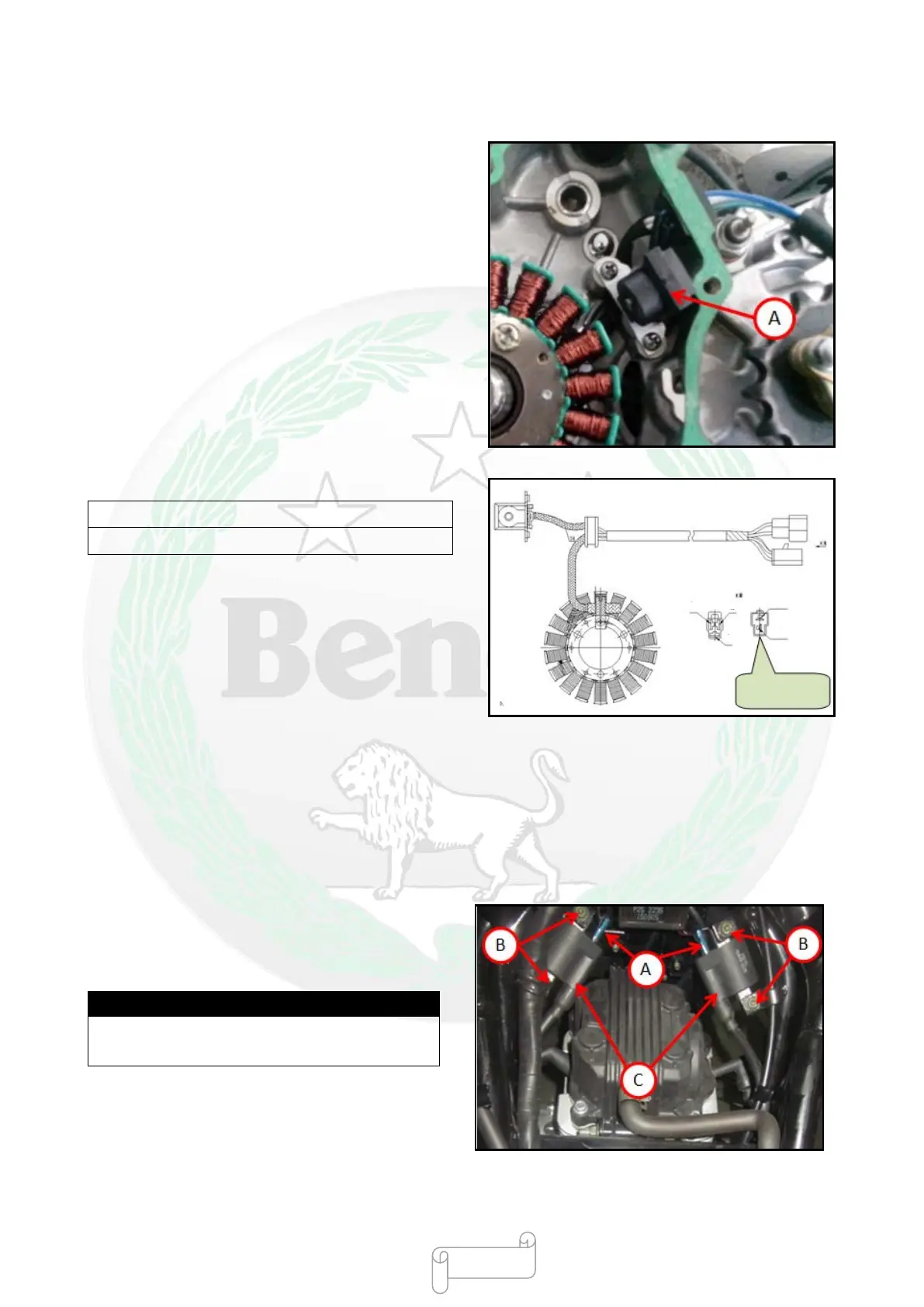

Crankshaft Sensor
Disassembling Crankshaft Position Sensor
●
It cannot be disassembled separately and integrated
with the magneto (see “Charging System” –
“Disassembling Magneto” for details)
●Crankshaft position sensor [A]
Check
●Use the tester
* Note
The trigger can be checked on the engine.
●Remove the trigger lead connector.
●Measure the impedance values of red and yellow
outgoing lines of engine.
Standard value: 150±20Ω (20
)
★
If the m
easured resistance value is higher than the
specified value, the coil circuit is disconnected and
needs to be replaced.
★
If the resistance value is lower than the specified
value, the coil is short-circuited and must be replaced.
Ignition Coil
Disassembling Ignition Coil:
●
Remove the screw [B] above the two installing
columns at the ignition coil [C] under the fuel tank and
remove the connector [A].
When removing the coil, you cannot pry up the
connector of coil.
