Benelli TNT125 Service Manual

Rectifier

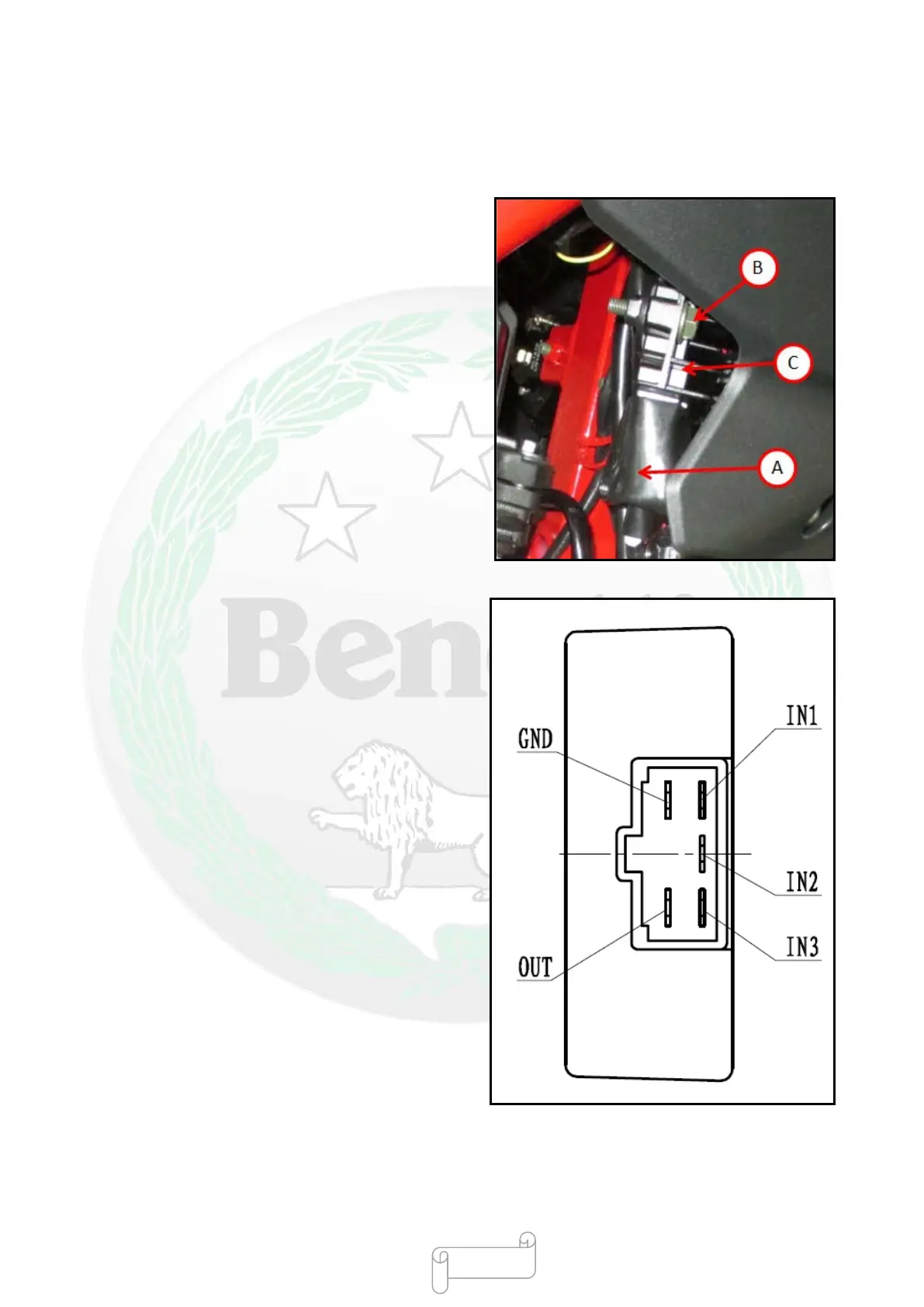

Disassebling rectifier:
Disassemble right fuel tank guard (see “Frame” –
“Disassembling Fuel Tank Guard” for details)
●Disassemble:
Connector [A]
Bolt [B]
Voltage regulator/rectifier [C]
Main Wiring Terminal Circuit Inspection
Remove the motorcycle body guard.
Remove the plug of voltage and current regulator and
check the breakover among main wiring terminals in
the following method.
Rectifier Inspection
1. Multimeter: select the diode gear;
2. Connect the black probe to the red wire terminal of
voltage stabilizer and connect the red probe to the white
- 435 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
