Checking Emergency Flameout Switch
Step 1
●Open the electric door lock.
●Set the gear as neutral.

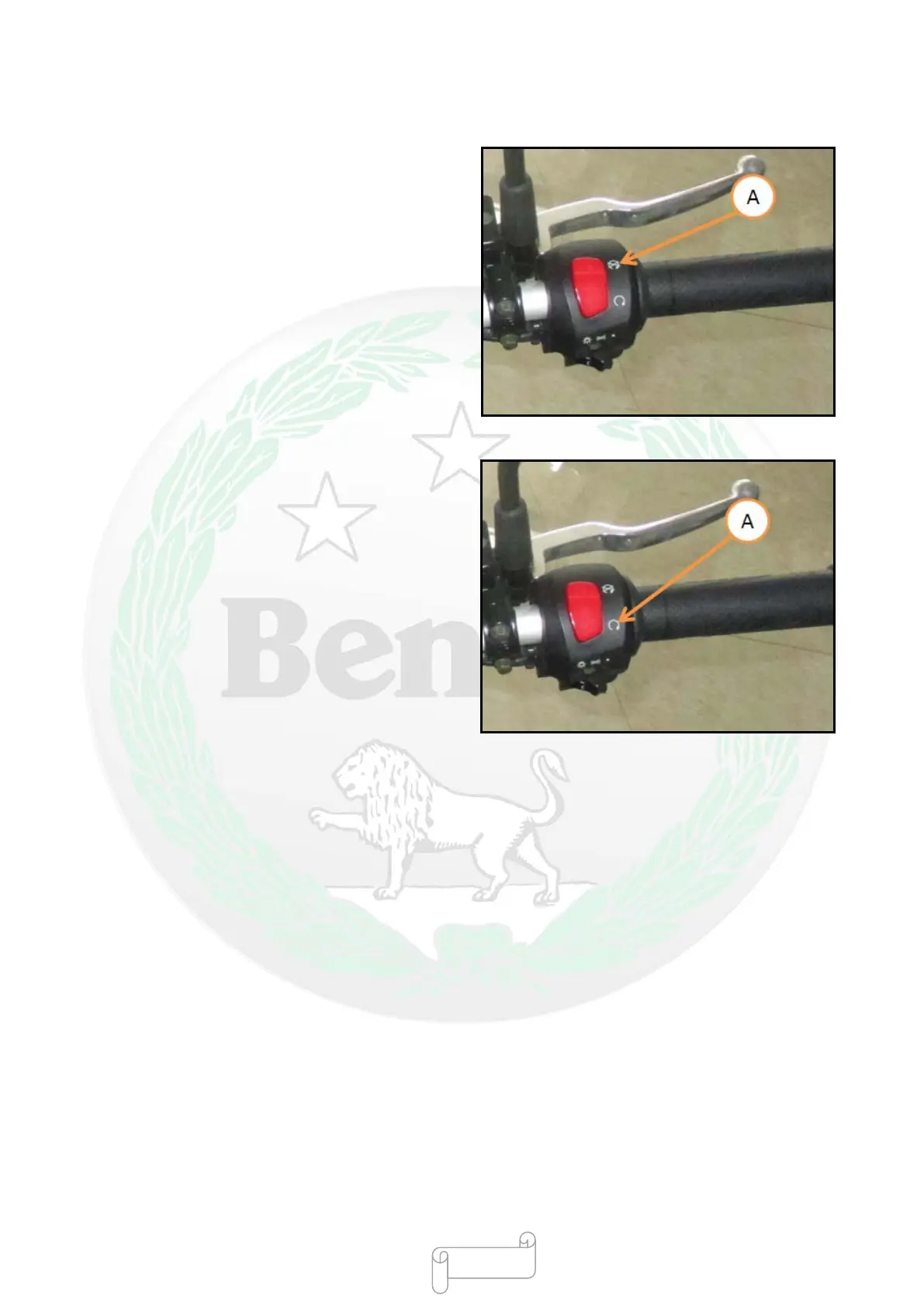

●Turn the emergency flameout switch to the stop
position [A].
●Press the starter button.
●At this time, the engine shall have not started.
If the engin
e has started, check or replace the
following parts:
Emergency flameout switch (see “Checking Switch” in
the “Electrical System” chapter).
Step 2
●Open the electric door lock.
●Set the gear as neutral.
●Turn the emergency flameout switch to the power
supply position [A].
●Press the starter button to start the engine.
●Turn the emergency flameout switch to the power-off
position.
●The engine shall stop running immediately.
If the engine does not stop, check or replace the
following parts:
Emergency flameout switch (see “Checking Switch” in
the “Electrical System” chapter).
- 88 -
