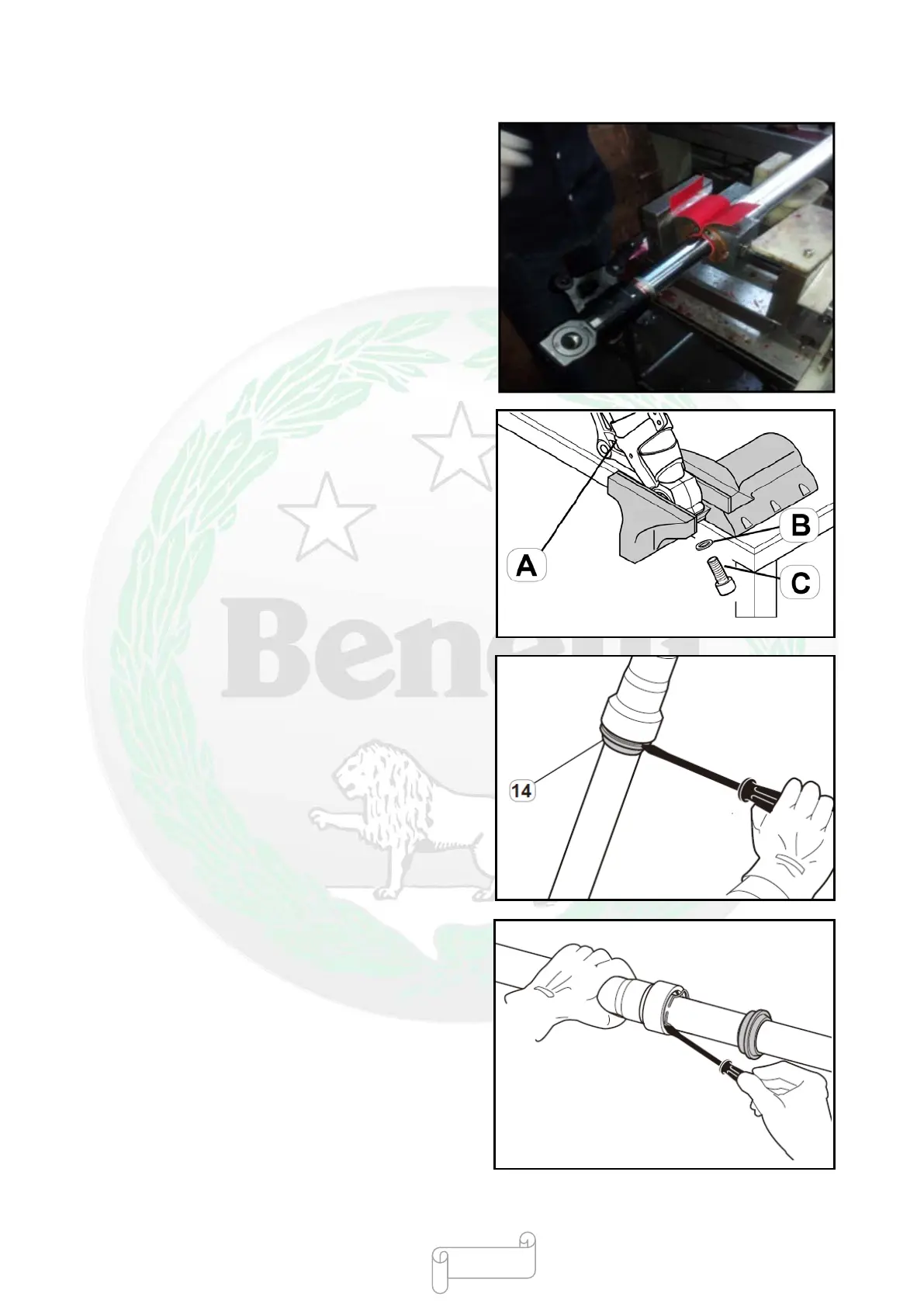

Disassembling Front Shock Absorber
●Remove the front shock absorber (see “Disassembling
Front Shock Absorber”).
●Discharge the shock absorber oil (see “Replacing
Shock Absorber Oil”).
●Clamp the inner pipe of shock absorber with the tool
.
●D
isassemble
Hexagon screw [C]
Washer [B]
Shock absorber mounting base [A]
Locking torque of hexagon screw at the bottom of
front shock absorber: 23 N·m
●Disassemble:
Dis
assemble the dust seal [14] from the outer pipe
using a small straight screwdriver
●Disassemble:
Disassemble the retainer ring using a small straight
screwdriver
- 348 -
