Benelli TNT125 Service Manual

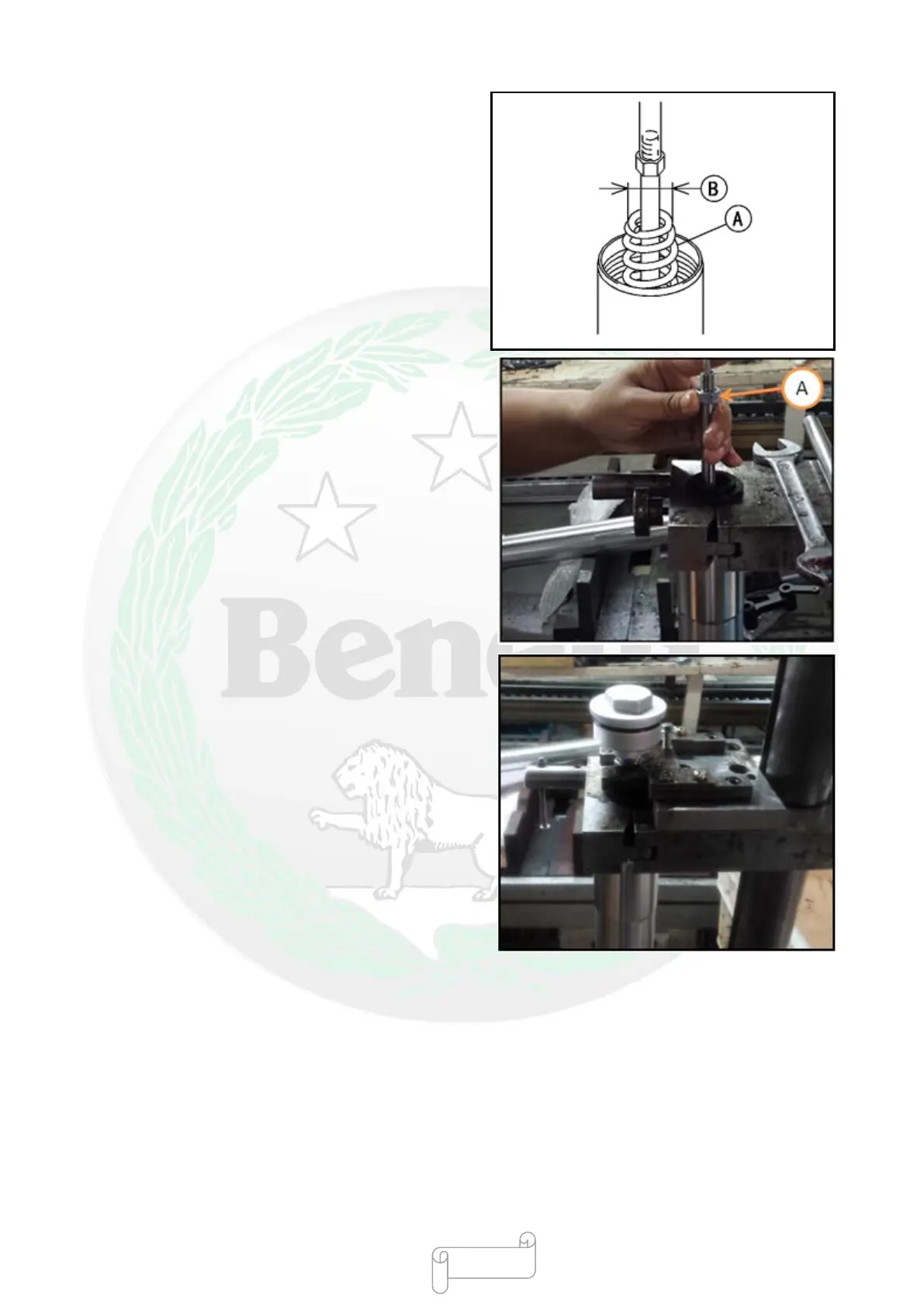

●Rotate the shock absorber piston rod puller to the end
of
piston rod.
Special Tool—Shock Absorber Piston Rod Puller:
●P
ull the puller above the top of outer pipe.
●Installing:
Adjusting sleeve,
Damper and other parts
Please replace with new parts!
●Fix the bolt at the top with a wrench and lock the
piston rod nut [A].
Locking torque of piston rod nut: 18-20 N·m
●Clamp the gasket by using the holder and loosen the
front shock absorber spring compressor nut.
●Remove the front shock absorber spring compressor
.
●
Pull up the outer pipe and cover the outer pipe with
the bolt at the top.
●Install the front shock absorber (see “Installing Front
Shock Absorber”).
- 347 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
