Benelli TNT125 - Rear Fender; Disassembling Rear Fender; Installing Rear Fender

Rear Fender

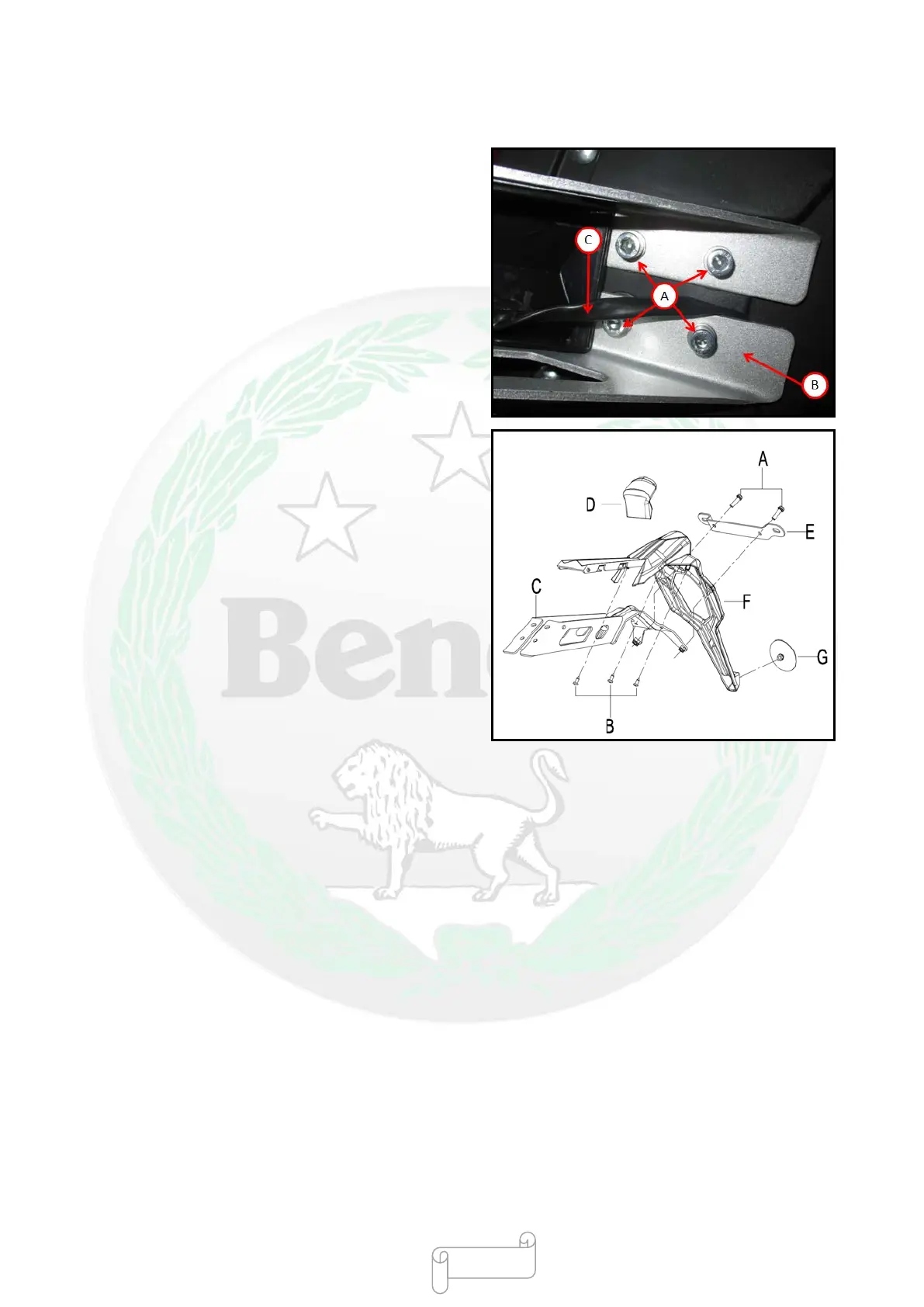

Disassembling Rear Fender
●Disassemble the screw [A] and then remove the rear
fender bracket from the frame
●Unplug the rear turn signal light and rear license plate
cable [C] connector
●Disassemble:
Screw [A]
Self-tapping screw [B]
Rear fender bracket [C]
Rear license plate light [D]
Rear license plate bracket [E]
Rear fender [F]
Rear reflector [G]
Installing Rear Fender
●Install it in reverse order of disassembly.
Torque of rear fender bracket fastening screw: 10
N·m
Torque of rear l
icense bracket fastening screw: 10
N·m
- 394 -
