Benelli TNT125 Service Manual

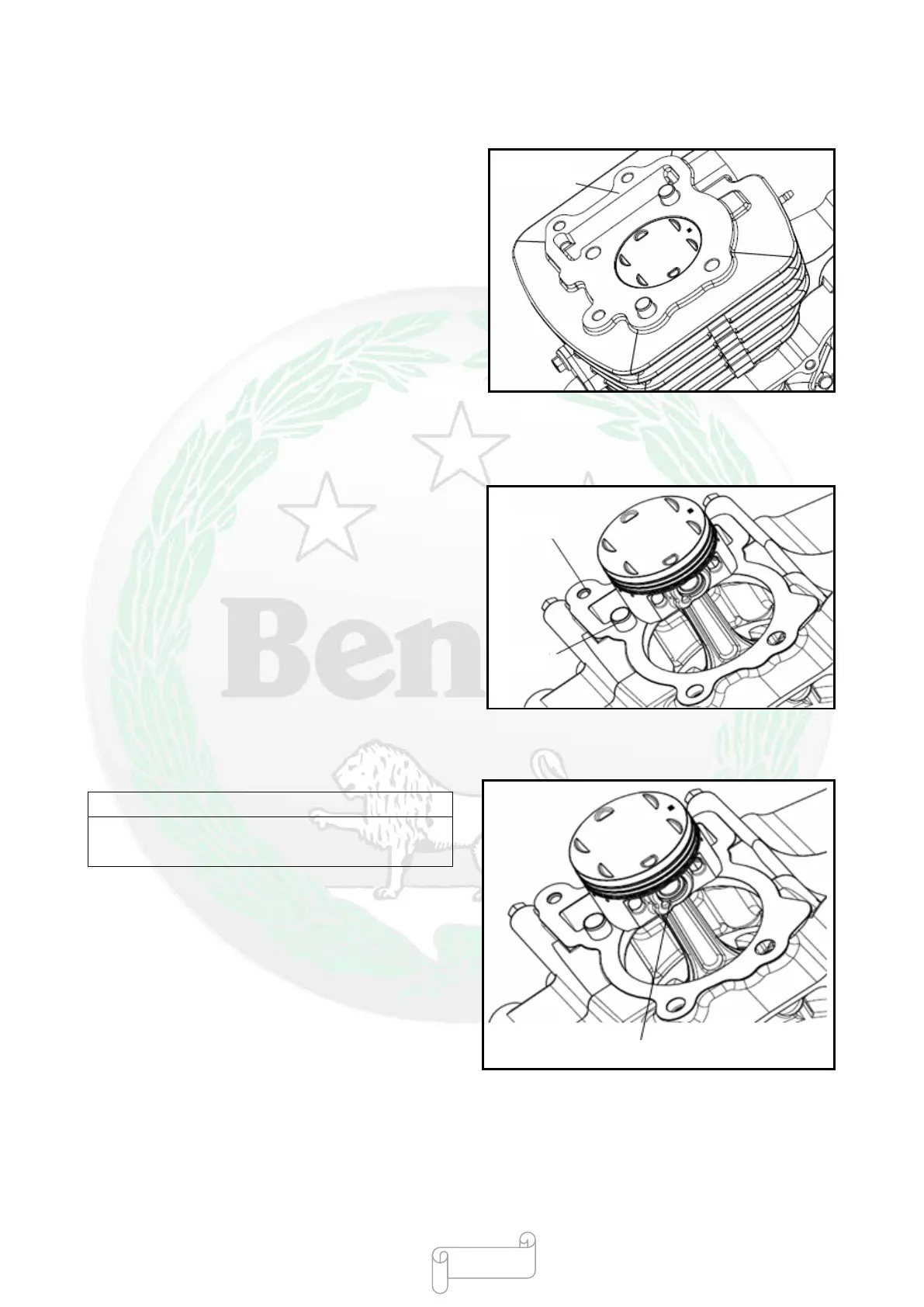

Cylinder Block
Disassembling
●Remove the cylinder block
Check
●Check the wear situation of inner wall of cylinder.
★
If the wear is serious, please replace it.
●Remove gasket and dowel pin.
Piston
Disassembling
●Remove the piston pin retainer.
Note
During disassembly, do not drop the retainer into the
crankcase.
●Take out the piston pin and remove piston.
Cylinder block
Gasket
Dowel pin
Pston pin retainer, piston pin
- 228 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
