Benelli TNT125 Service Manual

Calipers
Disassembling Front Calipers
●

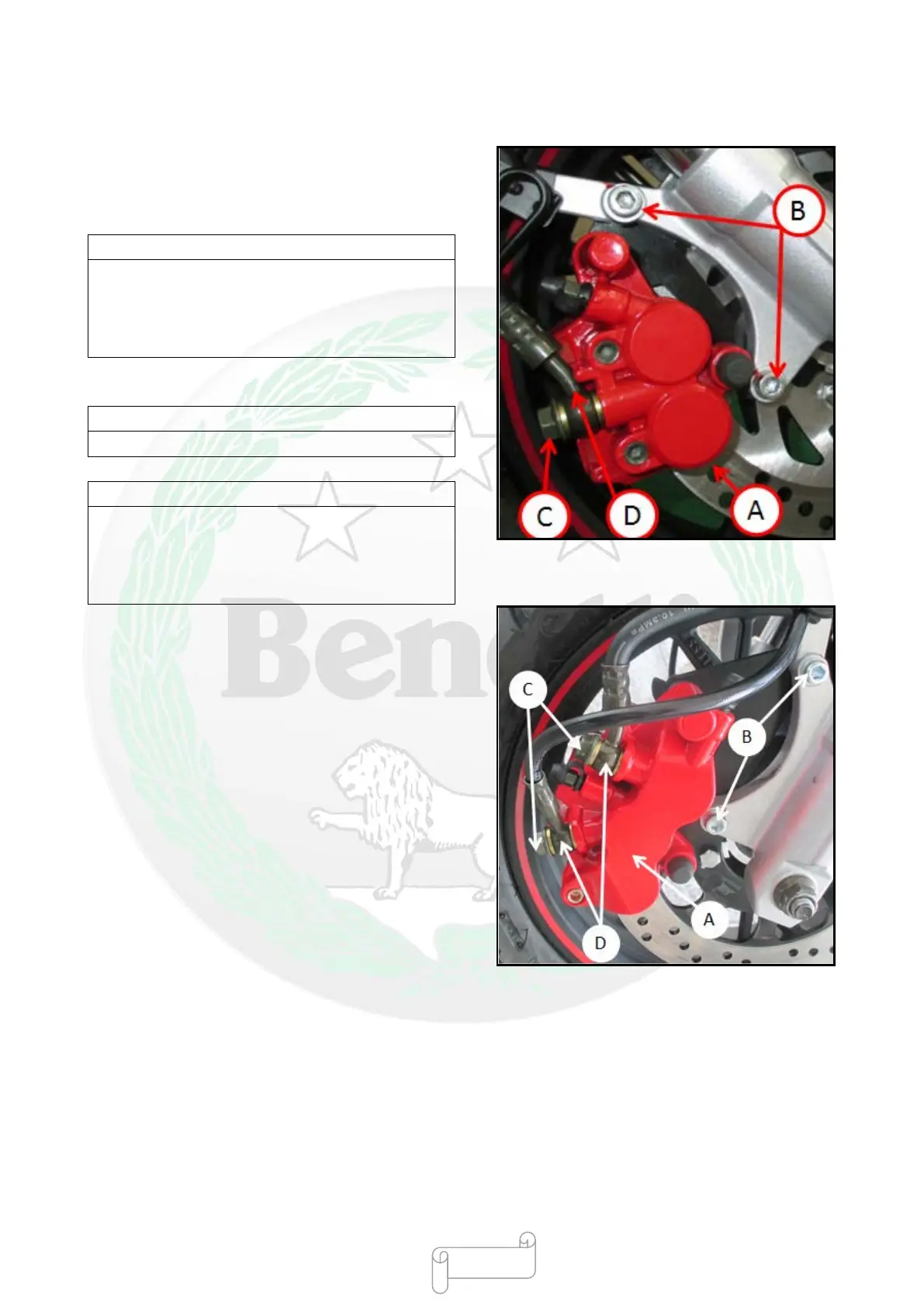

Loosen the hollow bolt [C] at the bottom of the brake
hose, and then tighten it slightly.
●
Remove the calipers mounting bolt [B], and separate
calipers [A] and the brake disc.
Note
Do not remove the calipers mounting bolts. To
remove calipers, simply remove the calipers
mounting bolt, because brake fluid may leak after
removing calipers mounting bolt.
●Remove hollow bolt and brake hose at calipers [D]
Note
If brake fluid spills out, please rinse immediately!
R
emark
○ If it needs to dismantle after removing the calipers
and there is no compressed air available, dismantle
the calipers before removing the brake hose (see
“Disassembling Front Calipers”).
●T
he front calipers of motorcycle with CBS is as
shown at right, and the disassembly is the same as that
of non-CBS.
- 321 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
