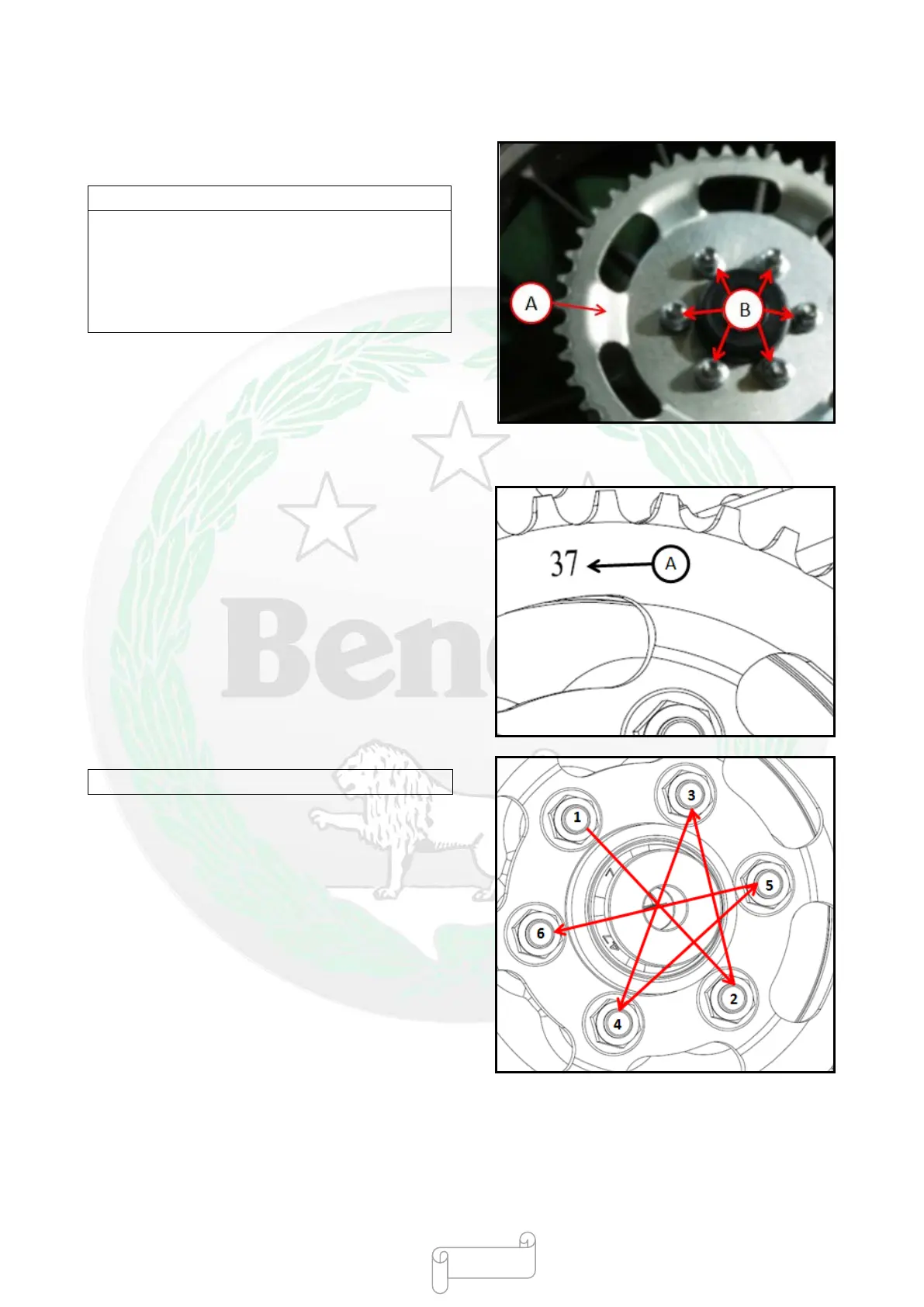

Sprocket, Shaft Sleeve, Shaft Sleeve Bearing
Disassembling Rear Sprocket
Disassembling rear wheel (see “Wheel /
Tire“Disassembling Rear Wheel”).
Note
Do not place the wheel on the ground
horizontally and make the brake disc towards,
otherwise, brake d
isc may be damaged or
deformed. Please place wood blocks below wheel,
to prevent brake disc from contacting the ground.
Disassemble:
R
ear sprocket nut [A],
Rear sprocket [B]
Installing Rear Sprocket
When installing the sprocket, the side with the sign of
number of teeth [A] should be towards the outside.
●Lock rear sprocket nut
.
L
ocking Torque of Rear Sprocket Nut: 45N·m
Install rear wheel (see “Wheel / Tire”“Installing
Rear Wheel”).
* Note
Fasten the nut in order.
- 306 -
