Benelli TNT125 Service Manual

Brake Lever, Brake Pedal
Checking the position of brake pedal

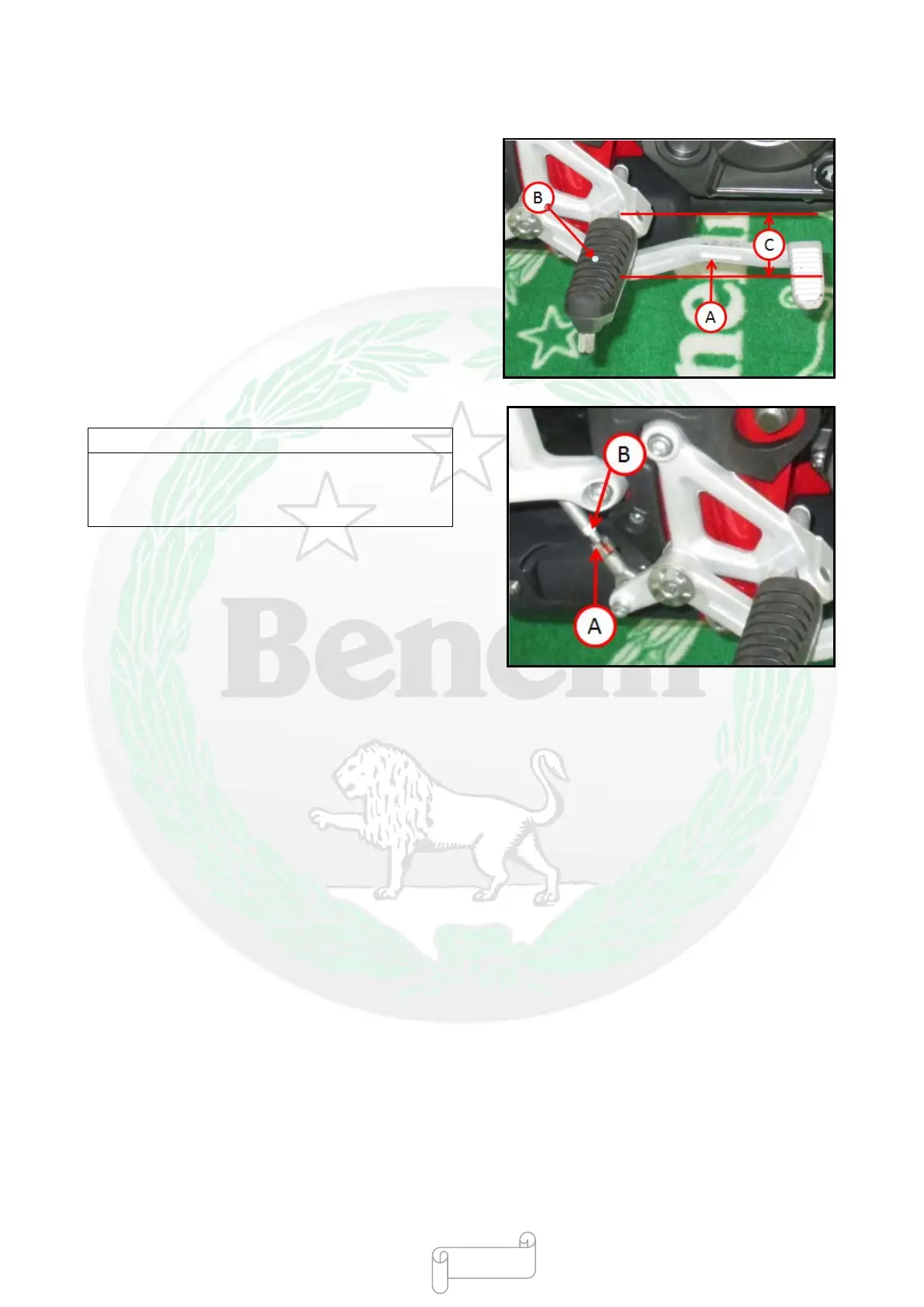

●Check whether the position of brake pedal [A] is
correct.
Footpeg [B]
Pedal position
Standard: About 45 mm below the top of footpeg
★
If the position of pedal is incorrect, adjust the
position of brake pedal
Adjusting the Position of Brake Pedal
Remark
○It is not necessary to adjust the position of pedal
normally, but if the lever locking nut is removed,
the position of pedal must be adjusted.
●Loosen the locking nut [A], turn the push rod [B],
m
ake the position of pedal correct.
●Locking torque:
Locking Torque of Push Rod Locking Nut of Upper
Rear Pump: 10 N•m
●
Check whether the brake lamp switch is normal (see
“Regular Maintenance”—
“Checking Whether the
Brake Lamp Switch is Normal”).
- 318 -
