Benelli TNT125 Service Manual

●

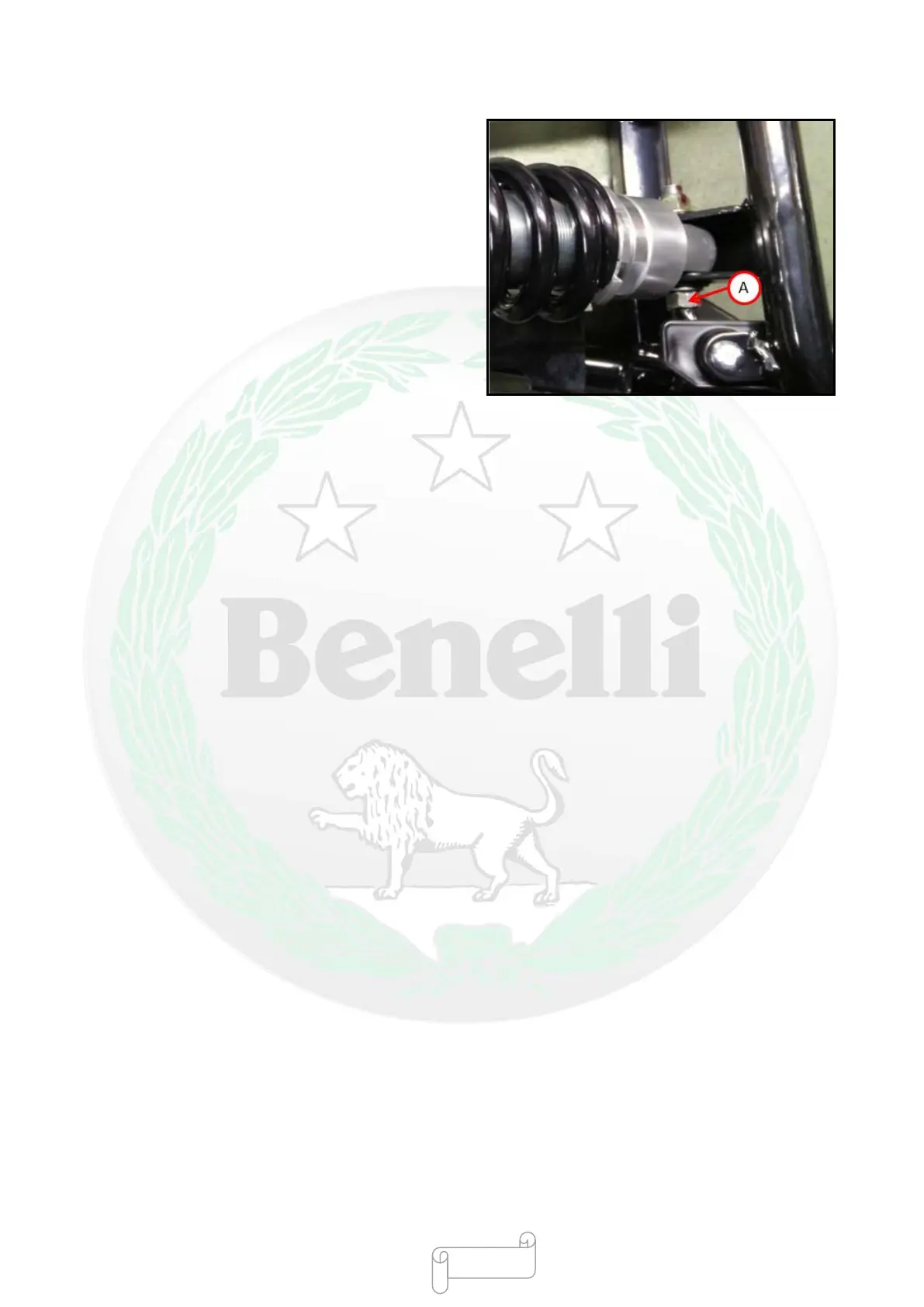

Remove the rear shock absorber clamp bolt [A] at the
lower side.
●Remove the shock absorber
.
Installing Rear Shock Absorber
●Locking torque:
Clamp bolt above rear shock absorber: 50 N·m
Clamp bolt below rear shock absorber: 50 N·m
Checking Rear Shock Absorber
●Remove the rear shock absorber (see “Disassembling
Rear Shock Absorber”).
●Visually checking:
Whether the travel is smooth;
Whether there is oil leakage;
Whether there is crack or dent
★If the rear shock absorber is broken, please replace
it!
●Visually check the rubber bushing.
★If the rubber bushing is broken, please replace it!
- 353 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
