Benelli TNT125 Service Manual

Preparation Information
Overview
This section includes the services of kickstarter
lever component and kickstarter component.
When removing and storing parts, mark them to
make sure they are reinstalled in their original
positions.
The disassembled parts need to be cleaned.
When disassembling the kickstarter component, be
careful not to damage the matching 1st Gear of
auxiliary shaft.
Technical Parameters
Torque Value
Mounting bolt of kickstarter lever
and kickstarter component
22N•m
Kickstarter Mechnism

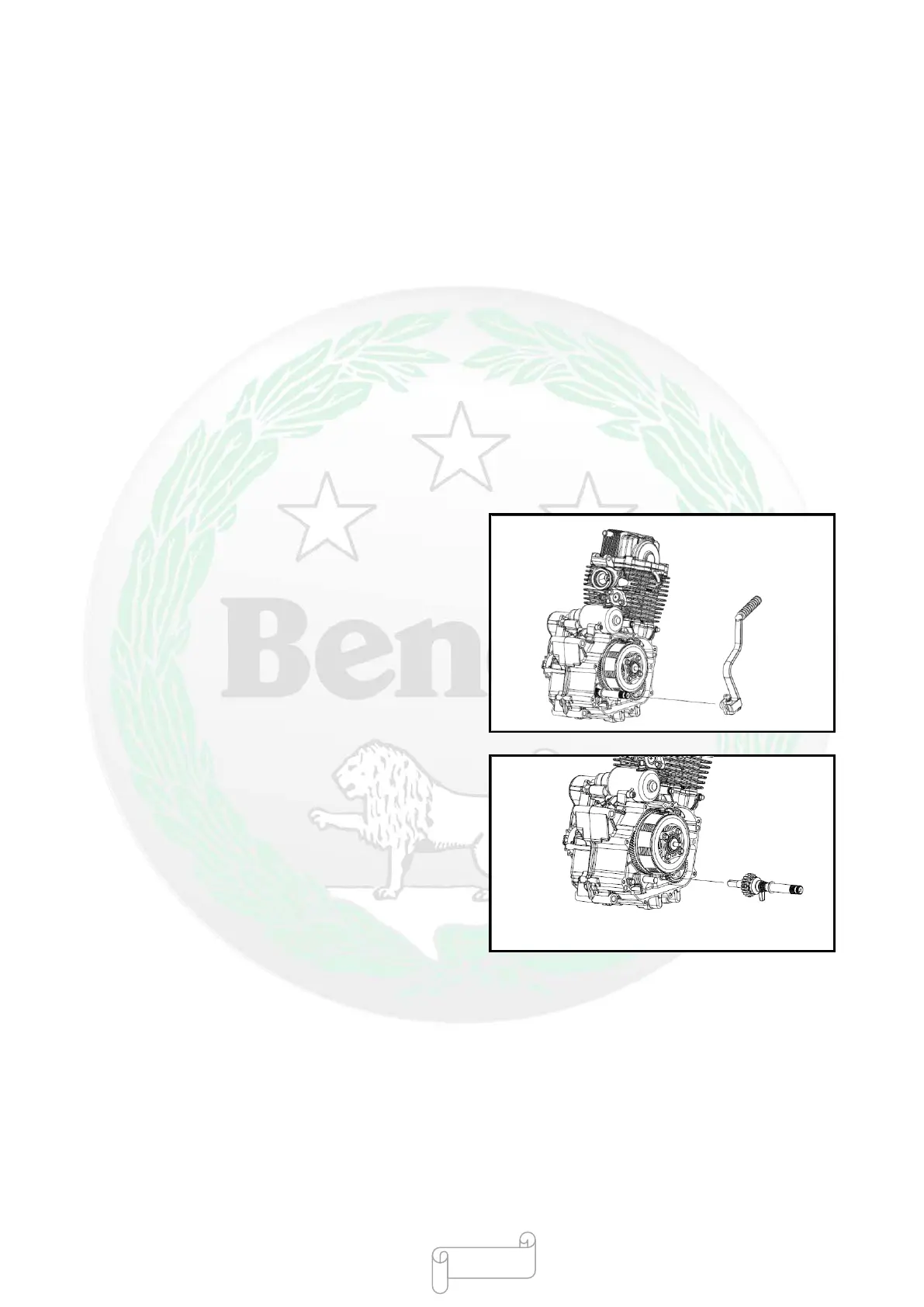

Disassembling Kickstarter Mechanism
●Loosen M8 bolt using tools to remove kickstarter
lever component.
●Remove kickstarter component from the engine.
- 256 -
