Benelli TNT125 Service Manual

Preparation Information
Overview
This section includes the services of cylinder head
cover component, cylinder head cover gasket and bolts.
When removing and storing parts, mark them to
make sure they are reinstalled in their original
positions.
The disassembled parts need to be cleaned.
When removing the cylinder head cover, be
careful not to damage the matching cylinder head joint
surface.
Cylinder cover fixing bolt 12N•m
Cylinder head cover

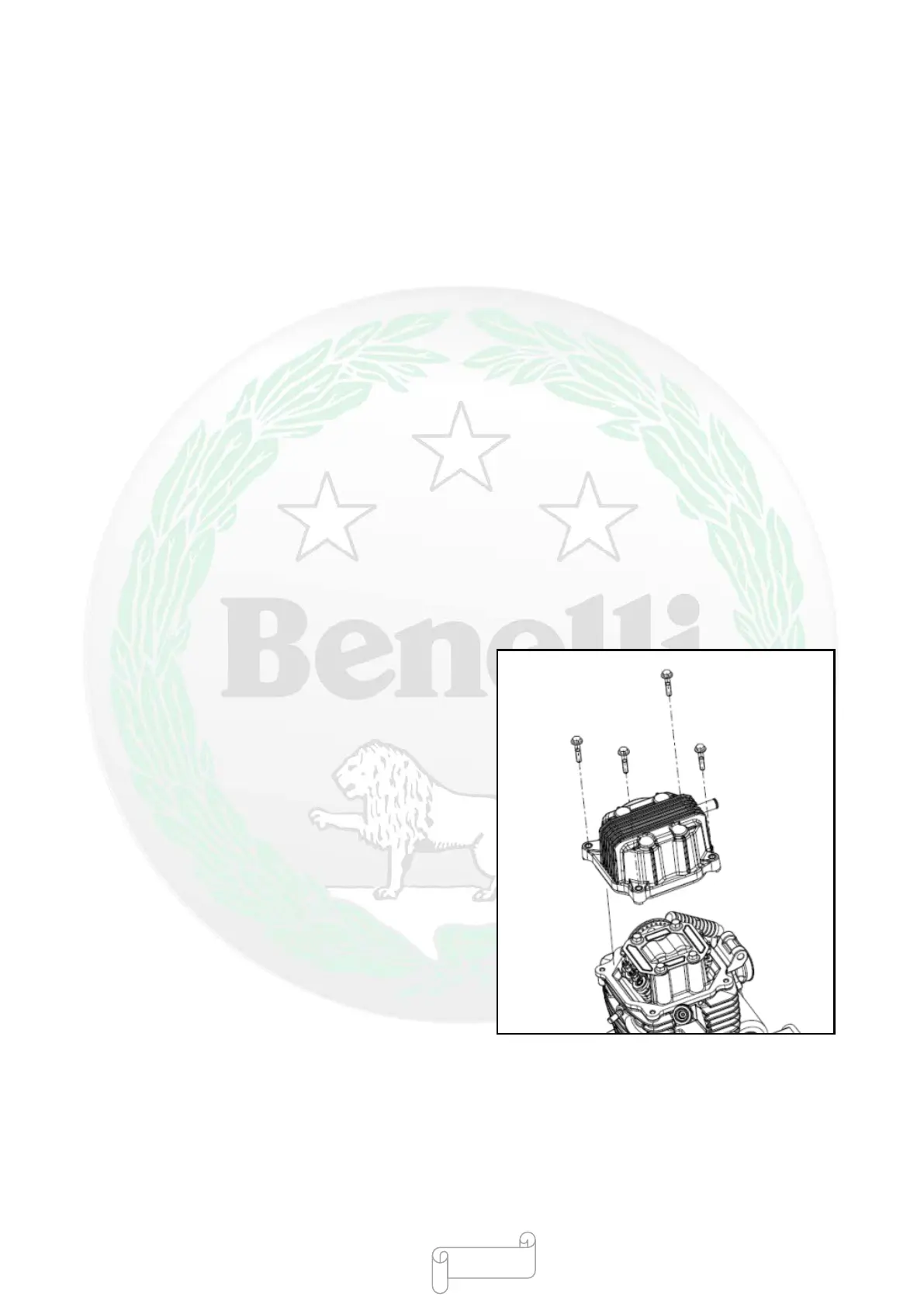

Remove cylinder head cover
● Remove the four bolts securing the cylinder
head cover in turn and remove the cylinder head cover
assembly from the engine
Technical Parameters
Torque Valve
Mounting bolt of cylinder
head cover
12N•m
Cylinder Head Cover
Disassembling Cylinder Head Cover
●
Remove the four bolts used for fixing cylinder head
cover in turn, and remove the cylinder head cover
component from the engine.
- 253 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
