Left Rear Pedal

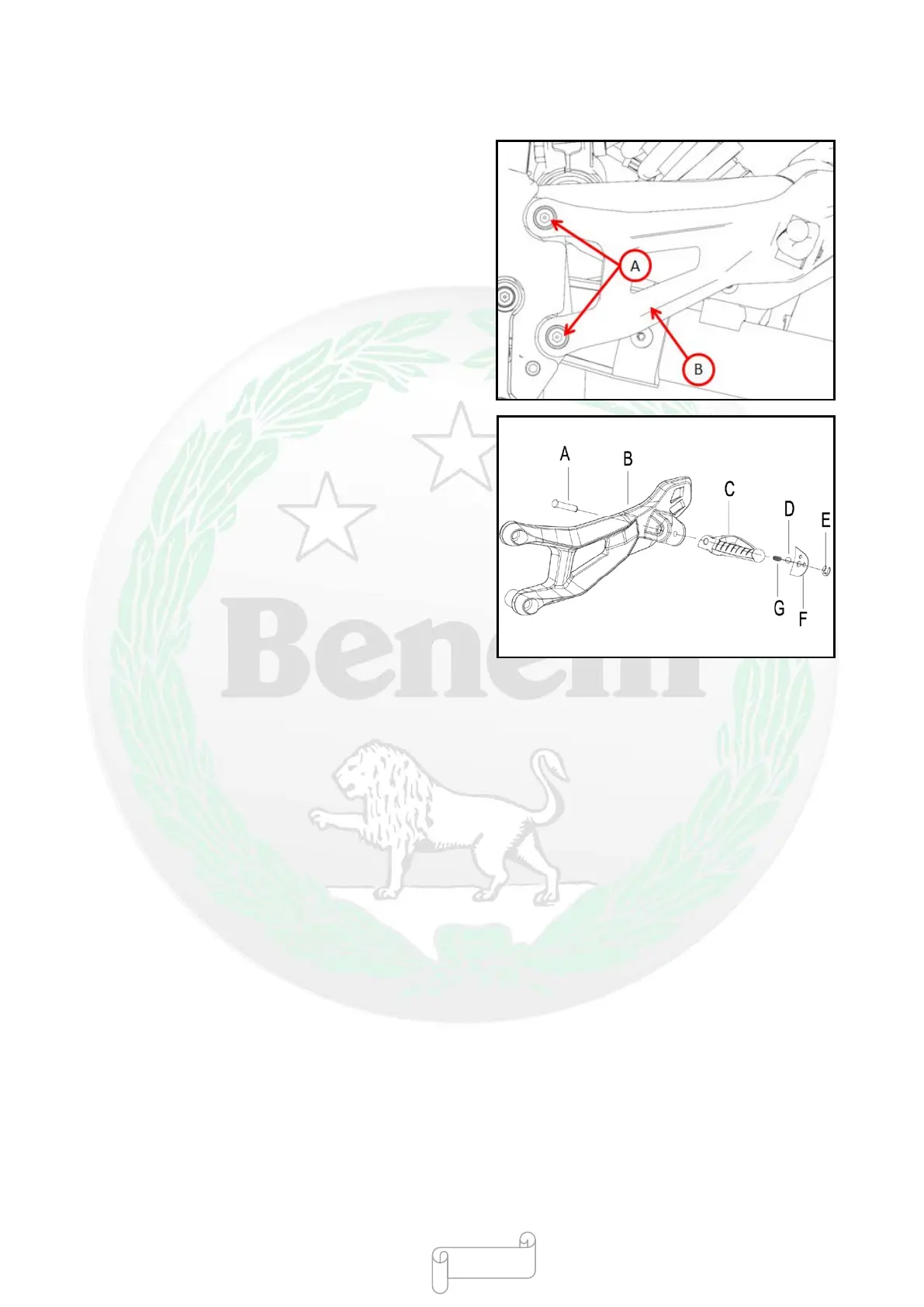

Disassembling Left Rear Pedal
Disassemble:
Screw [A]
Left rear pedal bracket [B]
●Disassemble:
Pedal mounting pin [A]
Left rear pedal bracket [B]
Left rear pedal [C]
Pedal ball [D]
Retainer [E]
Pedal installing plate [J]
Pedal Spring [G]
Installing Left Rear Pedal
●
Before installation, apply the grease to the pedal
mounting pin.
●Install it in reverse order of disassembly.
Locking torque:
Mounting screw of left rear pedal bracket: 22N·m
- 401 -
