Benelli TNT125 - Checking Gearshift Mechanism; Installing Gearshift Mechanism

Checking Gearshift Mechanism
●Check the gear lever for bending, wear and damage
●Check if there is any damage to the spring of the shift
lever and the elasticity is weakened. Replace if
necessary.
Installing Gearshift Mechanism
●Tighten the start wheel bolt after assembling
gearshift start wheel.
○Tightening torque: 12N•m; apply locking agent at the
threads.
●Align the rocker spring head with the notch on the
positioning roller rocker and tighten the positioning
roller rocker bolt.
○ Tightening torque: 10N•m.

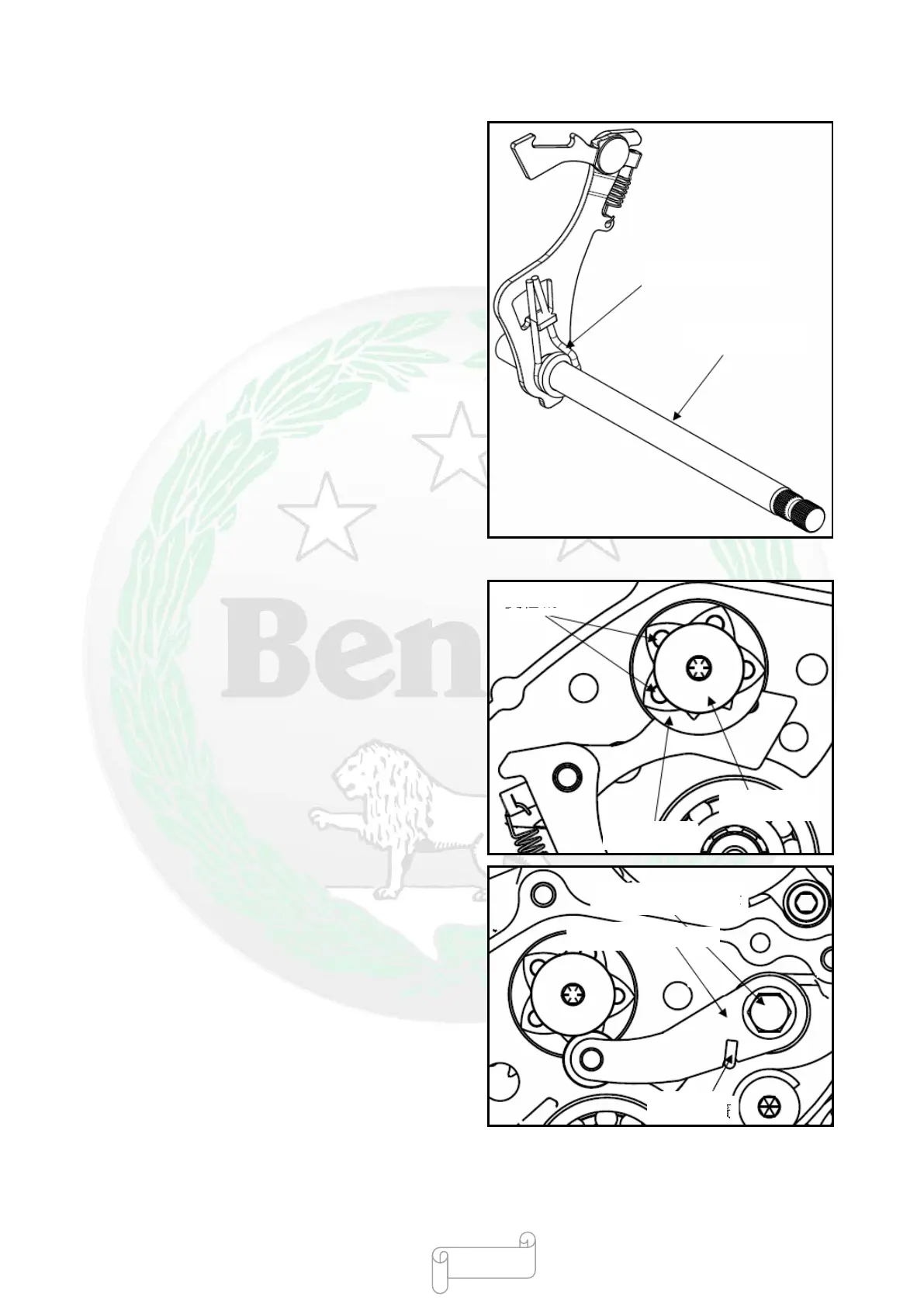

Gearshift spring
Gearshift
Gearshift pin I
Star wheel bolt
Gearshift start
wheel
Positioning roller rocker
bolt
Positioning roller rocker
Rocker
spring
- 261 -
