Benelli TNT125 Service Manual

than 1mA.
Fault Determination and Characteristic of Output Resistance
Fault performance:
This will have a large impact on start-up, because
the ECU cannot monitor the temperature of engine or
achieve accurate fuel injection.
General faults are caused by the looseness of
connection plug-
in or the falling of the pin on the
plug-
in. The sensor can only be replaced with that of
the same model.
Internal resistance measurement: Disconnect with
cable;

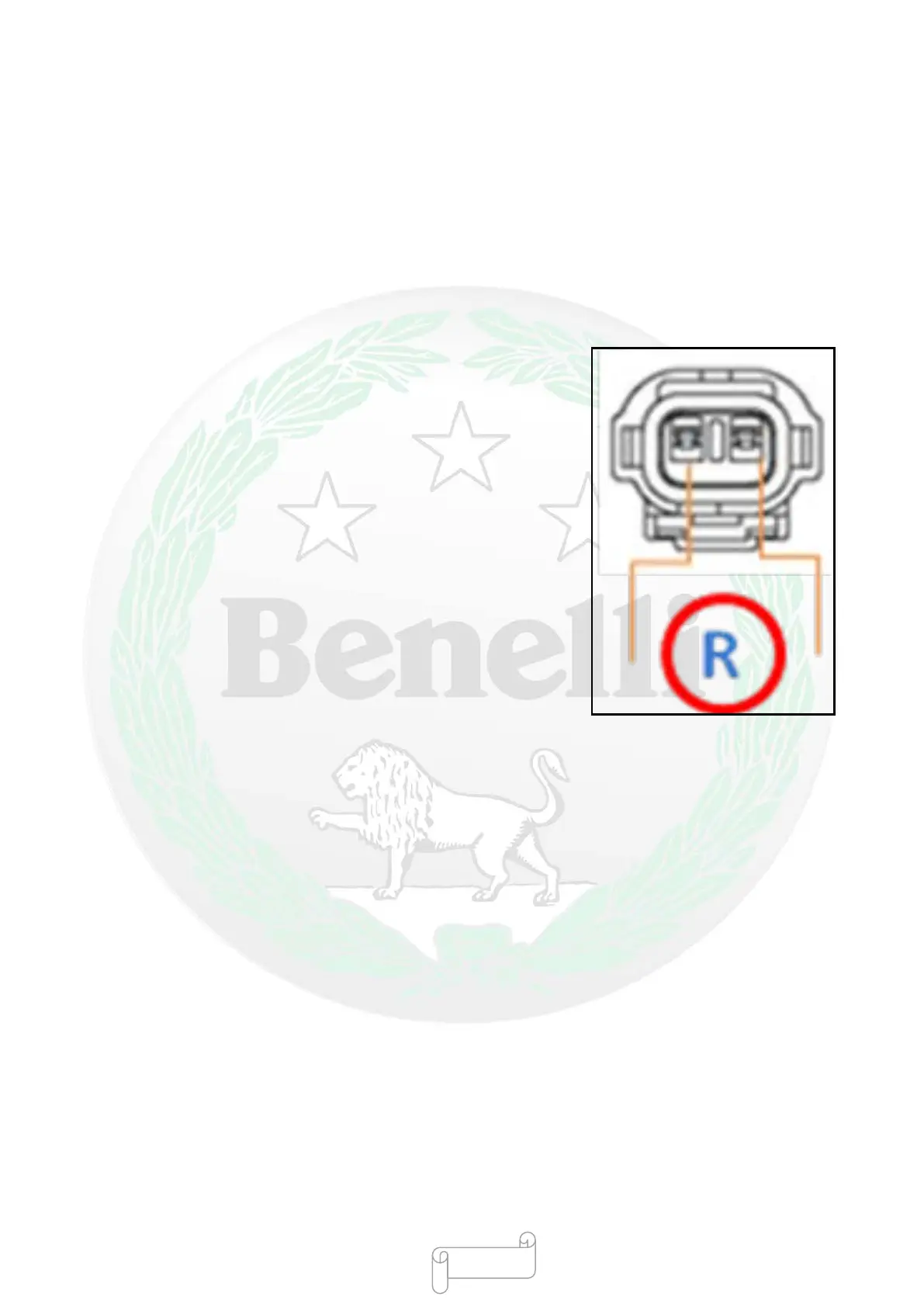

Measure the resistance between Pin 1 and Pin 2 with
a multimeter (as shown in the figure)
Standard: 25
℃
: 1.9-2.1KΩ
100
℃
: 0.179-0.187KΩ
Otherwise, the sensor fails
- 172 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
