Benelli TNT125 Service Manual

Introduction to EFI
This motorcycle adopts the
small engine EFI
(electronic fuel injection) system of Delphi
Corporation. This system achieves closed-loop control,
ECU fuel injection and ignition control through oxygen
sensor. Three-way catalytic converter is used to handle
the gas after the combustion of engine, to convert it into
harmless gas and discharge it to the atmosphere. This
system uses closed-loop control self-learning system,
which can effectively eliminate the manufacturing
differences of system and related mechanical parts,
improve the overall consistency of the motorcycle, and
eliminate the error of motorcycle caused due to wear
and other causes after actual use.

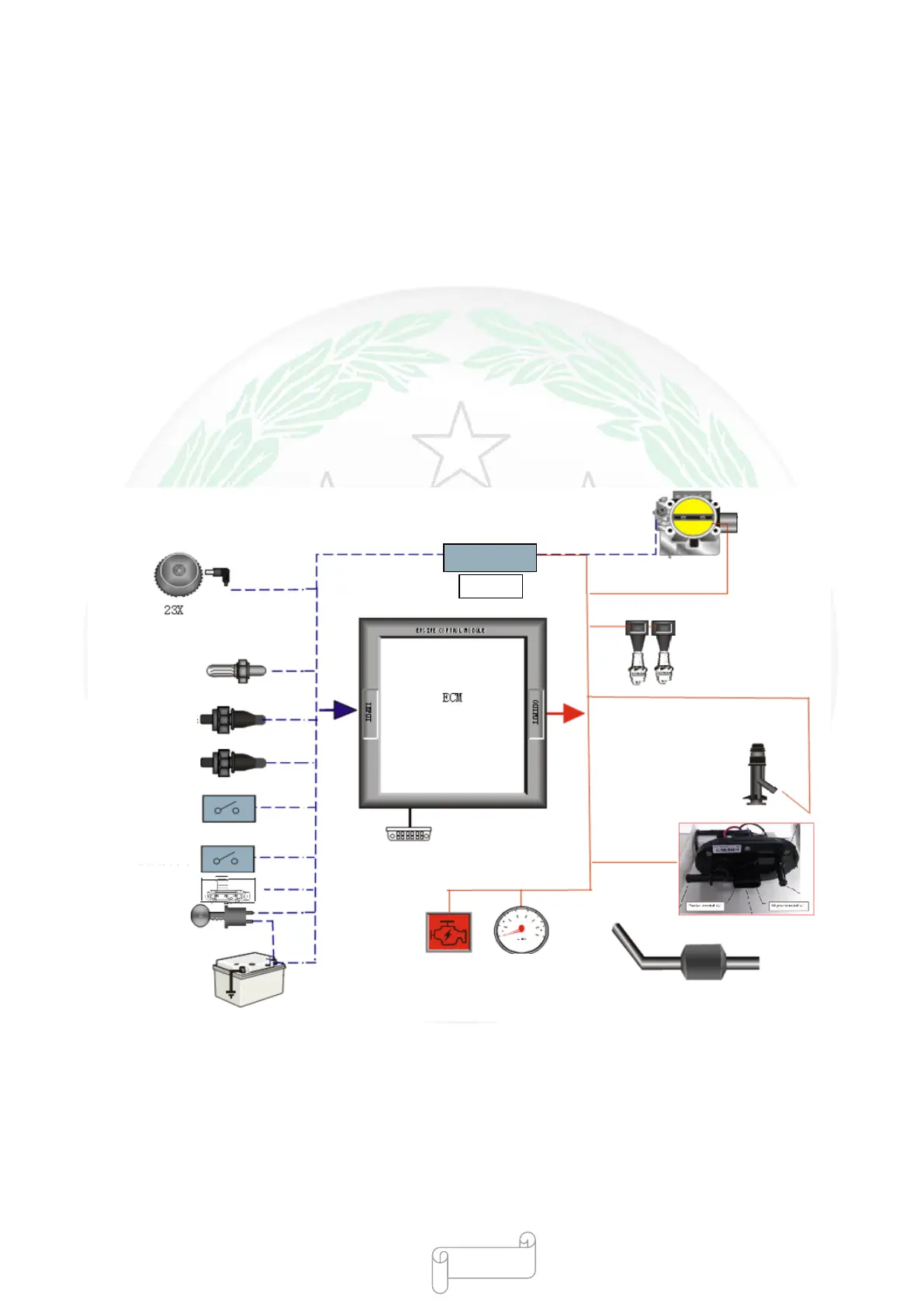

Crankshaft
position sensor
Crankshaft position
target wheel
Heating type
oxygen sensor
Engine temperature
sensor
Intake temperature
Neutral switch
Tipping switch
Intake pressure
sensor
Ignition switch
Storage battery
Burglar alarm
Optional
Engine control
module
Fault diagnosis switch
Serial communication interface
Fault indicating
lamp
Engine rotation
speed signal
Throttle position
sensor
Idle speed control
valve
Throttle
Ignition coil
Nozzle
Metal carrier catalytic
converter
- 122 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
