Benelli TNT125 Service Manual

Fuse
Disassmbling Fuse
●Disassemble the front seat cushion (see “Frame” –
“Disassembling Seat Cushion”)

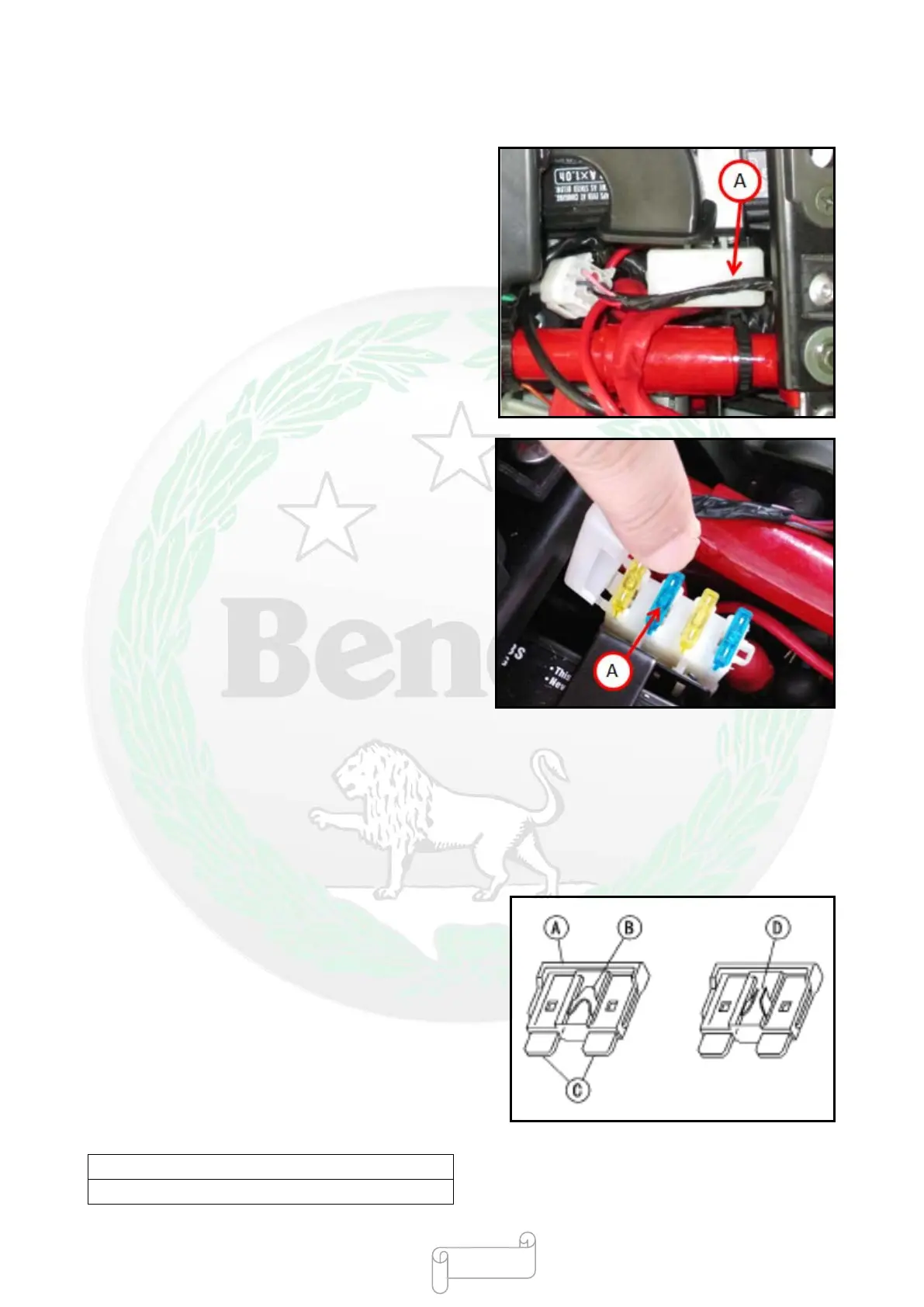

○Fuse box [A]
●Open the clip, lift the cover and fuse [A] of use box
●Use sharp-
nose pliers to pull the fuse out of the fuse
straightly
Installing Fuse
★If there is a fault on the fuse during operation, check
the electrical system to determine the cause, and then
replace the fuse with a new one with suitable ampere
●Install the fuse box at the original position of cover
according to the regulations
Checking Fuse
●Disassemble the fuse (see the section of disassmbling)
●Check the fuse parts
★
If the fuse is blown out, replace the fuse. Before
replacing the blown fuse, check the amperage of the
affected circuit. If the amperage is equal to or greater
than the rated current of the fuse, check the circuit and
related parts to see whether they are short-circuited
Shell [A]
Fuse part [B]
Connector [C]
Blown fuse [D]
Note
○If the charging quantity of battery is insufficient
- 463 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
