Benelli TNT125 Service Manual

Checking Fuel Evaporation and Recovery System (Chinese, European and US Models)
●Remove the canister according to the following steps.
○Remove the seat cushion (see “Seat Cushion
Disassembly” in “Frame” chapter).
○Remove the left and right covers (see “Cover
Disassembly” in “Frame” chapter).
○
Remove the fuel tank cover (see “Cover
Disassembly” in “Frame” chapter)
○
Remove the fuel tank (see “Fuel Tank Disassembly”
in “Fuel tank” chapter)
○Remove the air filter (see “Air Filter Disassembly”
in “Frame” chapter).
○

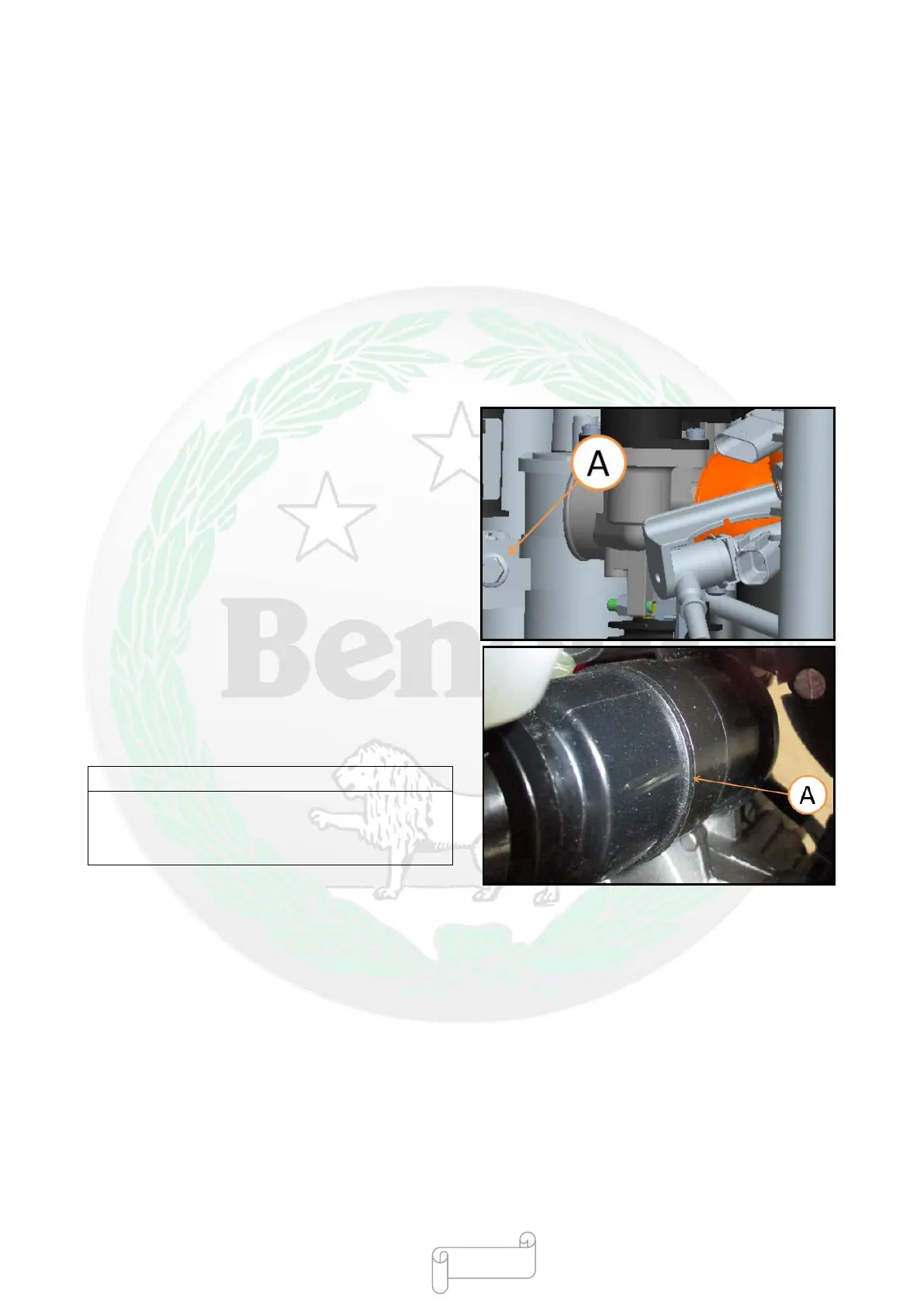

Remove the bolt [A] used for fixing canister
.
○Remove the canister
[A] and take the hose used to
connect canister down.
○Check whether there are cracks or other damages on
the canister.
★If any, it shall be replaced with a new one.
Remark
○If the canister is used under normal situations, it
can be used normally within the service lift of the
motorcycle without maintenance.
●Remove the canister solenoid valve according to the
following steps.
○
Remove the seat cushion (see “Seat Cushion
Disassembly” in “Frame” chapter).
○
Remove the left and right cover (see “Cover
Disassembly” in “Frame” chapter).
○
Remove the fuel tank cover (see “Cover
Disassembly” in “Frame” chapter)
○
Remove the fuel tank (see “Fuel Tank Disassembly”
in “Fuel tank” chapter)
○Remove the air filter (see “Air Filter Disassembly”
in “Frame” chapter).
- 59 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
