Wheel (Rim)
Disassembling Front Wheel

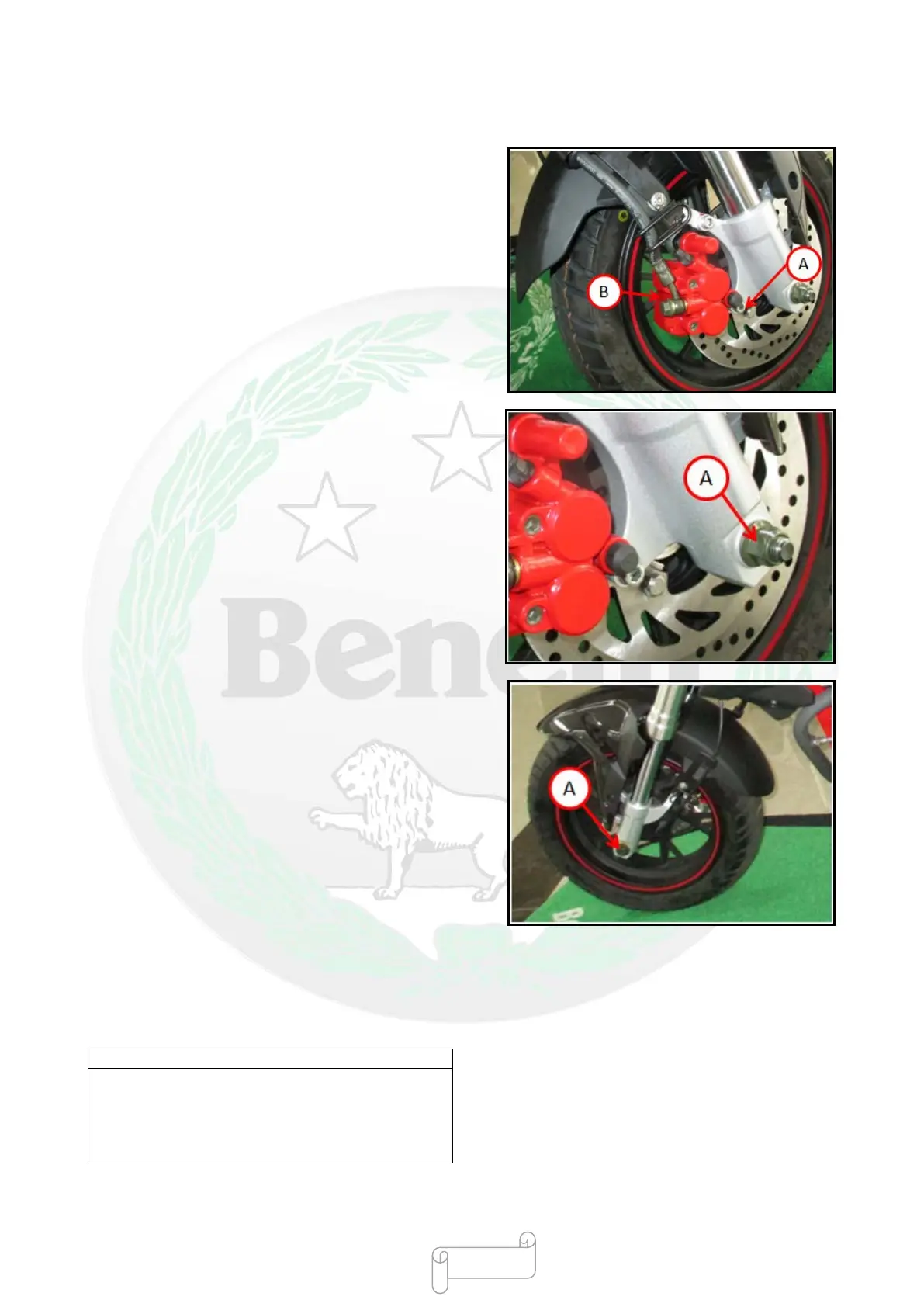

●Disassemble:
Front calipers mounting bolt [A]
Front calipers [B]
●Loosen:
Shaft tightening nut [A] (right side),
Front shaft [A],
● Disassemble the fairing at the lower part (see
“Frame”—“Disassembling Lower Fairing”).
● Lift the front wheel from the ground using a jack.
Special Tools—jack and jack accessories:
●
Disassemble shaft, pull out shaft to the right, and
separate front wheel from front fork.
Please do not place the motorcycle in the side
direction or press wheel against brake disc,
otherwise, brake disc may be damaged or
deformed. Please place wood blocks below wheel,
to prevent brake disc from contacting the ground.
