Checking Accuracy of Headlight
●Check the accuracy of headlights beam.
★
If the headlight bea
m lights up one side instead of
straight front, adjust the beam.
Adjust the beam of front headlights correctly according
to the following steps:

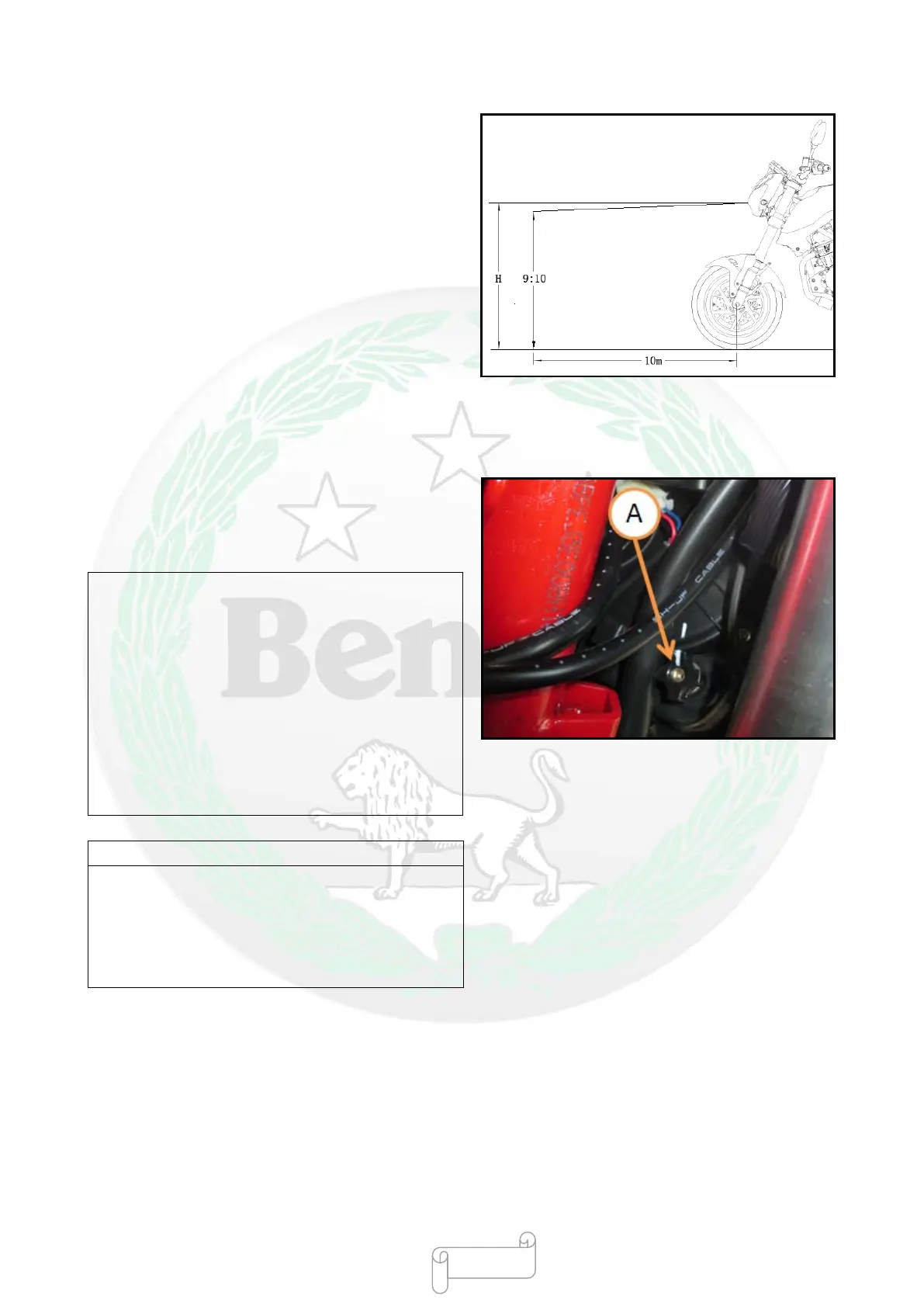

Park the motorcycle about 10 meters away from the
upright wall on the completely flat ground.
Ride the motorcycle and sit at the rider position.
Make sure that the highest point of beam is lower than
1/10 of horizontal axis of headlights if the wall is
lighted.
If the beam does not fall within these scopes, make
some adjustment to maintain it at the correct position.
Adjustment of Headlight Beam
●Turn the adjusting screws [A] in two headlights inward
or outward until the beam lights up the front straightly.
★If the lighting position of headlights beam is too low
or too high, adjust the vertical beam.
Rotating screw at the top left corner
If the screw is rotated counterclockwise, the beam
will be lowered
If the screw is rotated clockwise, the beam will be
risen
Rotating screw at the top left corner
If the screw is rotated counterclockwise, the beam
will light up the left side
If the screw is rotated clockwise, the beam will light
up the right side
Remark
○
When the motorcycle is supported by its wheels and
someone rides on the motorcycle, the brightest point
shall be slightly lower than the horizontal line after
opening the high beam. Adjust the angle of headlights
in accordance with the local regulations
- 87 -
