Benelli TNT125 Service Manual

(C): 30 N·m
Tightening torque of handlebar mounting bolt
(C): 22-34 N·m
●Check the steering gear again.
★
If the steering gear is still too tight or loose, readjust
it.
●Install the handlebar (see “Installing Handlebar” in
the “Steering Gear” chapter).
Applying Lubricant to Steering Column Bearing
●Remove the steering column (see “Disassembling
S
teering Column and Steering Column Bearing” in the
“Operating System” chapter).
●Clean the ball bearings in the upper and lower holders
with the solvent with a high flash point and wipe up the
upper and lower outer rings. The outer ring is pressed
into the first section of steering column.
Clear the
grease and dust.
●

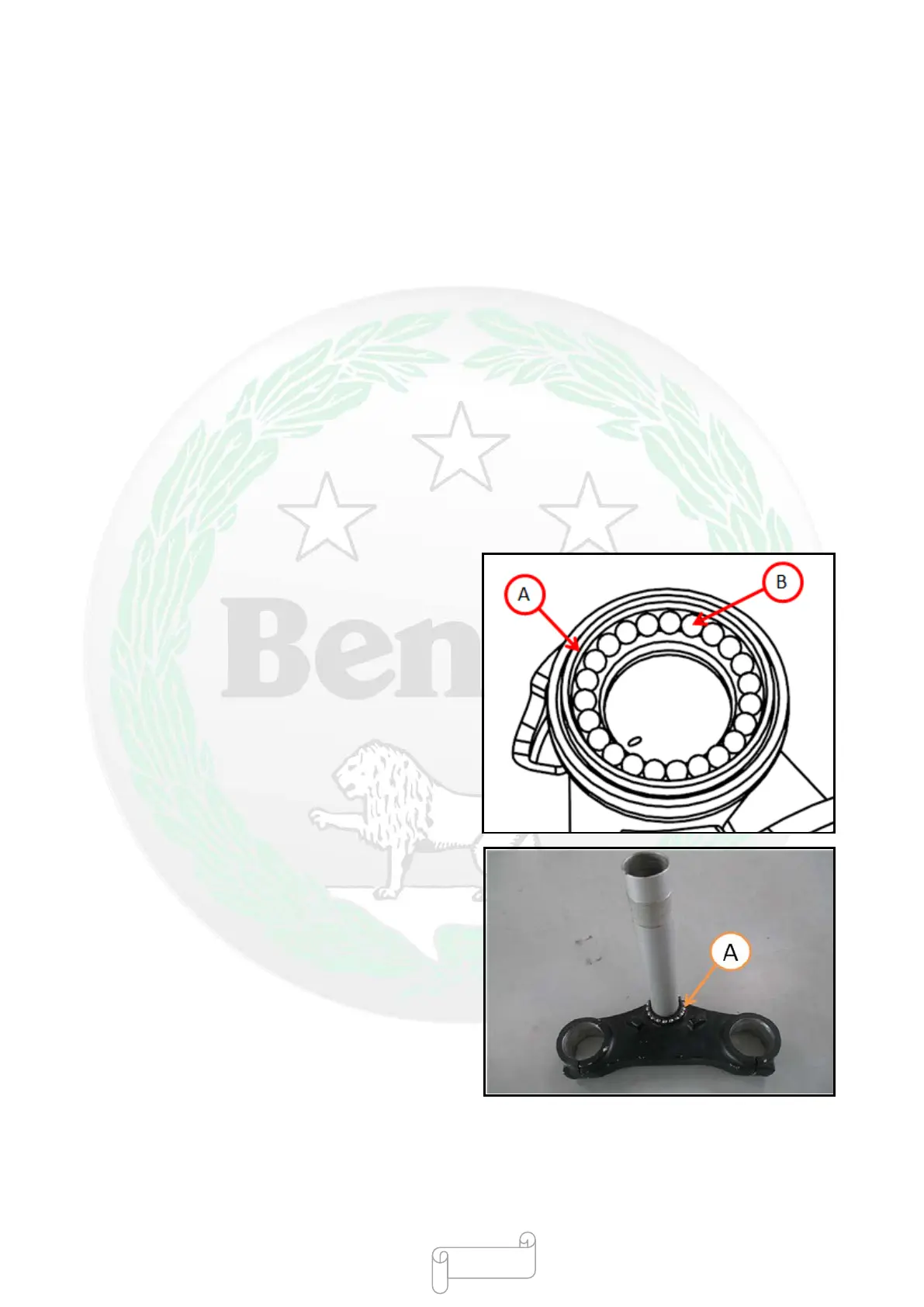

Visually check the outer ring [A] and ball bearing [B].
★
If the bearing components have been worn or
damaged, they must be replaced.
●Wrap the upper and lower ball bearings [A] inside the
holder with grease and then apply a thin layer of grease
to the upper and lower outer rings.
●Install the steering column (see “Installing Steering
Column and Steering Column Bearing” in the
“Operating System” chapter).
●Adjust the steering gear (see “Adjusting Free Steering
C
learance”).
- 81 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
